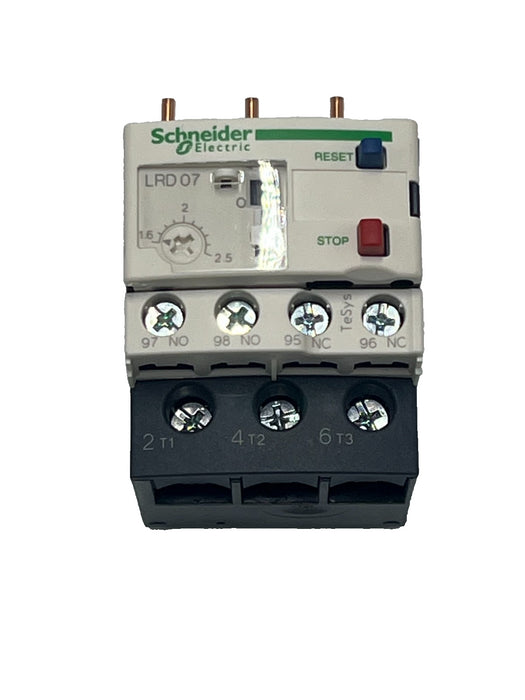

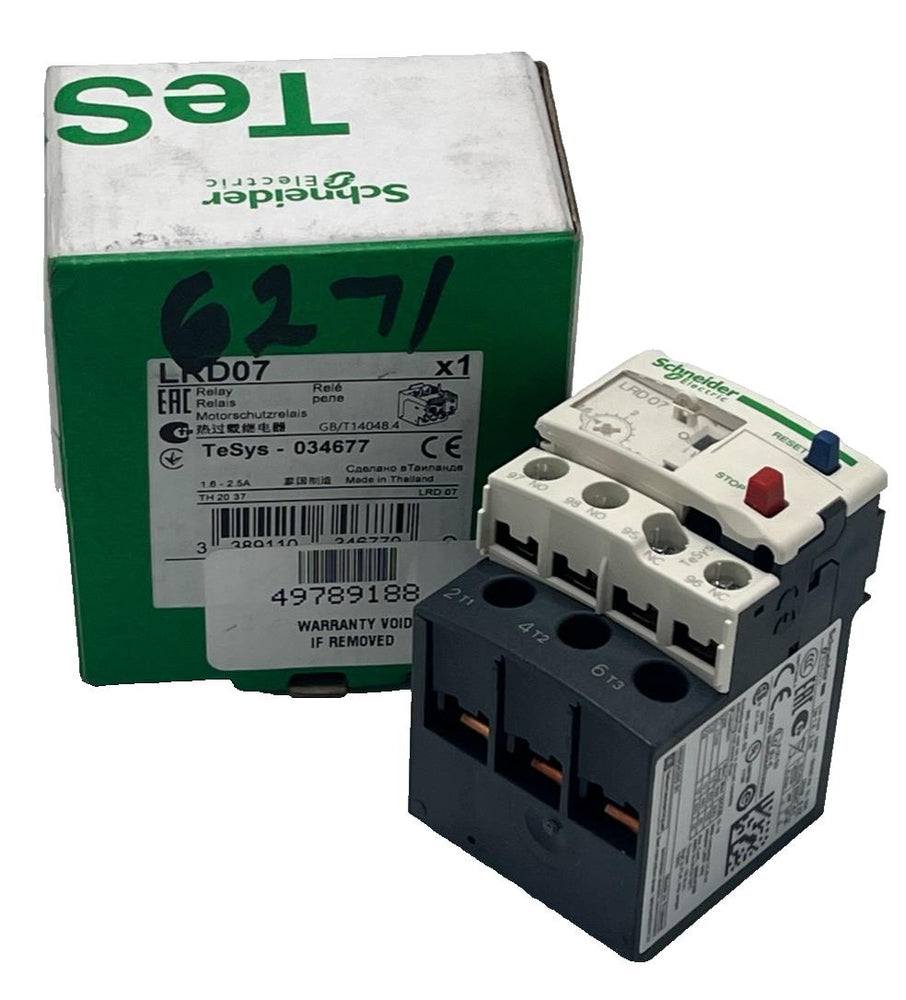

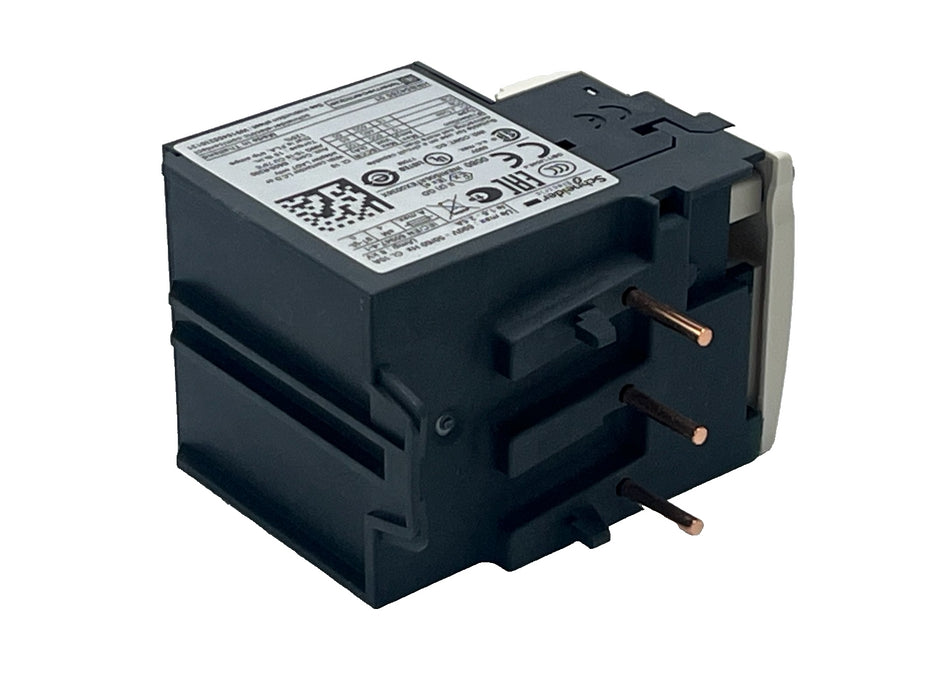

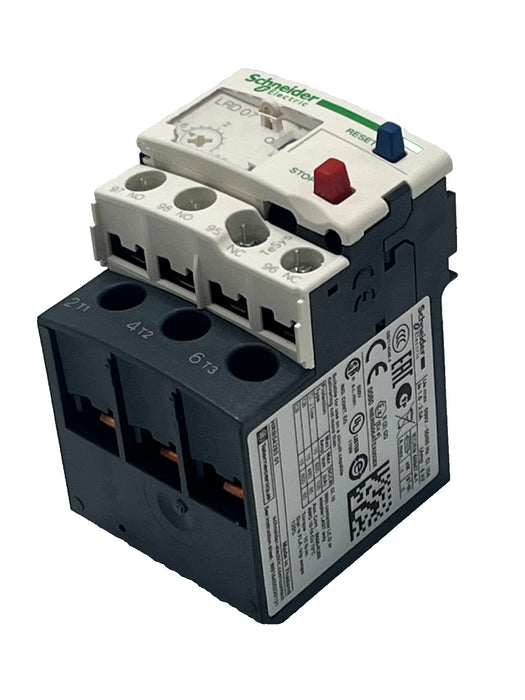

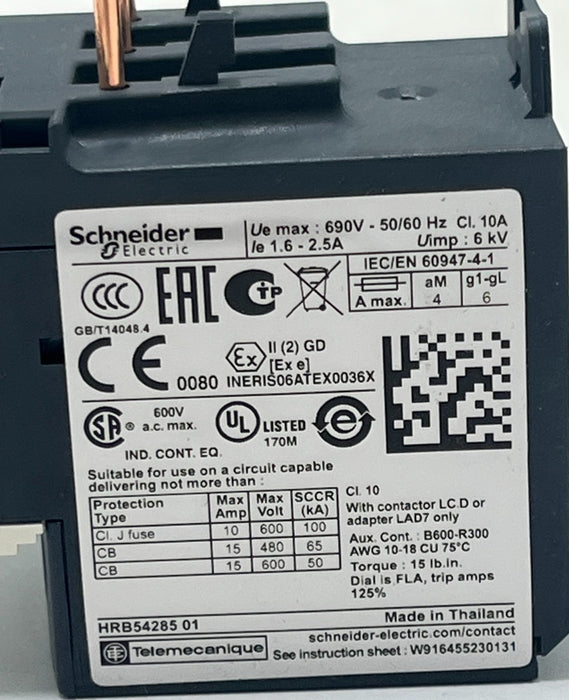

Schneider Electric LRD07 TeSys 034677 LRD Thermal Overload Relay, 1.6-2.5A, NSMP
$19.95
Schneider Electric LRD07 TeSys 034677 LRD Thermal Overload Relay, 1.6-2.5A, NSMP
Item Specifics
- Brand: Schneider Electric
- Model: LRD07
- Product Range: TeSys LRD
- Amperage Range: 1.6 A to 2.5 A
- Number of Poles: 3
- Mounting Type: Direct mounting under 3-pole contactor (e.g., LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38) or independent mounting with adapter plate (LA7D07)
- Control Voltage Type: AC/DC
- Reset Type: Manual and Automatic
- Main Circuit Voltage Rating: Up to 600 VAC
- Standards: IEC 60947-4-1, UL 508, CSA C22.2 No 14
- Application: Motor Protection, Industrial Control
Item Description
This is a Schneider Electric LRD07 TeSys LRD Thermal Overload Relay, designed to provide reliable and accurate overcurrent protection for 3-phase AC motors. This relay offers an adjustable current range of 1.6 to 2.5 Amps.
It is part of the robust TeSys series, known for its high performance and safety features.
Key Features:
- Adjustable Range: Easily set the precise current trip point between 1.6A and 2.5A.
- Integrated Protection: Features differential protection against phase failure.
- Flexible Mounting: Designed for direct connection to compatible Schneider Electric TeSys D contactors, creating a seamless motor starter solution.
- Reset Options: Includes both manual and automatic reset functions.
- Safety & Compliance: UL Listed, CSA Certified, and CE marked for global industrial use.
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
