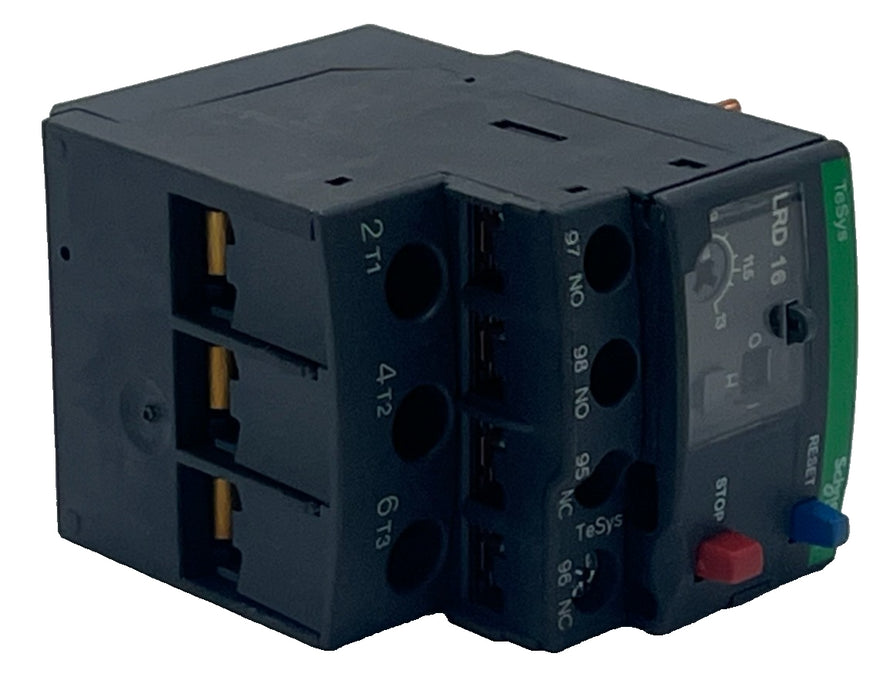

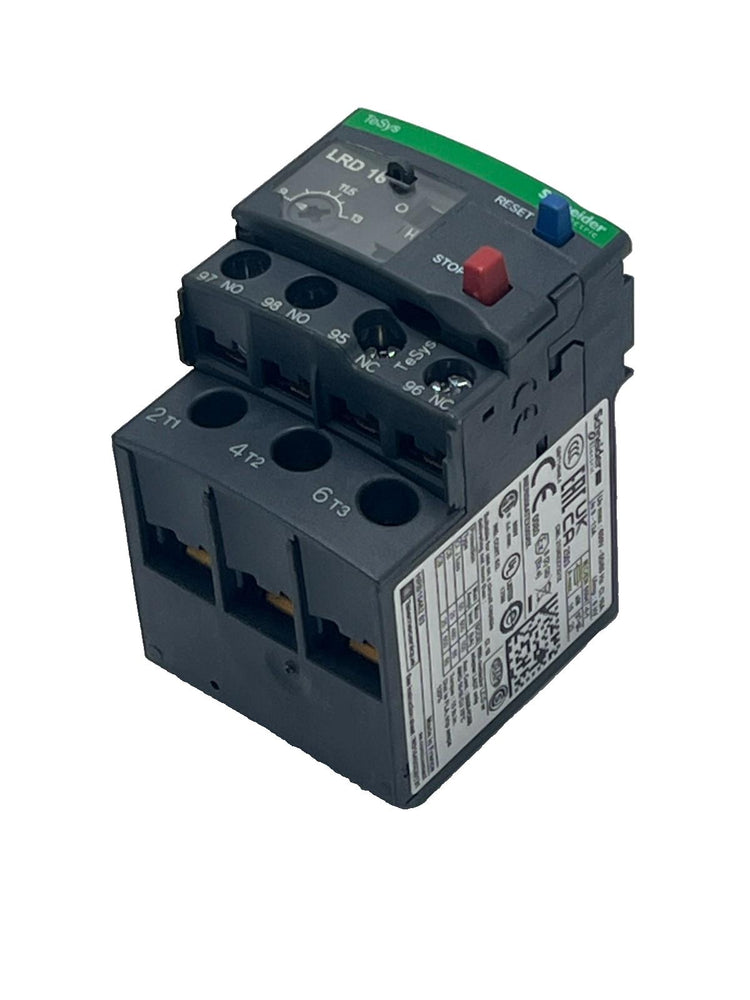

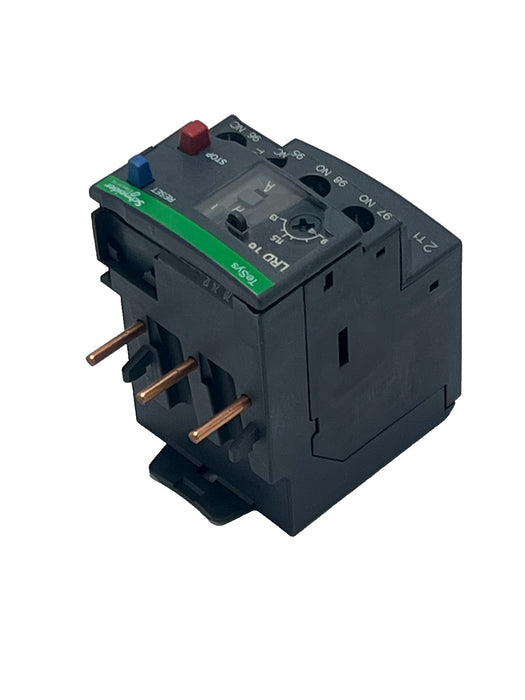

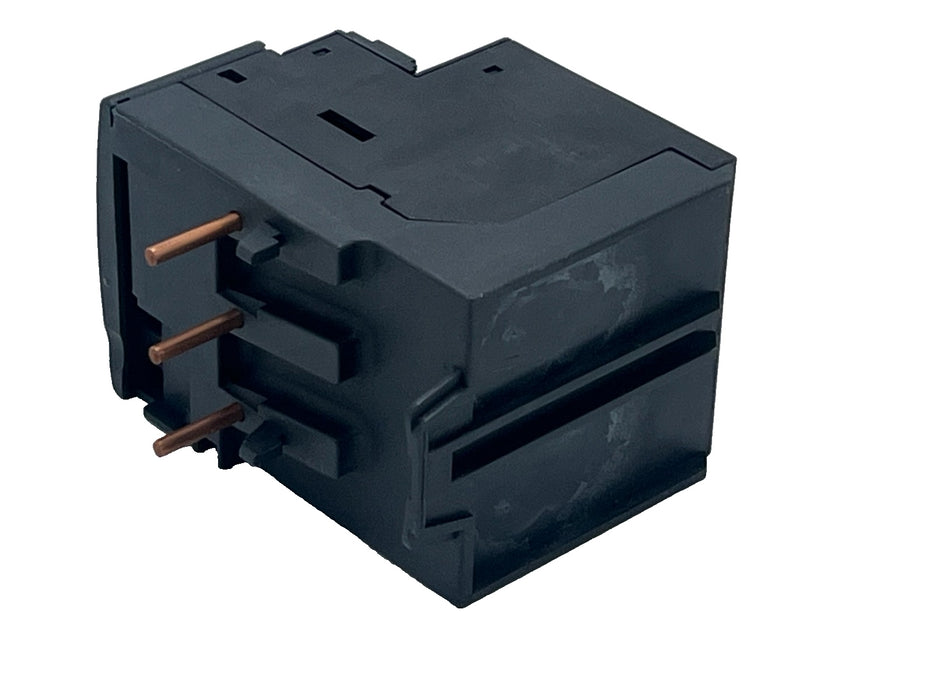

Schneider Electric LRD16 TeSys Thermal Overload Relay 9-13A NSNP
$25.95
Schneider Electric LRD16 TeSys Thermal Overload Relay 9-13A NSNP
Item Specifics
- Condition: [Select "New", "New (Open Box)", or "Used" based on your item]
- Brand: Schneider Electric
- MPN (Part Number): LRD16
- Amperage Range: 9.0 A to 13.0 A
- Number of Poles: 3
- Relay Type: Thermal Overload Relay
- Maximum Voltage (Main Circuit): 690 VAC (IEC rated)
- Trip Class: 10A (Standard)
- Mounting Type: Direct Mount to Contactor (LC1D series) or DIN Rail
- Reset Type: Manual and Automatic
- Application: Motor Protection, Industrial Control
Item Description
This is a , a robust component designed to protect 3-phase AC motors from overcurrents, stalls, and phase failures. With an adjustable current range of 9 to 13 Amps, it is a key safety device for motor control applications.
Key Features:

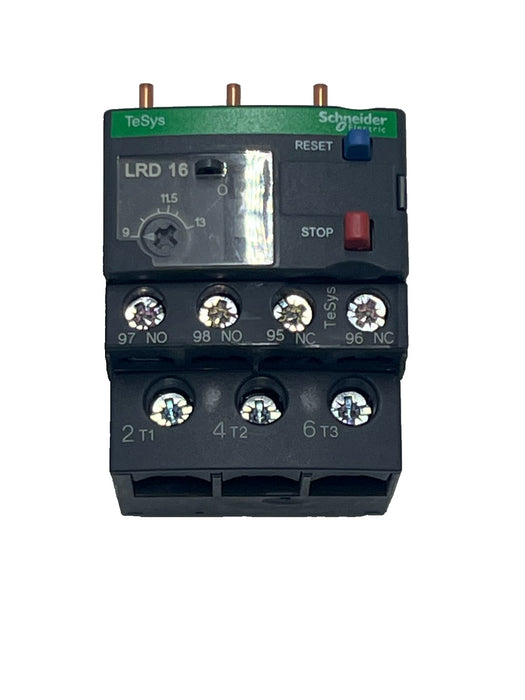

- Adjustable Range: Easily set the precise current trip point between 9A and 13A using the front-facing dial.
- Differential Protection: Features built-in protection against phase failure, which can cause significant motor damage.
- Flexible Mounting: Can be directly connected to compatible Schneider TeSys D contactors (such as LC1D09 through LC1D38) for a compact motor starter assembly, or mounted separately on a DIN rail with an adapter plate (sold separately).
- Reset Options: Includes both manual and automatic reset functions.
- Global Compliance: UL Listed, CSA Certified, and CE marked for global use in industrial applications.
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
