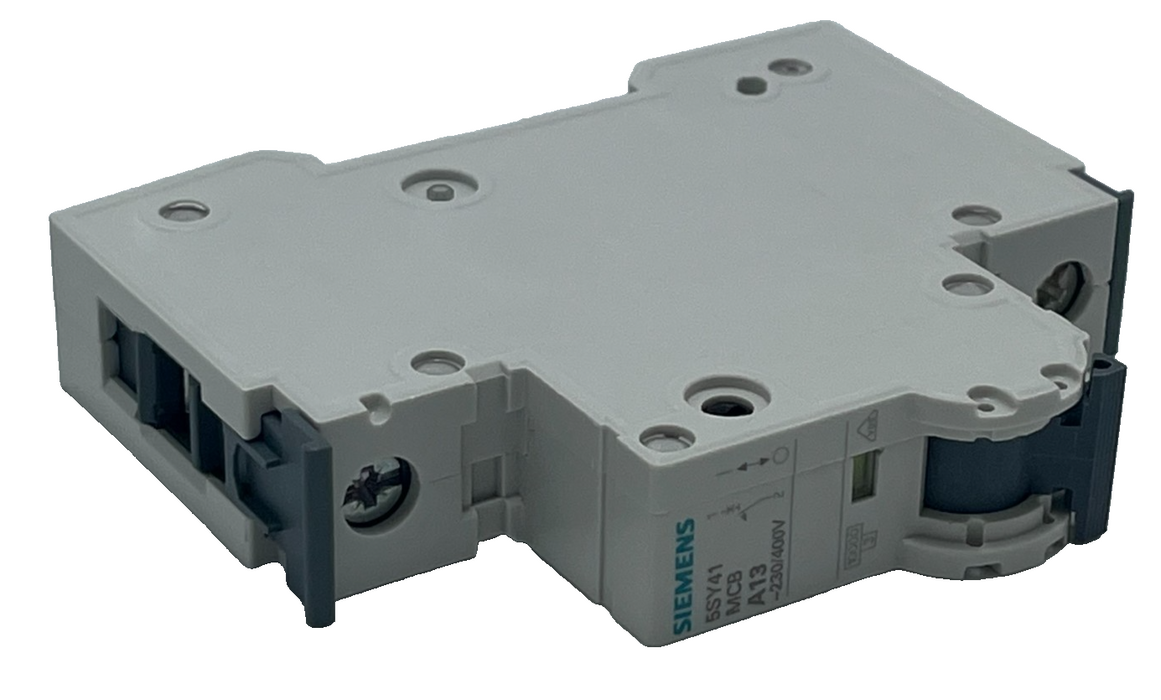

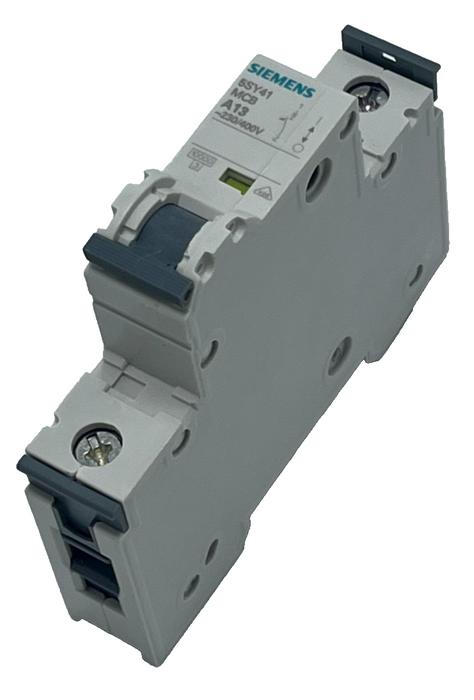

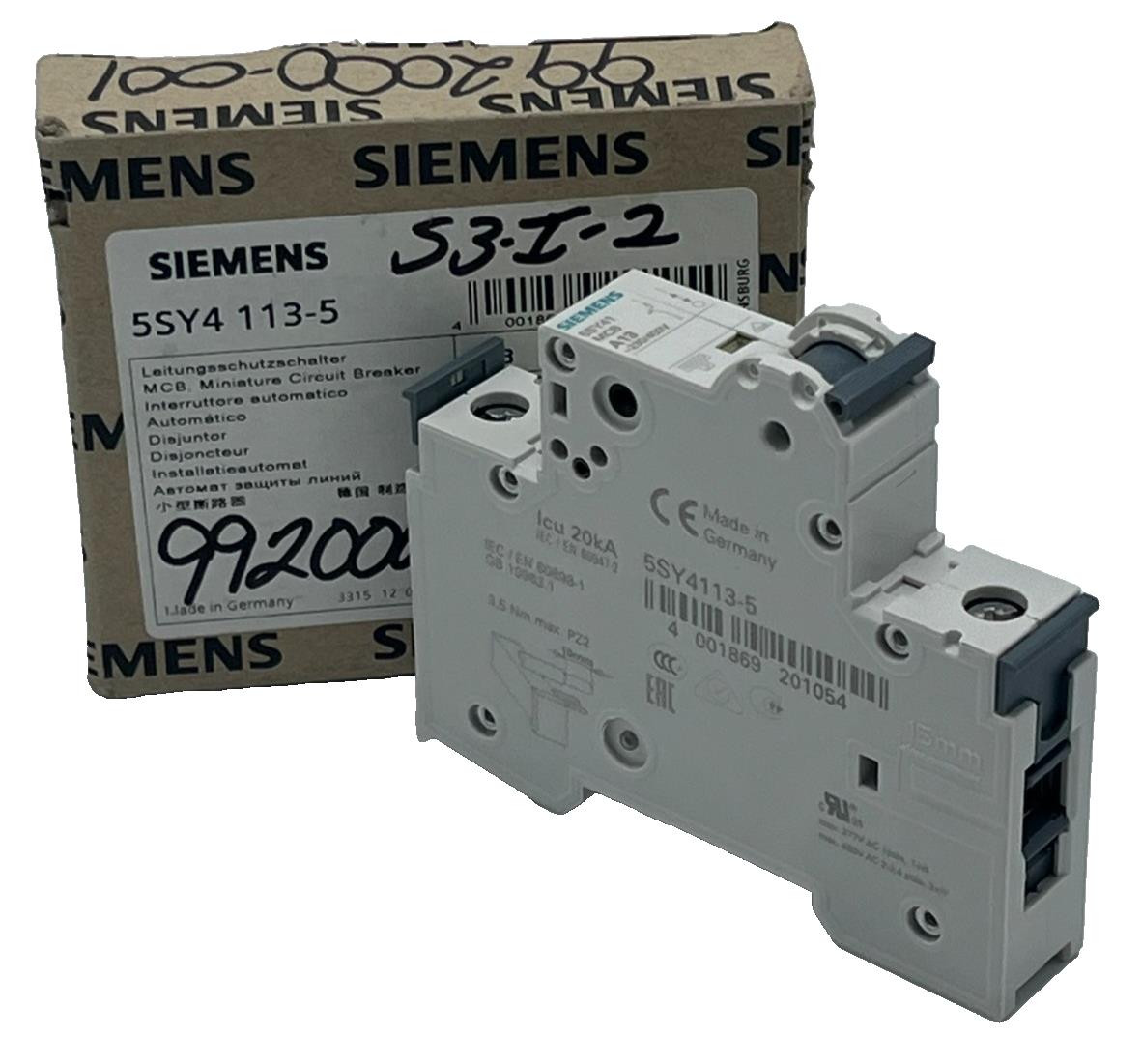

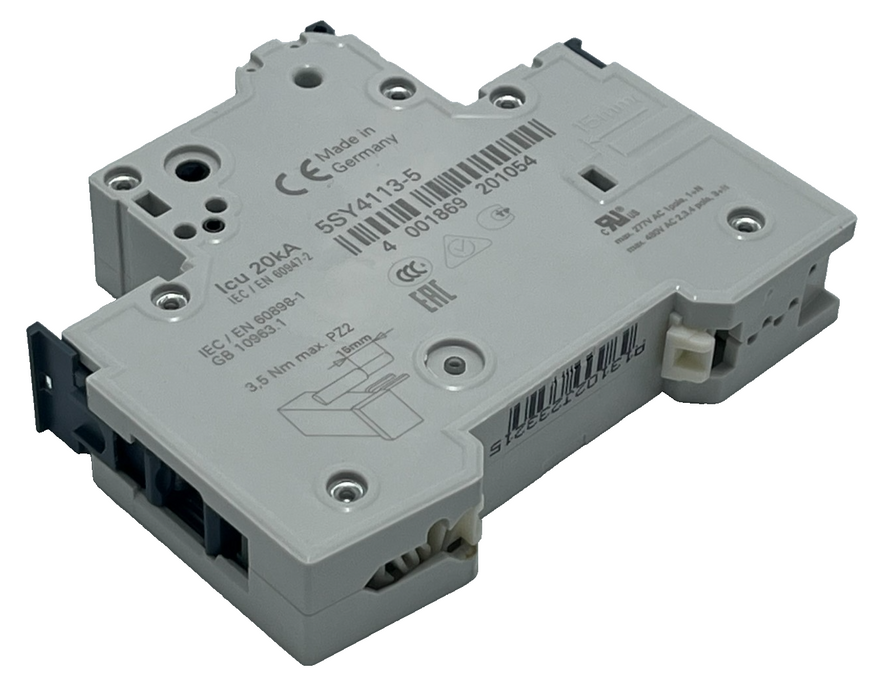

Siemens 5SY4 113-5 Miniature Circuit Breaker 13A 1P C-Curve 240/400V DIN Rail
$35.00
Siemens 5SY4 113-5 Miniature Circuit Breaker 13A 1P C-Curve 240/400V DIN Rail
- Brand: Siemens
- MPN: 5SY4 113-5
- Model: 5SY4
- Current Rating: 13 A
- Voltage Rating (AC): 230/240 VAC to 400/415 VAC
- Number of Poles: 1
- Tripping Characteristic: C-Curve
- Interrupting Rating: 10 kA
- Mounting Style: 35mm DIN Rail Mount
- Approvals: VDE, CE, CCC, EAC
- UPC: Does Not Apply
Item Description
Condition Details:
[Be honest and transparent about the condition. If it's used, clearly list any scuffs, scratches, or operational flaws. If new, specify if it's in original packaging, open box, etc.]
[Be honest and transparent about the condition. If it's used, clearly list any scuffs, scratches, or operational flaws. If new, specify if it's in original packaging, open box, etc.]
For example:
- Condition: New in Open Box. Item is in excellent, new condition and has no functional defects. The original packaging has been opened for inspection.
- Condition: Used, fully tested and in good working condition. Pulled from a working control panel. Minor cosmetic wear is present (see photos for details).
Product Overview:
This listing is for a genuine Siemens 5SY4 113-5 miniature circuit breaker. This high-quality, single-pole breaker is designed for reliable branch circuit protection in electrical distribution boards, primarily utilizing global IEC standards.
This listing is for a genuine Siemens 5SY4 113-5 miniature circuit breaker. This high-quality, single-pole breaker is designed for reliable branch circuit protection in electrical distribution boards, primarily utilizing global IEC standards.
It features a C-curve tripping characteristic, providing protection against overloads and short circuits (trips at 5 to 10 times the 13A rated current). The device mounts easily on a standard 35mm DIN rail and has touch-safe terminals for enhanced safety.
Key Features & Specifications:
- Manufacturer: Siemens
- Part Number: 5SY4 113-5 (EAN: 4001869185871)
- Current Rating: 13 Ampere
- Poles: 1-Pole (1P)
- Voltage AC: Up to 400V/415V AC
- Trip Curve: Type C (thermal magnetic protection)
- Interrupting Capacity: 10 kA
- Mounting: Standard DIN Rail (1 modular width unit, 18mm wide)
- Wire Size: Accepts wires up to 25 mm²
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
