Smar TT301 HART Temp. Transmitter Dual Input TT301-12-10/H0/I1/J0/L3/M0/Y0/T4/BU
Technical Specifications:
Output: 2-wire, 4-20 mA with superimposed digital HART signal.
Accuracy: ± 0.1% of reading.
Ambient Temp: -40°C to 85°C (-40°F to 185°F).
Configuration Tools: Compatible with Smar CONF401, PACTware, FieldCare, and HART Handheld Terminals (HHT375/475).

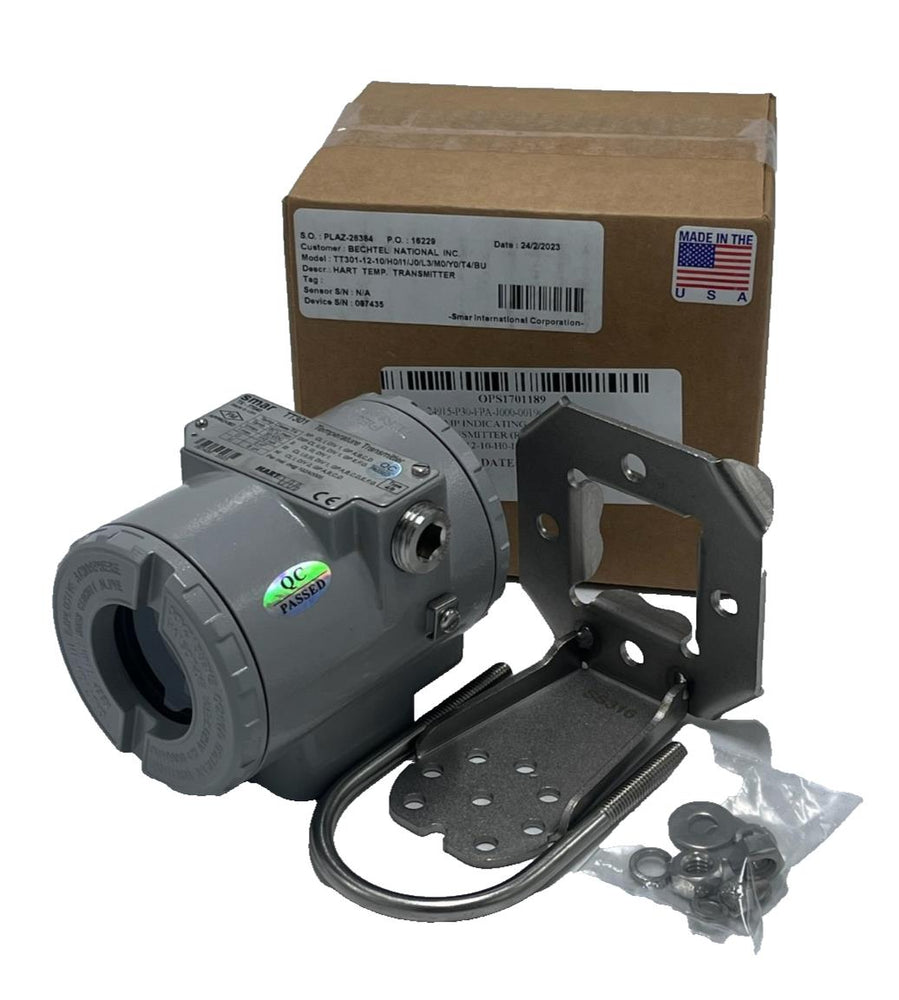

What’s Included:

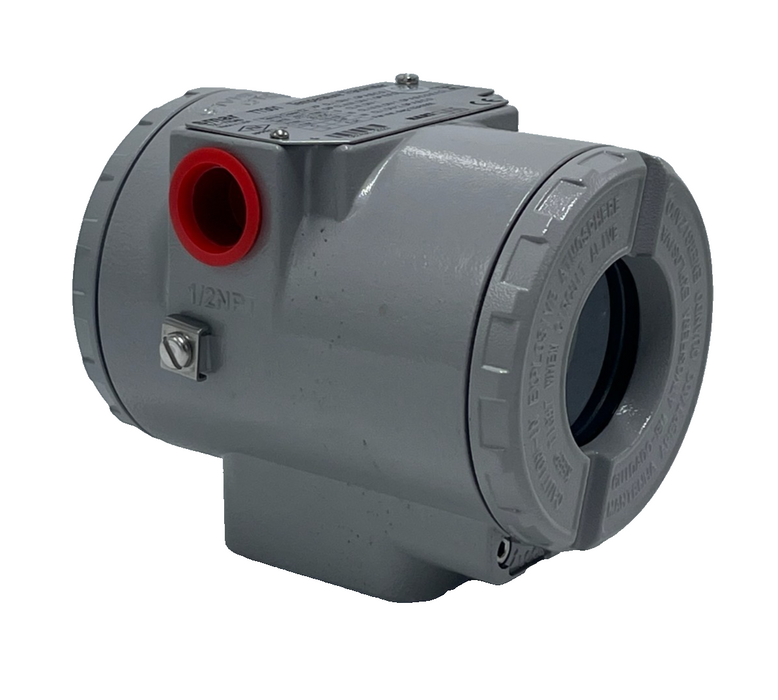

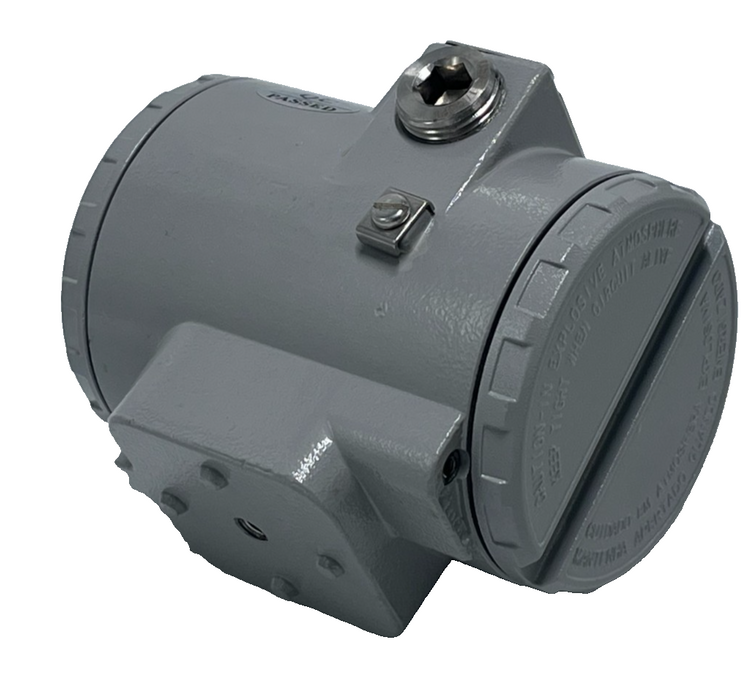

(1) Smar TT301 Temperature Transmitter
(1) 316 Stainless Steel Mounting Bracket (L3)
Configuration Breakdown (MPN Decoder): TT301-12-10/H0/I1/J0/L3/M0/Y0/T4/BU
Model: TT301 (HART / 4-20 mA)
12-10: Standard Series / Version Code
H0: Housing Material: Aluminum (standard)
I1: Digital Indicator / LCD Display (Included)

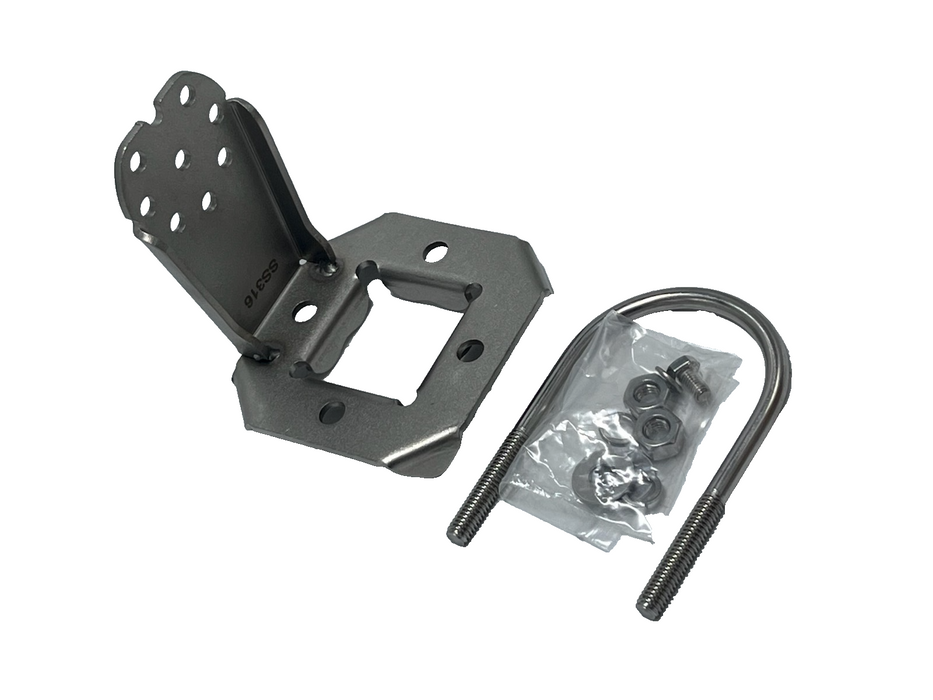

L3: Mounting Bracket: 316 Stainless Steel for 2" Pipe
T4: Safety Certification: Explosion Proof / Intrinsically Safe
BU: Burnout: High/Upscale (NAMUR NE43)
