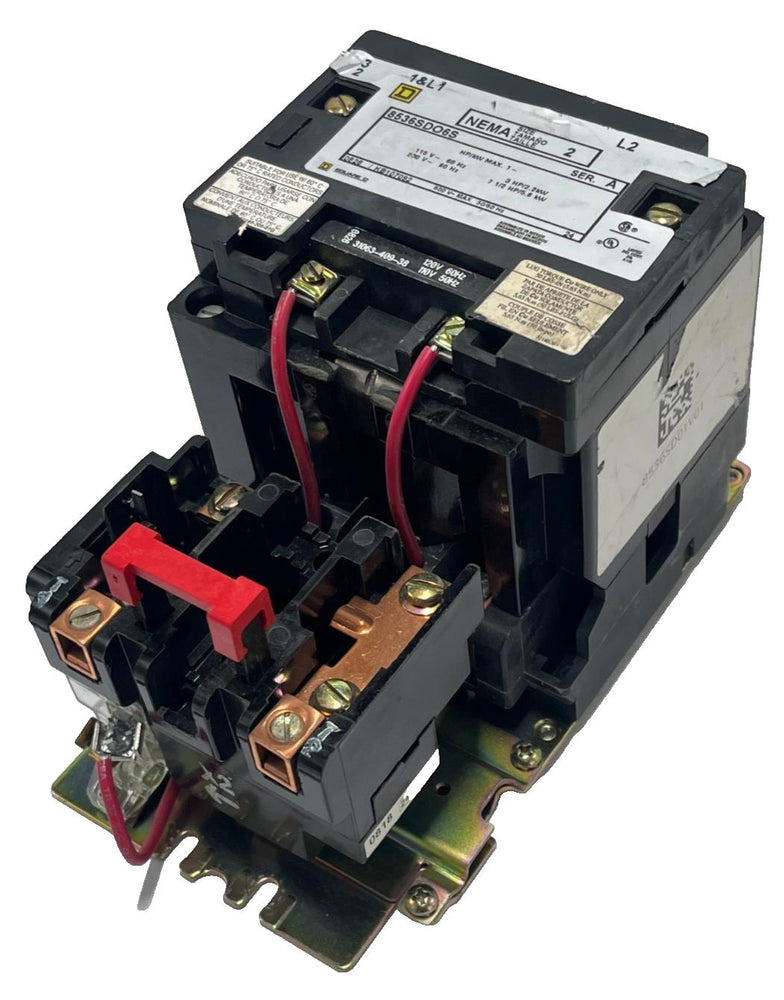

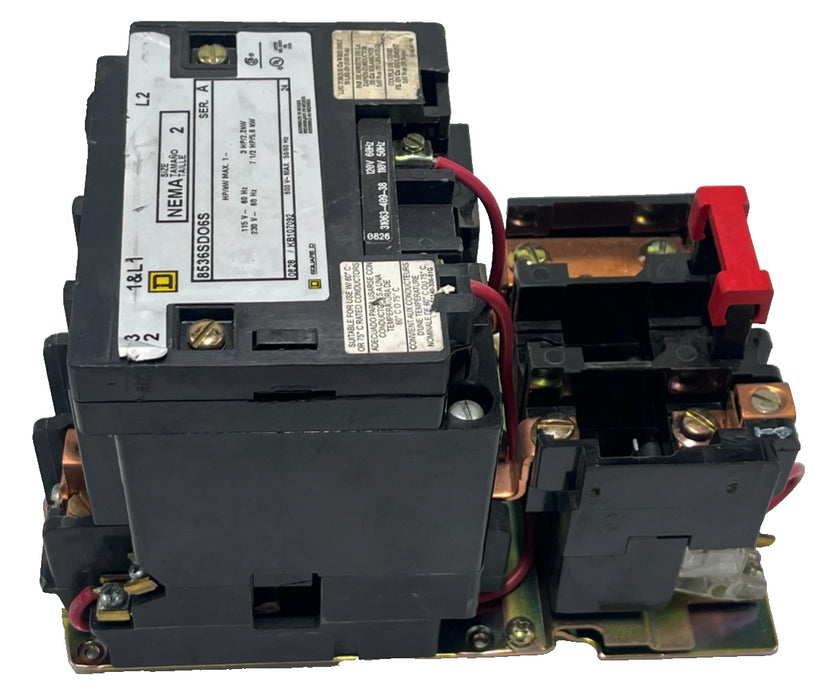

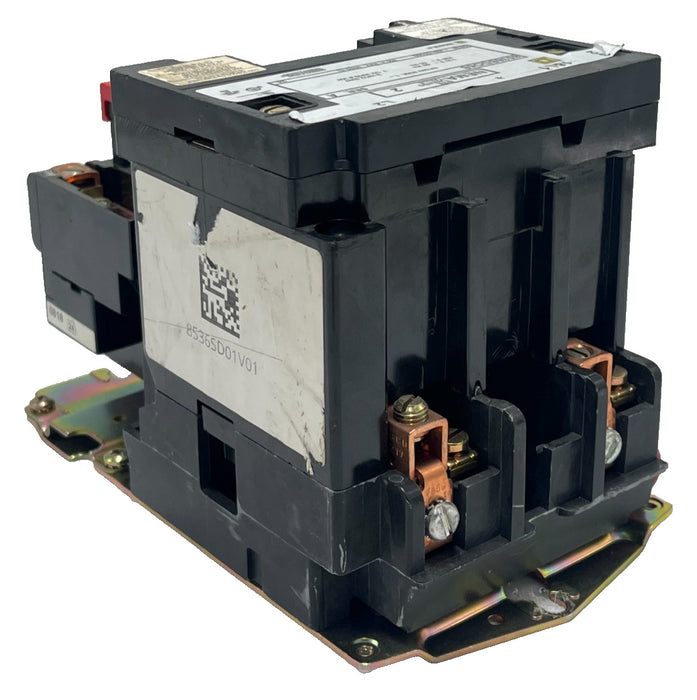

SQUARE D 8536SDO1V01 NEMA Size 2 Ser. A Magnetic Motor Starter 24 VAC 60 HZ COIL
$700.00
SQUARE D 8536SDO1V01 NEMA Size 2 Ser. A Magnetic Motor Starter 24 VAC 60 HZ COIL
SOME MINOR SURFACE WEAR BUT STRUCTURALLY AND MECHANICALLY IN VERY GOOD CONDITION
Product Details
The
Square D 8536SD01V01 Series A
is a NEMA Size 2 magnetic motor starter designed for starting and stopping electric motors. It features a reliable contactor and melting alloy thermal overload relay in an open-style chassis, suitable for integration into existing control panels. This robust unit is rated for heavy-duty industrial applications.Key Features:
- NEMA Rated: Industrial grade NEMA Size 2 construction for robust and long-lasting performance.
- Reliable Operation: Designed for heavy-duty switching applications in industrial environments.
- Easy Integration: Open style allows for flexible mounting inside control panels (enclosure not included).
- Overload Protection: Includes a factory-installed melting alloy type thermal overload relay for motor protection. Note: Thermal units (heaters) are typically sold separately and must be sized correctly for your motor's Full Load Amps (FLA).
Specifications:
- Brand: Square D (Schneider Electric)
- Model/Part Number: 8536SD01V01(sometimes 8536S D01V01)
- Series: A
- Product Type: Magnetic Motor Starter
- NEMA Size: 2
- Amperage Rating: 45 A (Max Continuous)
- Phase: 3-Phase
- Coil Voltage: 120 VAC (60 Hz) / 110 VAC (50 Hz)
-
HP Ratings (3 Phase):
- 10 HP @ 200 VAC
- 15 HP @ 230 VAC
- 25 HP @ 460/575 VAC
- Enclosure: Open Type (Not rated for washdown/dust without separate enclosure)
- Auxiliary Contacts: Typically none included as standard (confirm from photos/actual unit)
- Standards: UL Listed, CSA Certified
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
