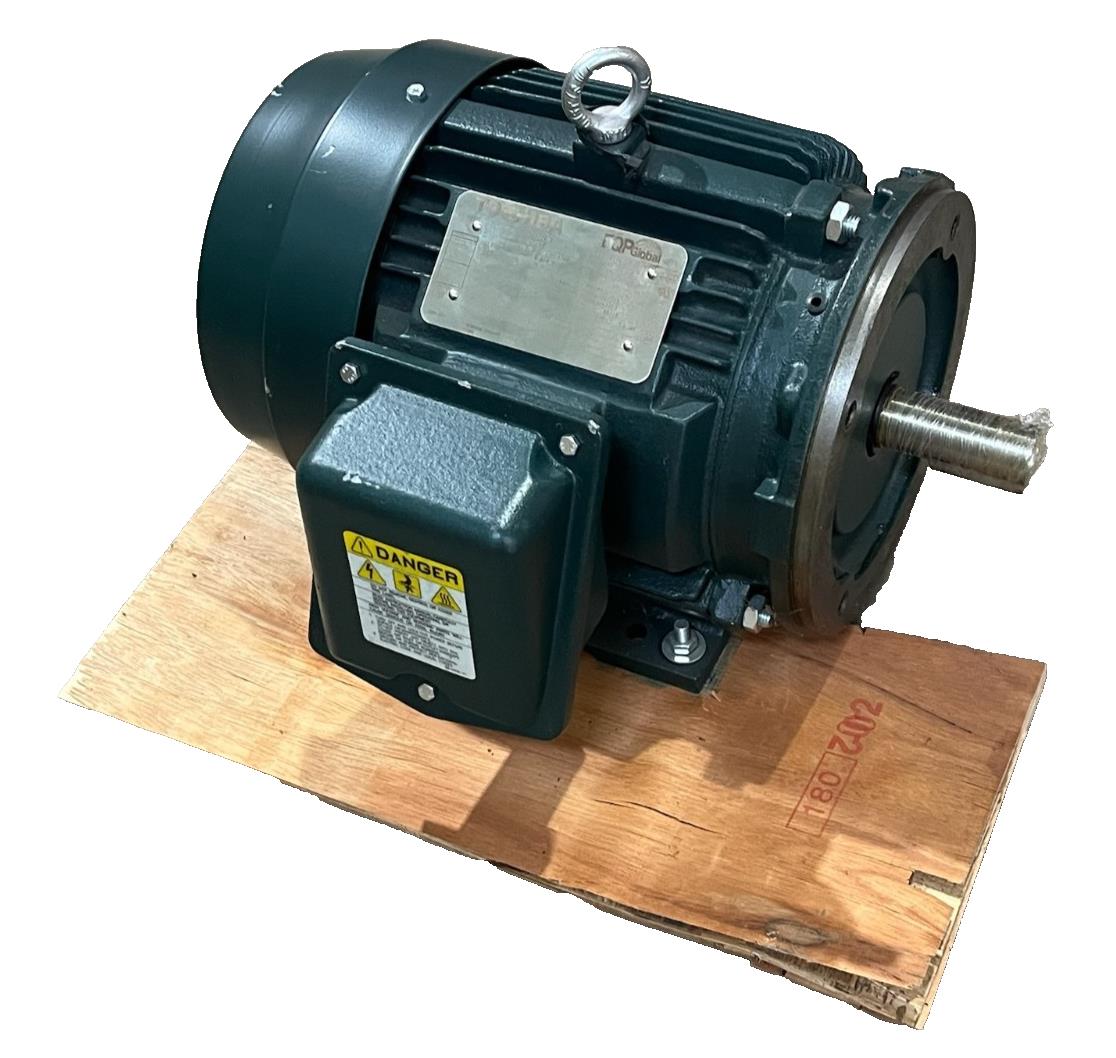

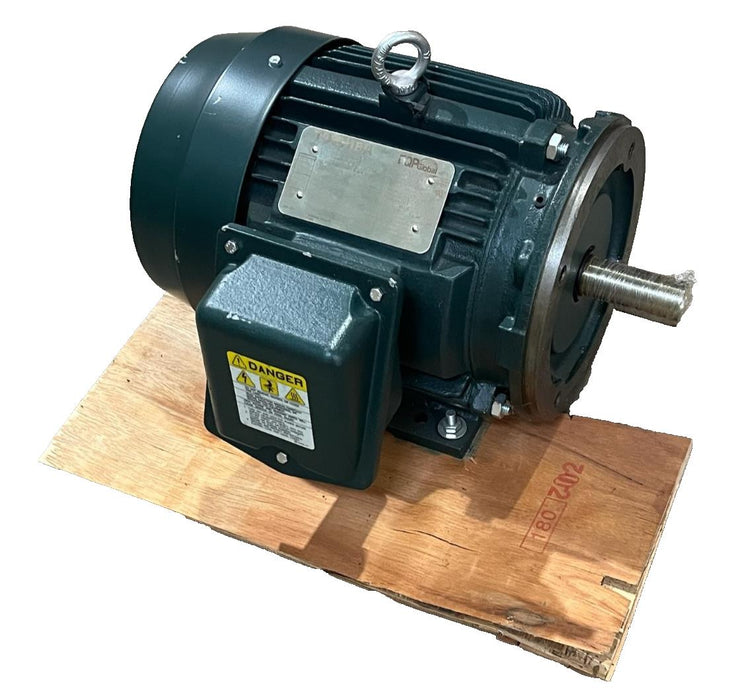

Toshiba 0034SDSR42A-P AC Motor | 3 HP | 1800 RPM | 3-Phase 460V | C-Face 182TC

Toshiba 0034SDSR42A-P AC Motor | 3 HP | 1800 RPM | 3-Phase 460V | C-Face 182TC

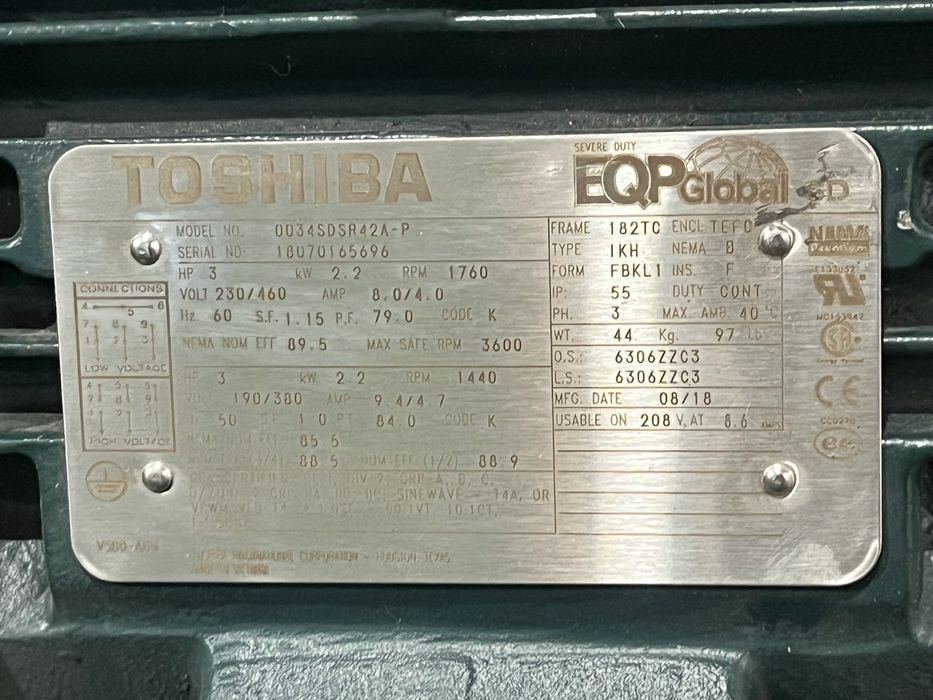

Item Specifics

• Brand: Toshiba

• Model: 0034SDSR42A-P

• Horsepower: 3 HP

• Speed: 1800 RPM

• Phase: 3-Phase

• Voltage: 230/460 VAC

• Frame Size: 182TC (C-Face Footed)

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Efficiency: NEMA Premium Efficiency

Description

Product Overview The Toshiba 0034SDSR42A-P is an EQP Global SD Series motor engineered for the most demanding "severe duty" industrial environments. This model is C-Face Footed (182TC), meaning it features both a standard mounting base and a machined C-Face flange for direct-coupling applications.

Key Technical Features

• Dual Mounting: Equipped with a NEMA 182TC frame, allowing for both rigid base mounting and C-face flange mounting.

• Severe Duty Construction: Full cast iron frame, end brackets, and conduit box for maximum structural integrity and corrosion resistance.

• Inverter Duty: Rated for 20:1 Constant Torque and 60:1 Variable Torque speed ranges, making it perfect for VFD control.

• Protection: IP55 rated to guard against dust and moisture ingress in harsh shop or field conditions.

• High Efficiency: Meets NEMA Premium standards with a nominal full-load efficiency of 89.5%.
