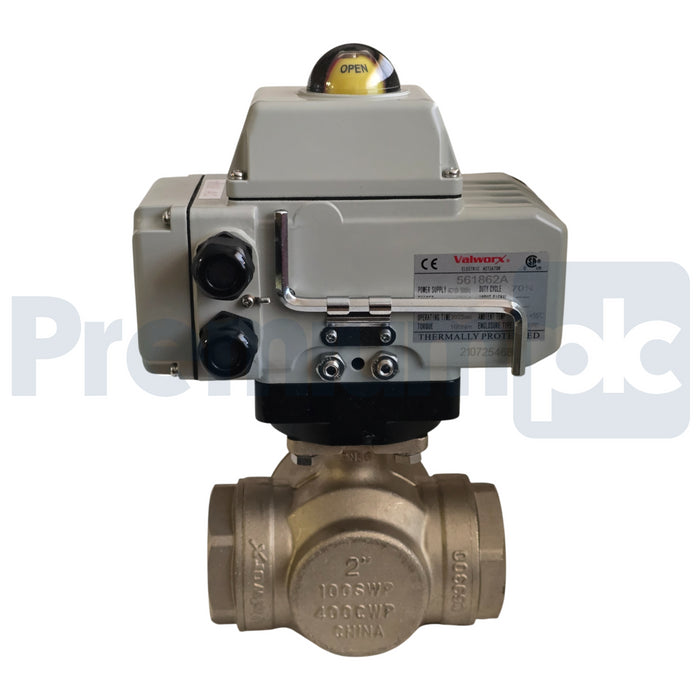

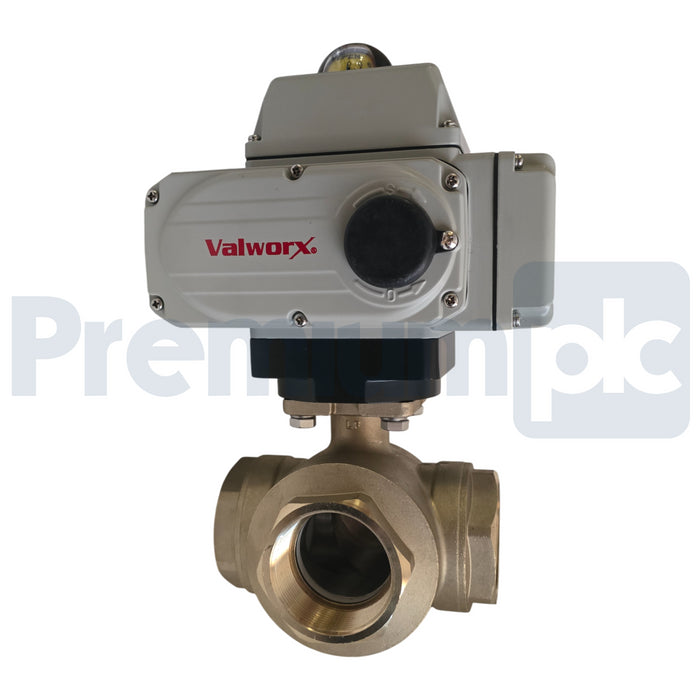

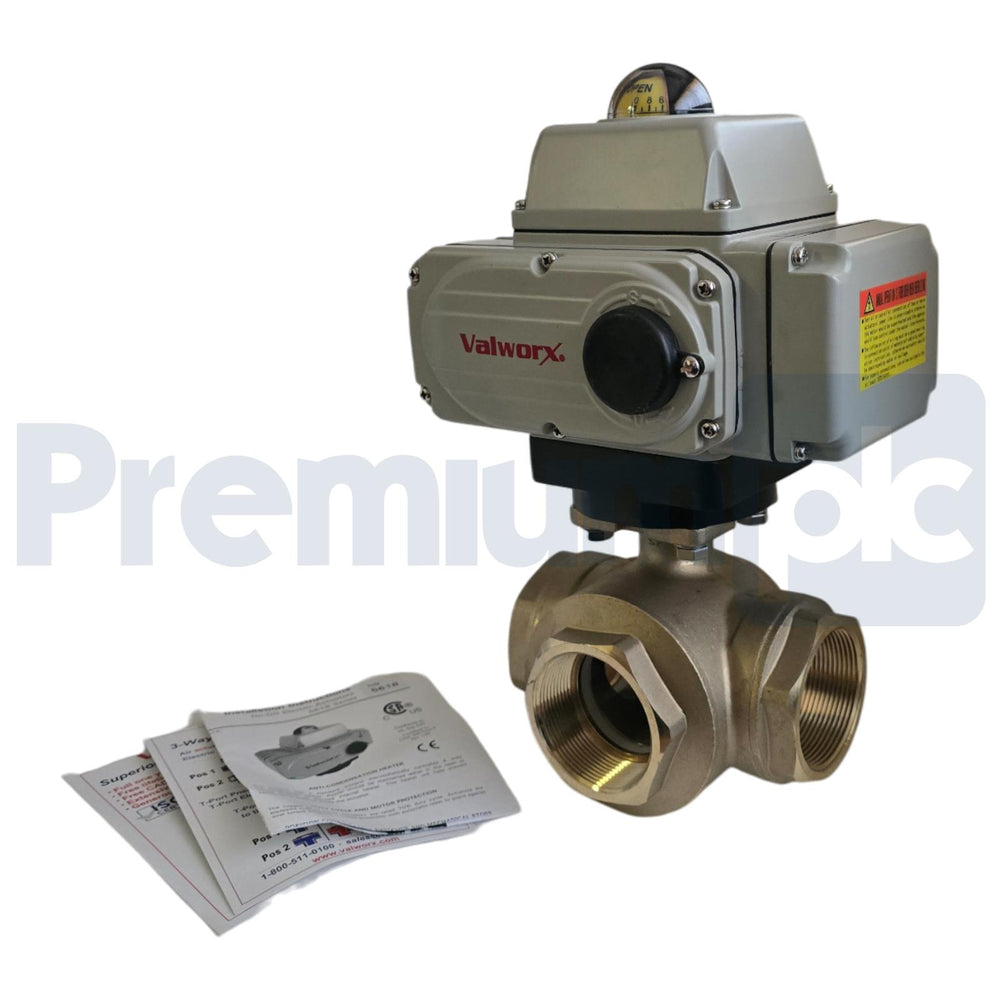

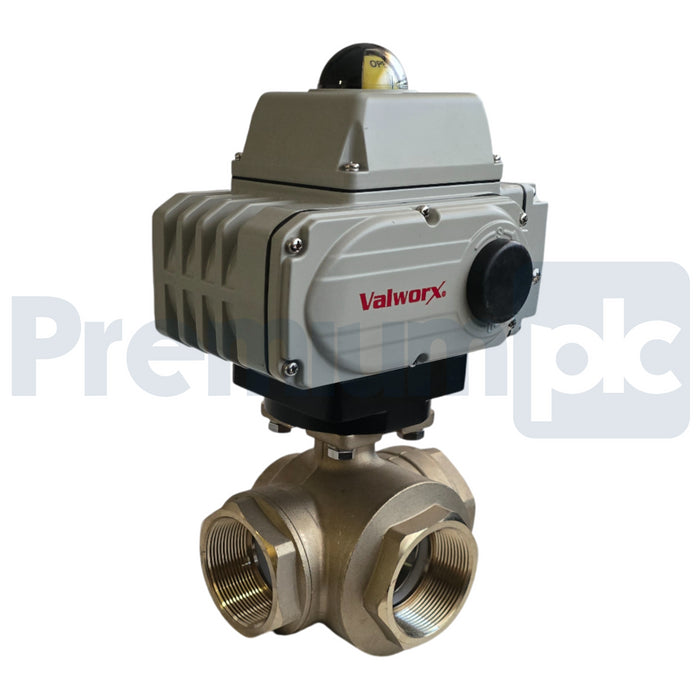

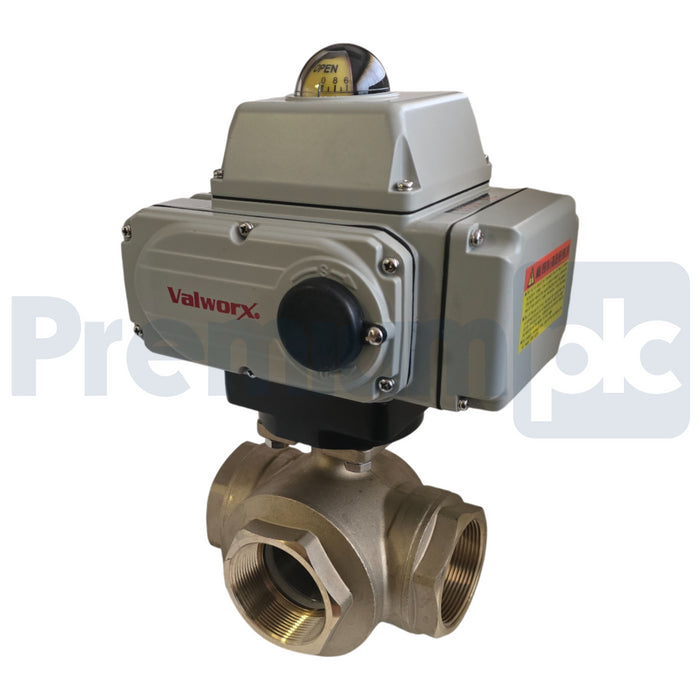

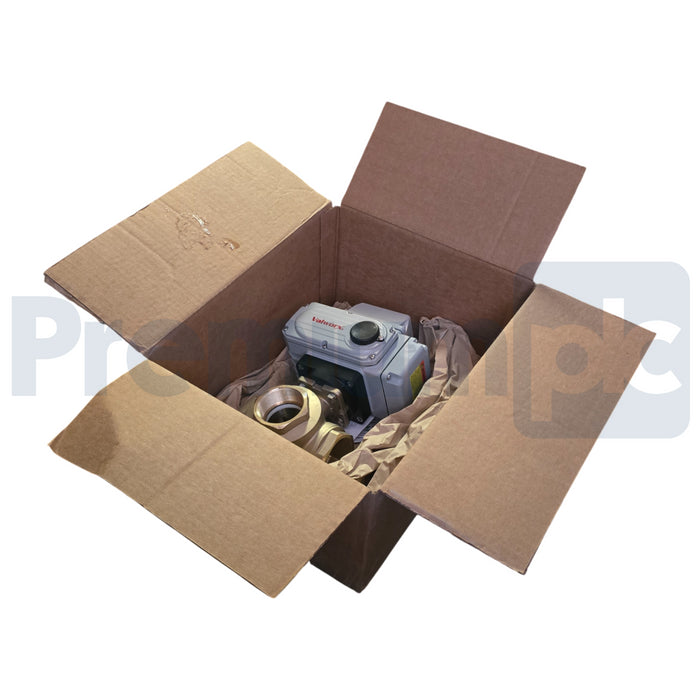

VALWORX 567916A 2" ELECTRIC ACTUATED 3-WAY BRASS T-DIVERTER VALVE 110VAC 561862A
$1,100.00
VALWORX 567916A 2" ELECTRIC ACTUATED 3-WAY BRASS T-DIVERTER VALVE 110VAC 561862A

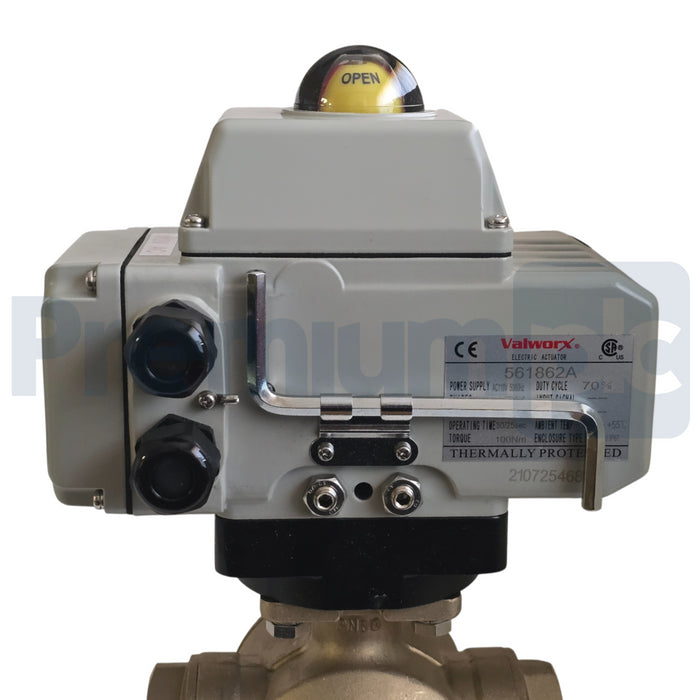

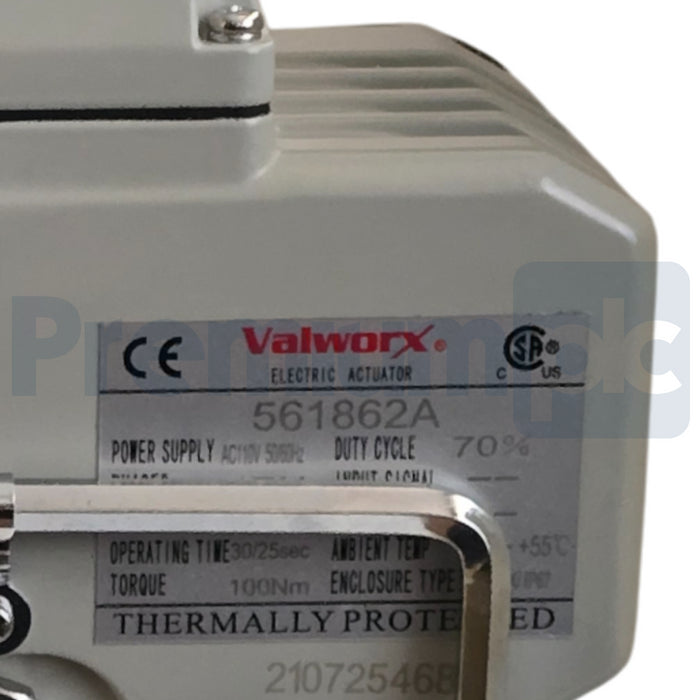

- 561862A Electric Actuator 885 in.lbs (100Nm), 110 VAC
| Type | Electric Actuated 3 Way Brass Valve- On/Off |
|---|---|
| Voltage | 110 VAC 50/60 Hz |
| Current Rating | 0.64A (full load amps) |
| Cycle Time | 30 seconds per 90° rotation (no load) |
| Pipe Size | 2" NPT female |
| Port Size | Full Port, orifice 2.0 inches, Cv 82 |
| Pressure (Max) | 400 PSI (see P/T chart), 25 PSI saturated steam with high temp. kit, vacuum service to 29" Hg |
| Valve Temperature Range | -4 to 344 °F (-20 to +173 °C) |
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
| Valve Body | Lead Free Brass C69300 |
| Ball and Stem | 316 stainless steel |
| Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
| Ball Seats | (4) PTFE (Teflon) energized with FKM (Viton) |
| Duty Cycle | 70% |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Max Fluid Velocity | 10 feet per second |
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
