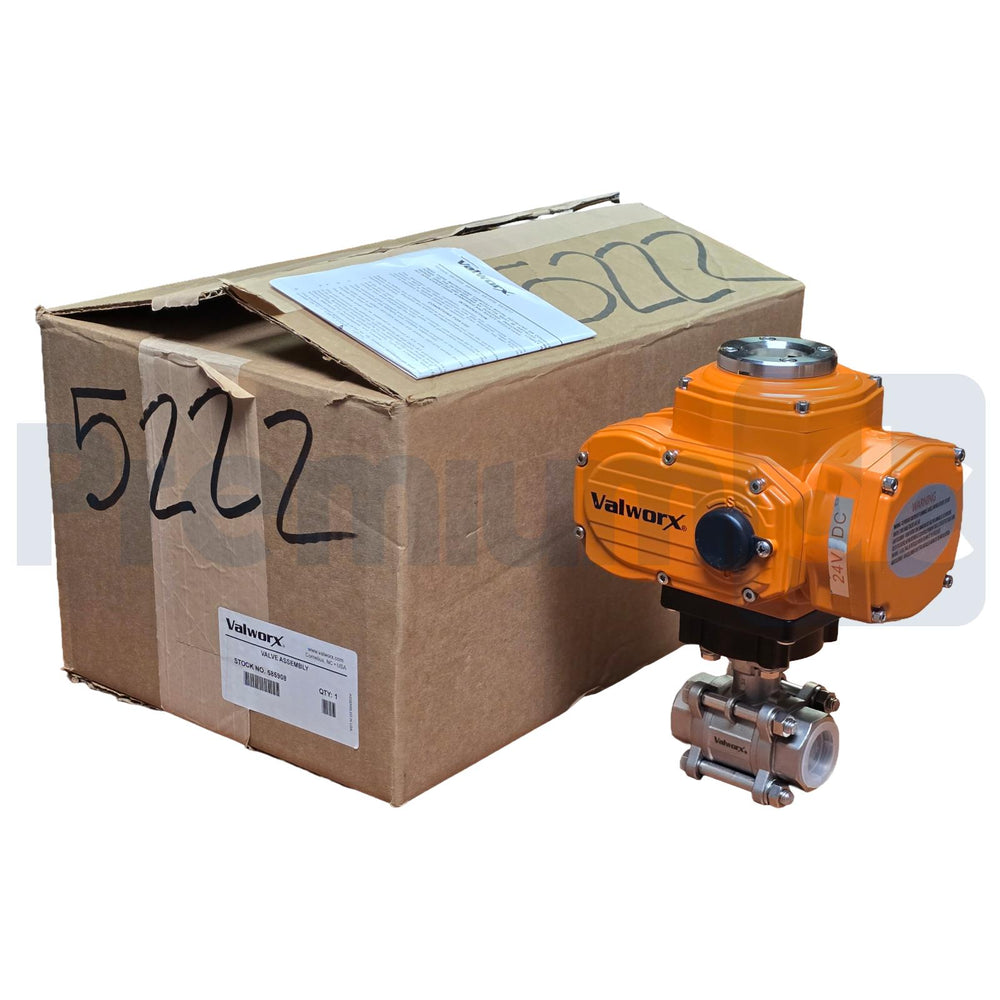

Valworx 585908 1" Explosion Proof SS Ball Valve 24VDC w/ Positioner 581857 NSMP
$1,295.00
Valworx 585908 1" Explosion Proof SS Ball Valve 24VDC w/ Positioner 581857 NSMP
| Type | Explosion Proof Electric Actuated 3 Piece Ball Valve- Positioner |
|---|---|
| Voltage | 24 VDC |
| Current Rating | 1.8A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (no load) |
| Pipe Size | 1" NPT female |
| Port Size | Full Port, orifice 1.00 inches, Cv 55.4 |
| Pressure (Max) | 1000 PSI (see P/T chart), vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Actuator Temperature Range | -13 to 131 °F (-25 to +55 °C) |
| Valve Body | 316 stainless steel |
| Ball | 316 stainless steel |
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
| Ball Seats | RTFE (reinforced Teflon) |
| Duty Cycle | 70% |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Explosion Proof | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
| Max Fluid Velocity | 10 feet per second |

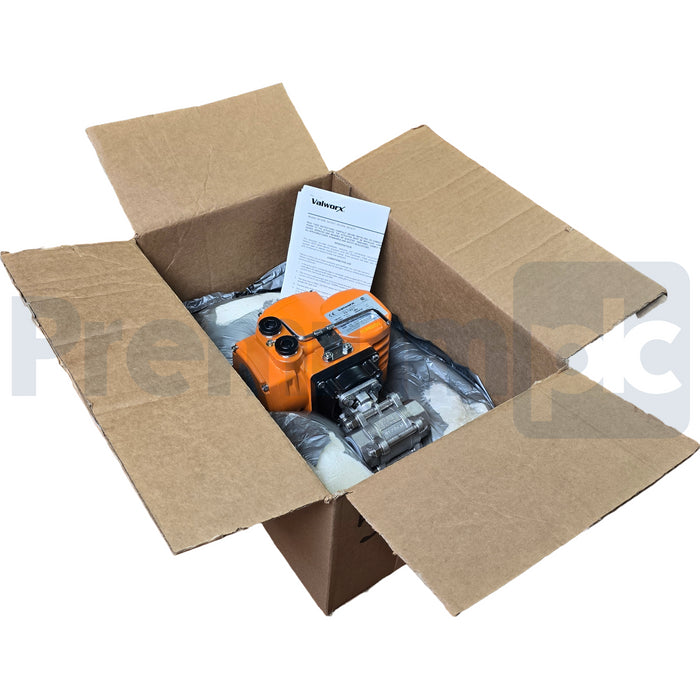

CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
