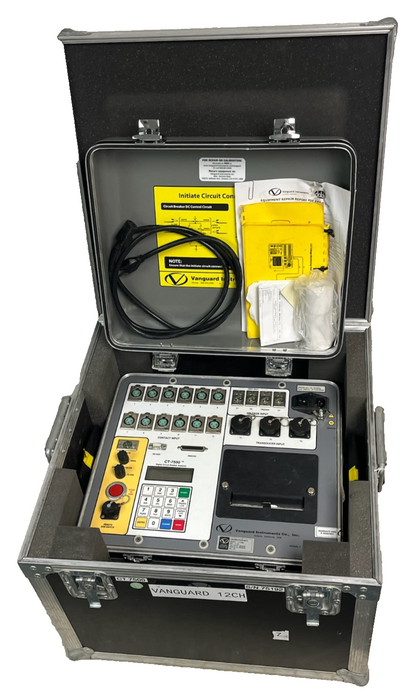

Vanguard CT-7500 S2 Digital Circuit Breaker Analyzer | EHV Test Set w/ Hardcase

Vanguard CT-7500 S2 Digital Circuit Breaker Analyzer | EHV Test Set w/ Hardcase

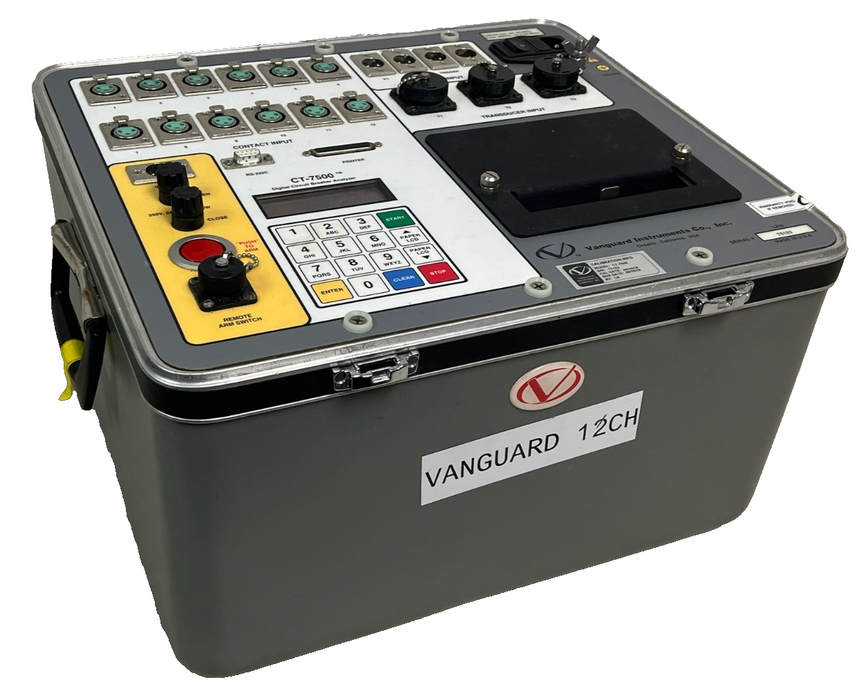

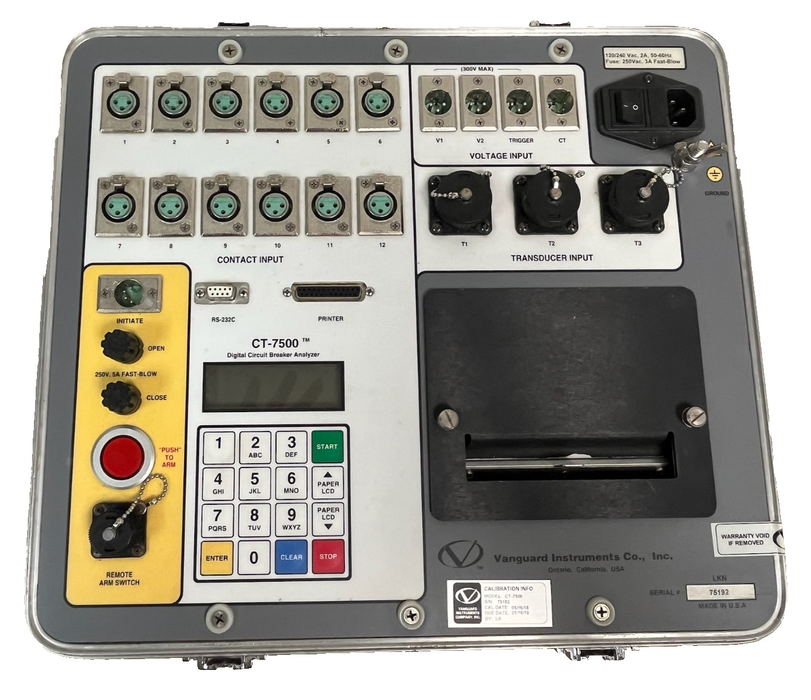

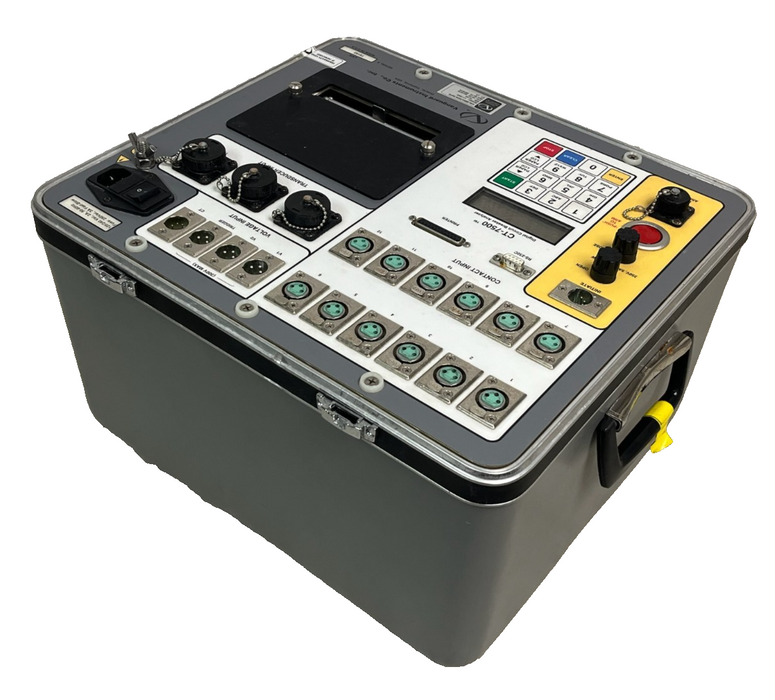

Product Overview The Vanguard CT-7500 Series 2 is the industry standard for EHV (Extra High Voltage) circuit breaker testing. This stand-alone, microcomputer-driven system allows for comprehensive analysis of breaker performance, measuring contact time, stroke, velocity, and more with high-precision accuracy.

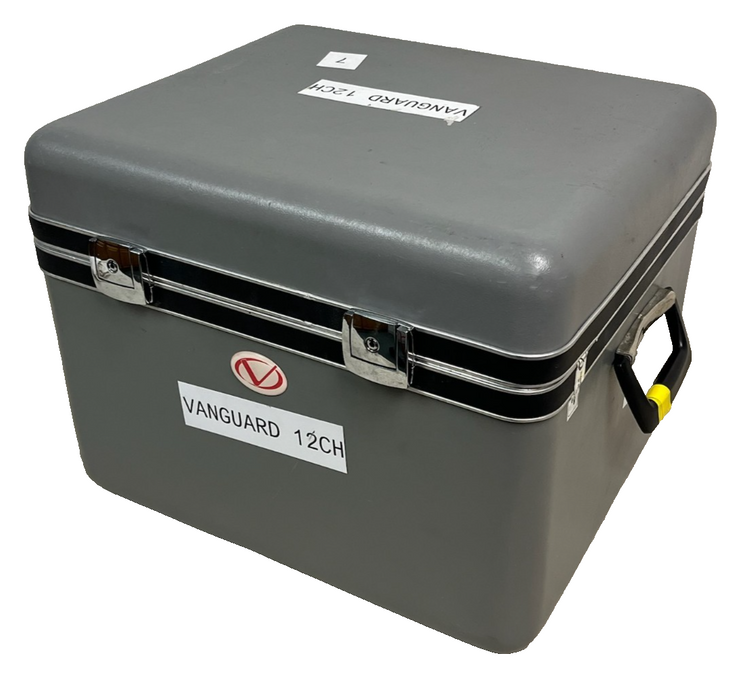

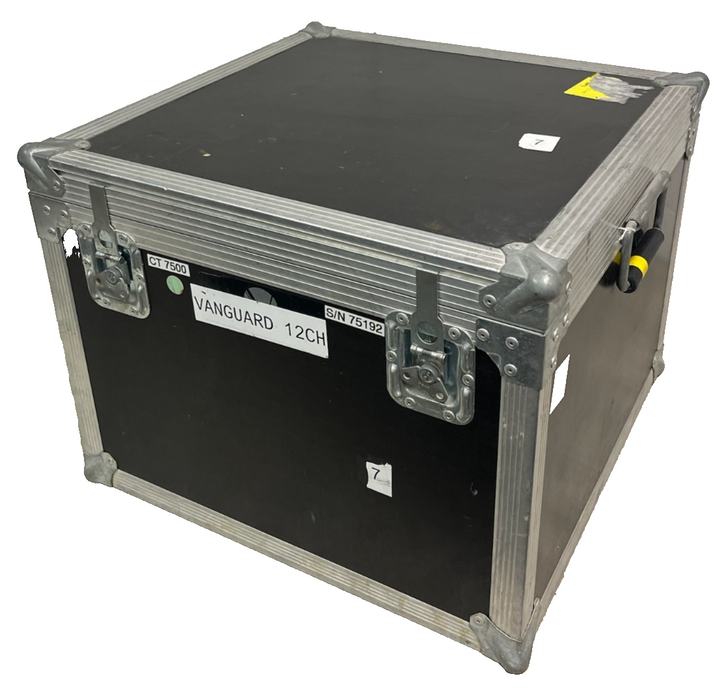

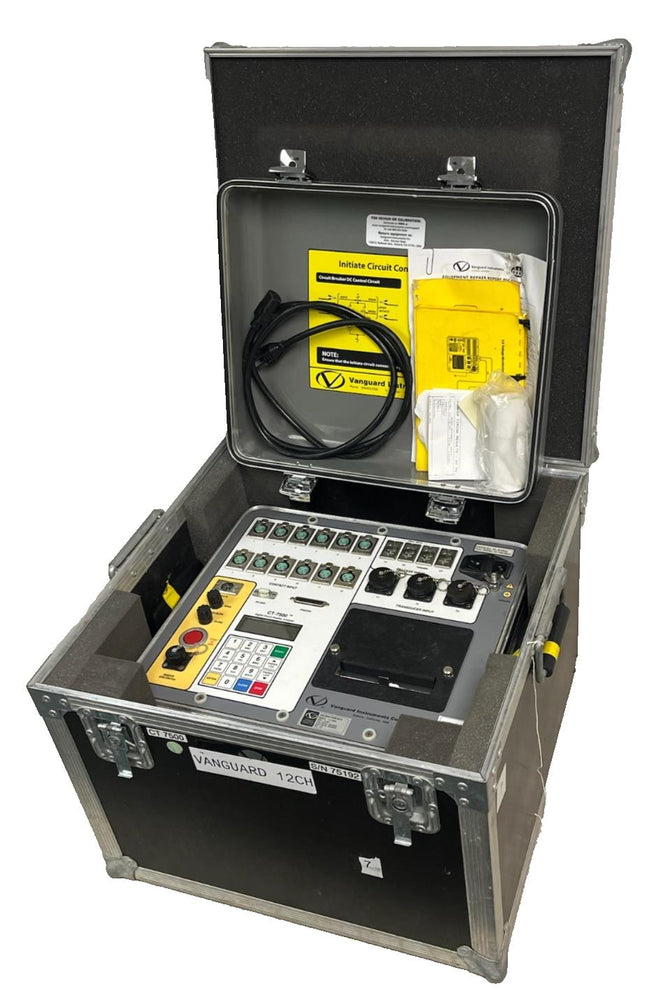

Includes Large Transit Case Unlike many units sold as "standalone," this listing includes a large, ruggedized hardcase.

• Custom Fit: Designed to house the analyzer unit securely.

• Storage Space: Ample room for the entire set of timing cables, transducer cables, power cords, and thermal paper rolls.

• Field Ready: Equipped with heavy-duty latches and a reinforced handle, ensuring the equipment remains calibrated and safe during transport to remote substations.

Core Capabilities

• First-Trip Analysis: Capture "Quick-Shot" on-line timing without taking the breaker out of service.

• Complex Sequences: Easily perform Open, Close, Open-Close, Close-Open, and Open-Close-Open tests.

• Digital Accuracy: Timing resolution of ±50 microseconds ensures laboratory-grade data in a field-portable package.

• Instant Documentation: The built-in 4.5" thermal printer provides immediate on-site tabular results and graphic waveforms.
