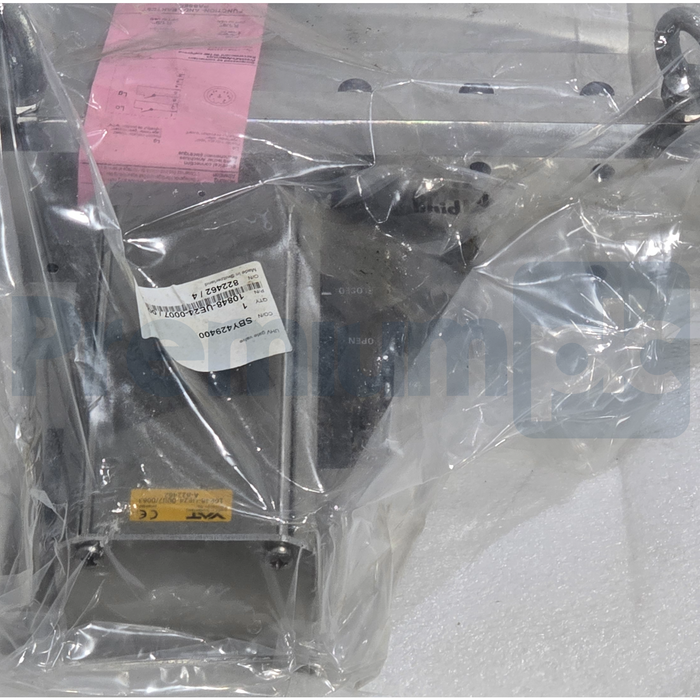

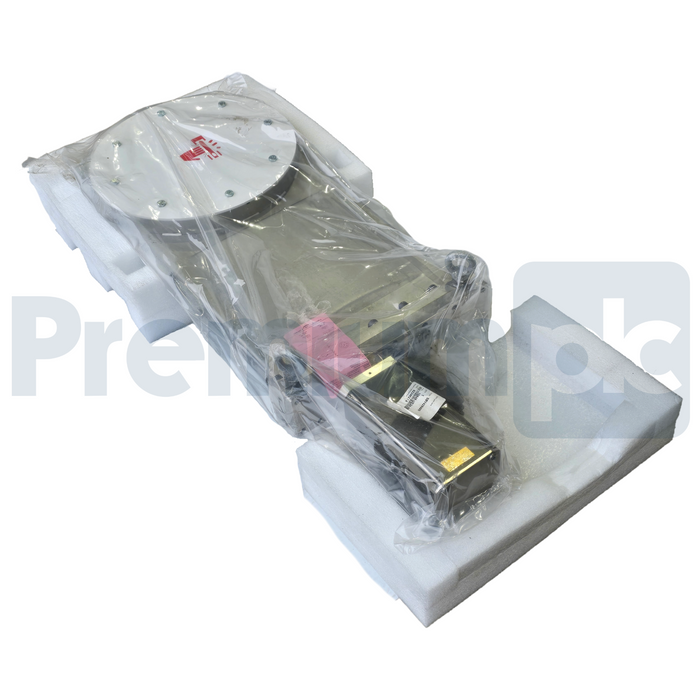

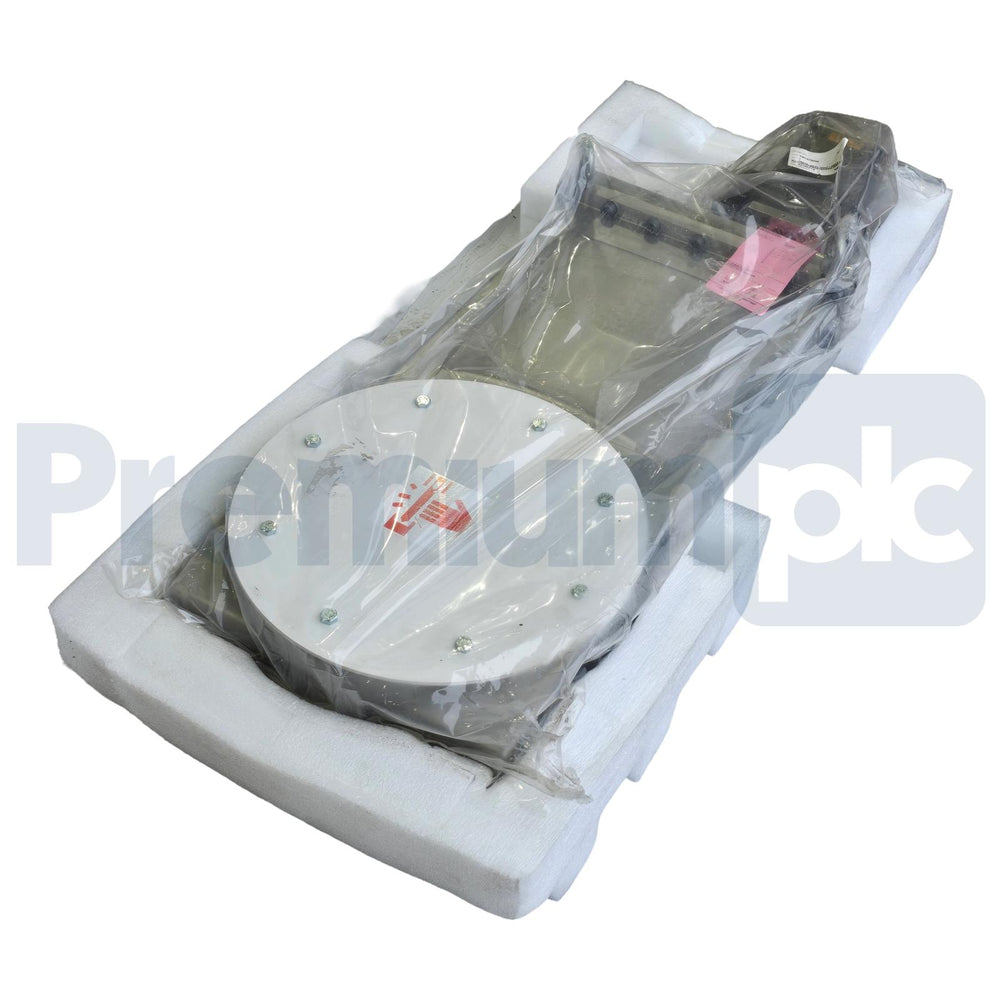

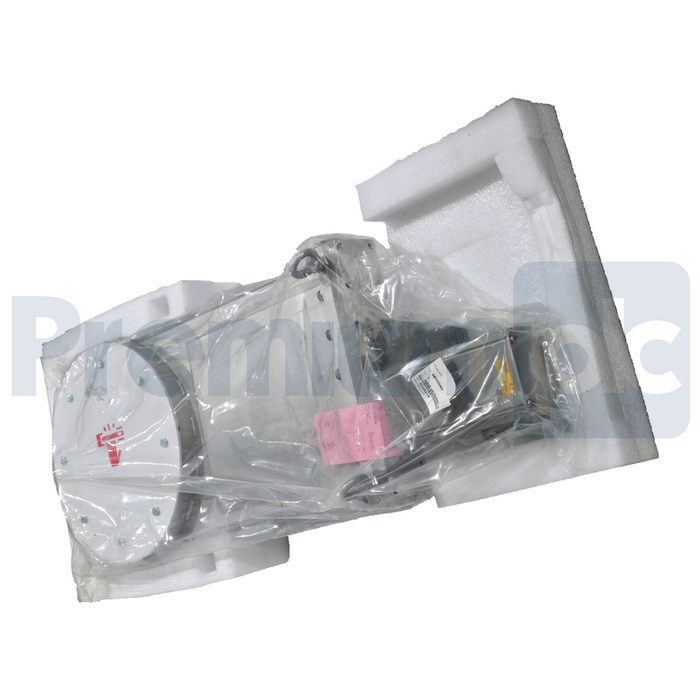

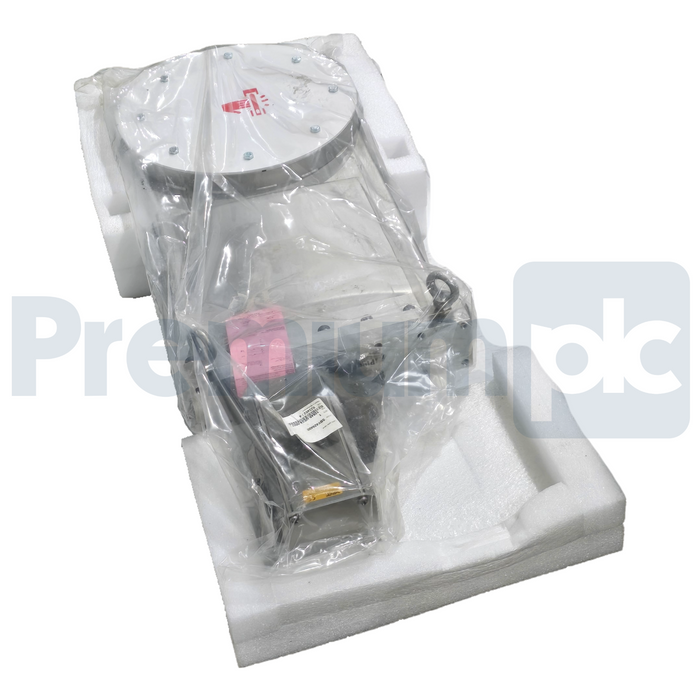

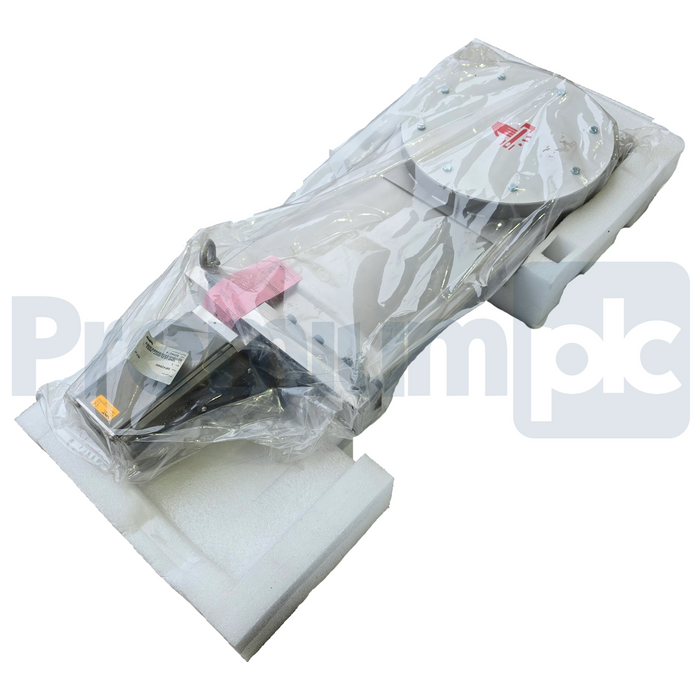

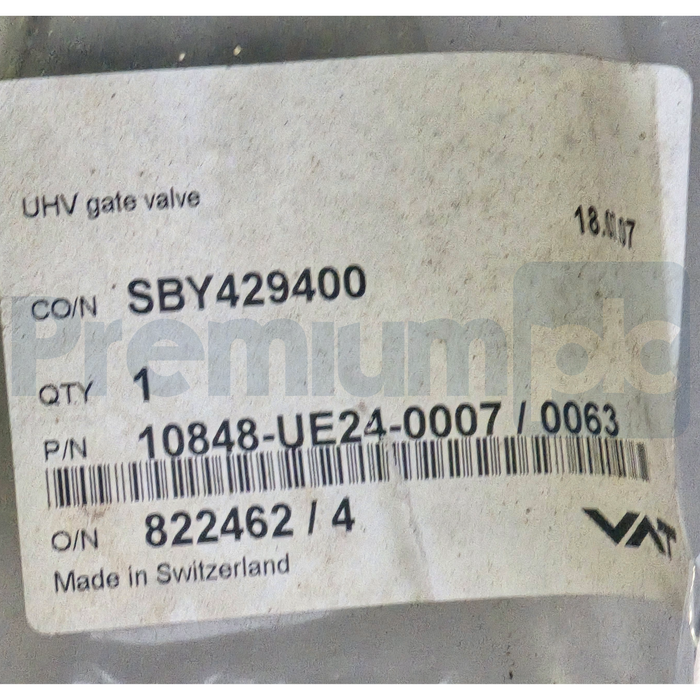

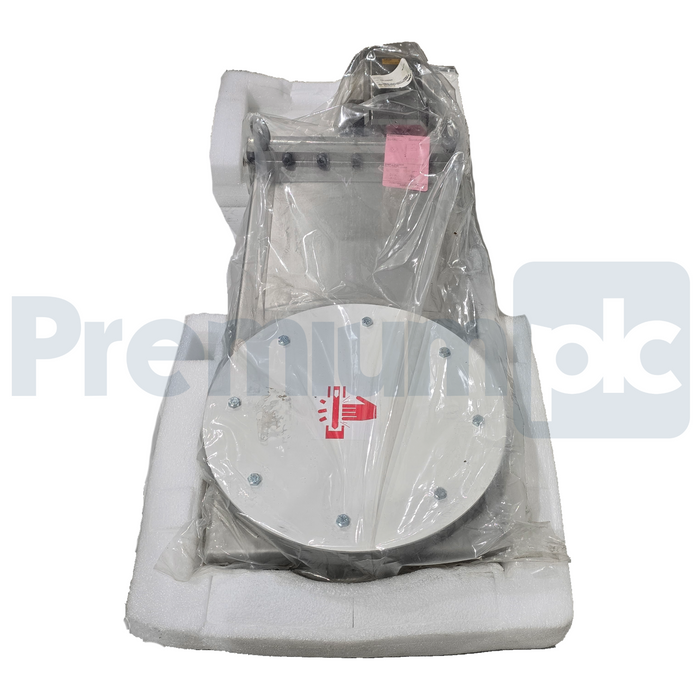

VAT 10848-UE24 10.8 UHV Gate Valve w/Actuator DN 250 (10") 10848-UE24-0007/0063
$8,750.00
VAT 10848-UE24 Series 10.8 UHV Gate Slide Valve DN 250 (10") 10848-UE24-0007/0063 NSMP
This listing is for one
VAT 10848-UE24
Ultra-High Vacuum (UHV) gate slide valve from the Series 10.8. It features a robust stainless steel body and a pneumatic, double-acting actuator with position indicators. This model is widely used in demanding UHV isolation applications in semiconductor manufacturing and research environments due to its reliable VATLOCK sealing technology and high-cycle life (up to 50,000 cycles).
Key Specifications
- Brand: VAT Group

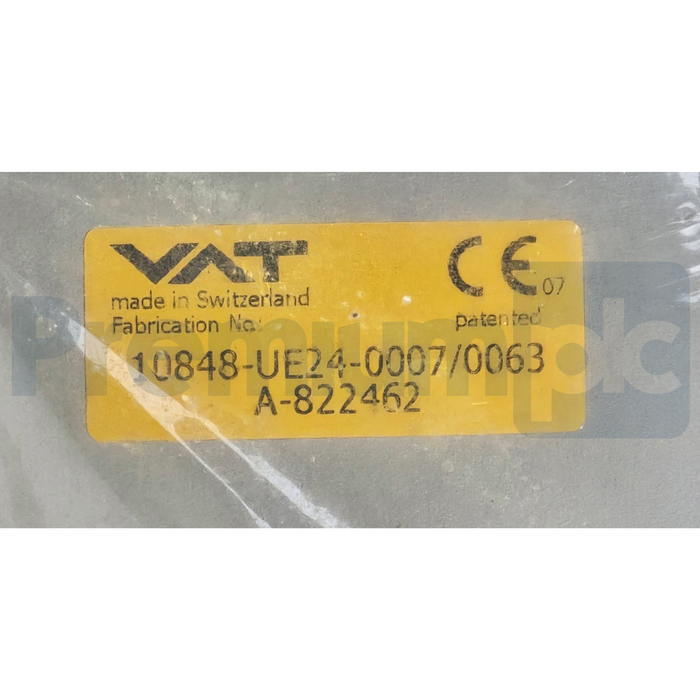

- Model: 10848-UE24 (10848-UE24-0007/0063)
- Series: 10.8
- Type: Ultra-High Vacuum (UHV) Gate Slide Valve
- Inside Diameter (Size): DN 250 (10-inch)
- Flange Type: CF-C (UNF threads) / CF-F (metric threads are also common, verify yours)
- Body Material: Stainless Steel (AISI 304)
- Actuator: Pneumatic, Double Acting (without solenoid valve included)
- Pressure Range: 1 x 10⁻¹⁰ mbar minimum to 1.2 bar (abs) maximum
- Max Differential Pressure (closed): ≤ 1.2 bar
- Molecular Flow Conductance: ~19,990 l/s
- Weight: approx. 50 kg (110 lbs)
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)

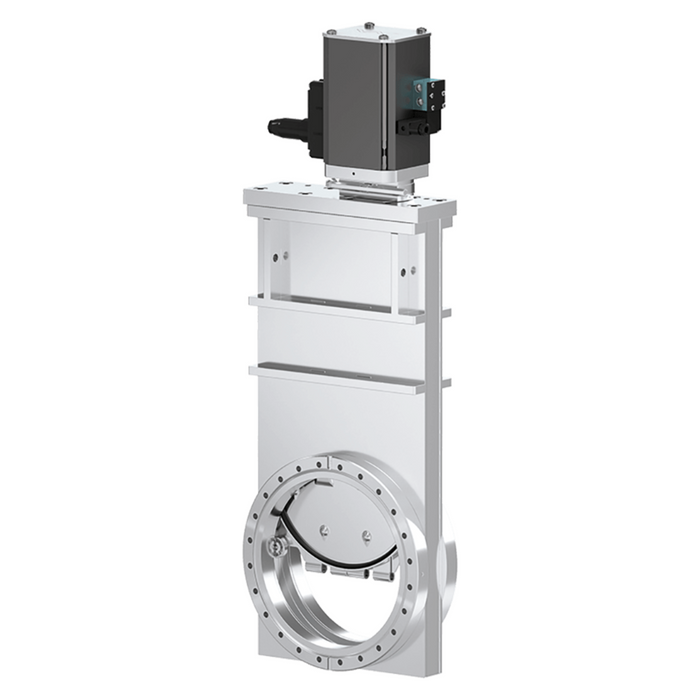

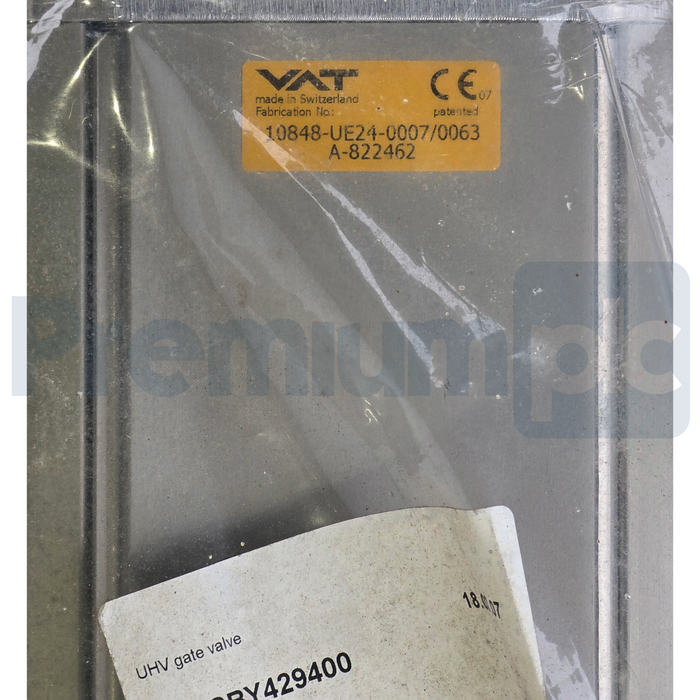

(SECOND PHOTO IS FOR REFERENCE)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
