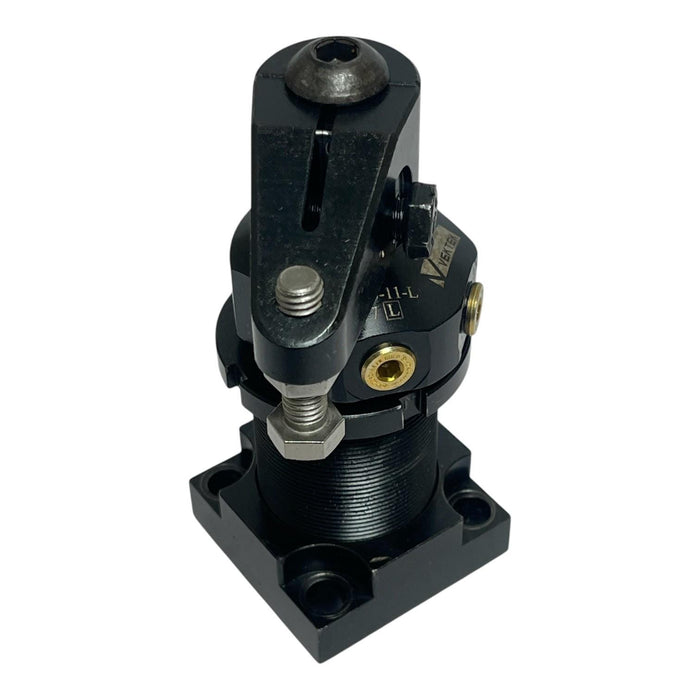

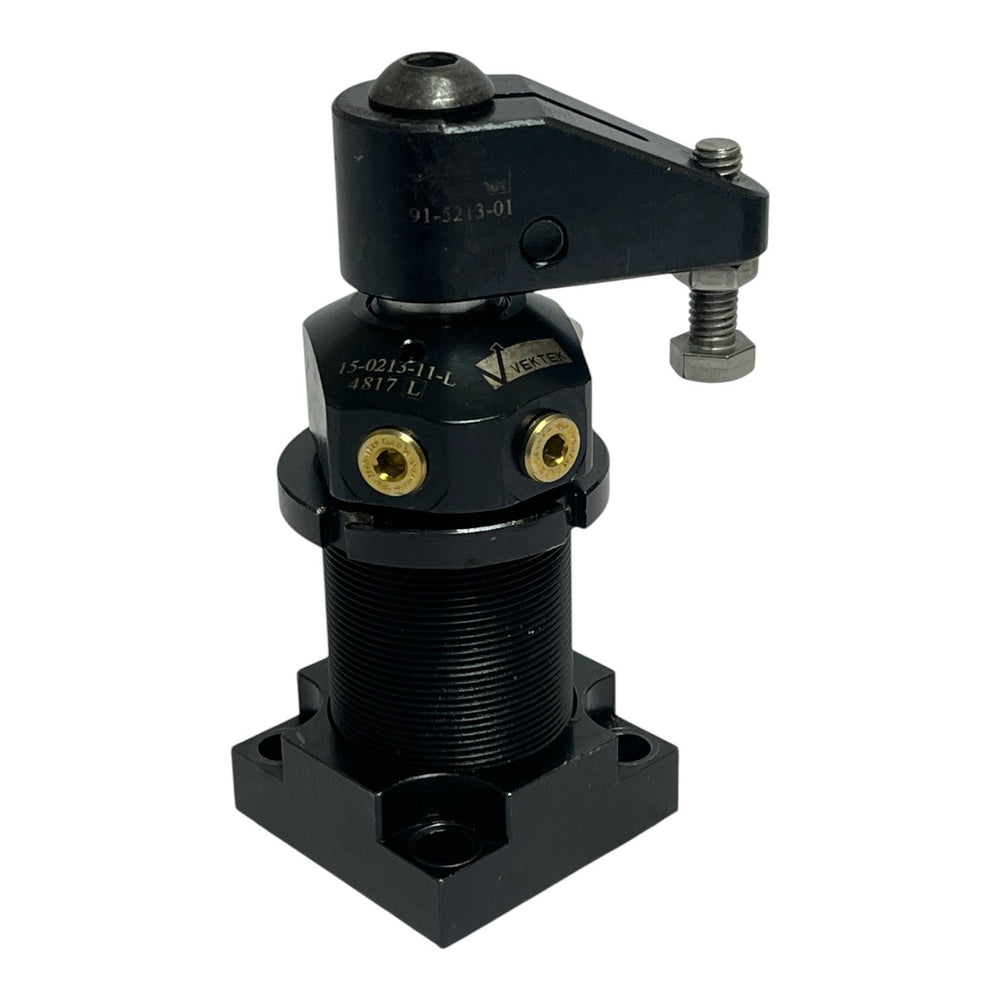

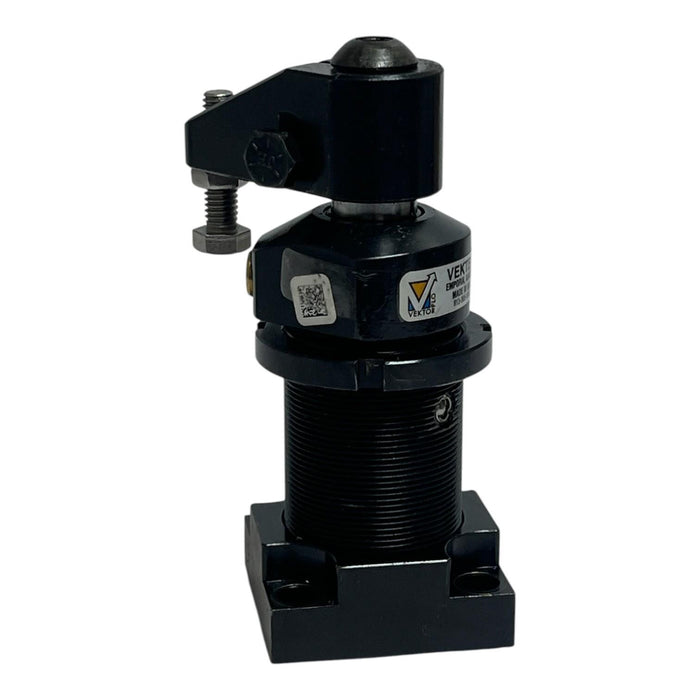

Vektek 15-0213-11-L Hydraulic Swing Clamp w/ 91-5213-01 Arm 2600lb Capacity

Available is a lightly used Vektek 15-0213-11-L hydraulic swing clamp, complete with a 91-5213-01 standard clamp arm. This double-acting unit provides hydraulically powered motion in both the extend and retract cycles, ensuring faster cycle times and more controlled clamping in complex fixtures.

Technical Features

• High Clamping Force: Rated for 2,600 lbs of force at a maximum system pressure of 5,000 PSI, providing rigid hold-down for heavy machining.

• VersaCam Design: Offers a ±0.50° repeatability, ensuring the clamp arm returns to the exact same position every time, which is critical for high-precision automated runs.

• Threaded Body Mounting: The 1 7/8-16 threaded body allows for flexible height adjustment and secure installation directly into the fixture plate.

• Included Arm: Equipped with the Vektek 91-5213-01 standard arm, featuring a tapered connection for a slip-free grip.

Condition

• Status: Lightly used.

• Functionality: Pulled from a low-cycle testing environment. The piston moves smoothly under pressure, and the seals are in excellent condition with no signs of leaking.

• Cosmetic Condition: Good condition. The threaded body is clean with no cross-threading. Shows very minor surface scuffs on the top of the piston and the clamp arm, typical of light industrial use.
