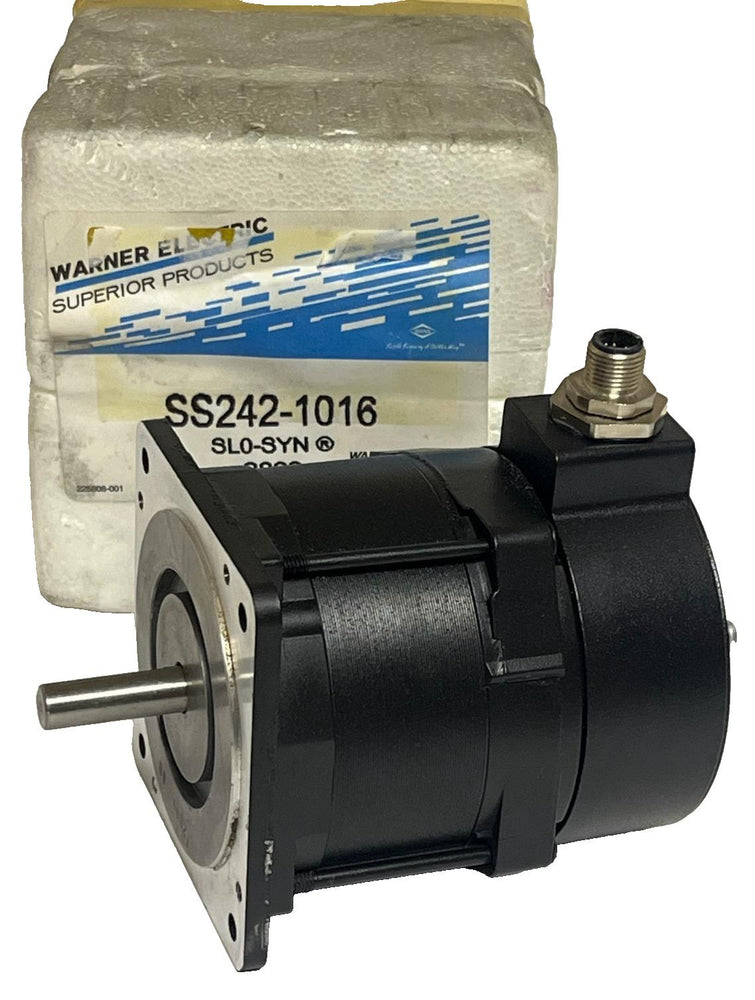

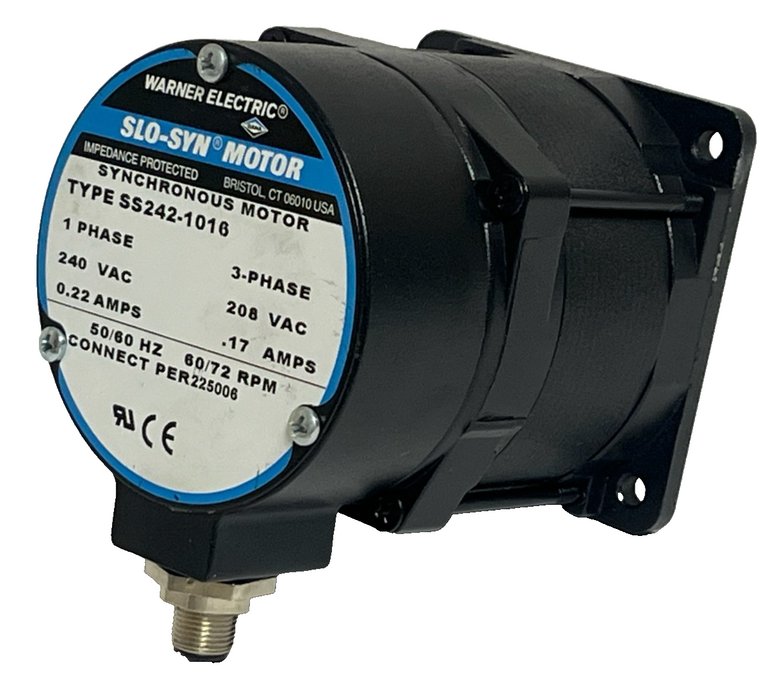

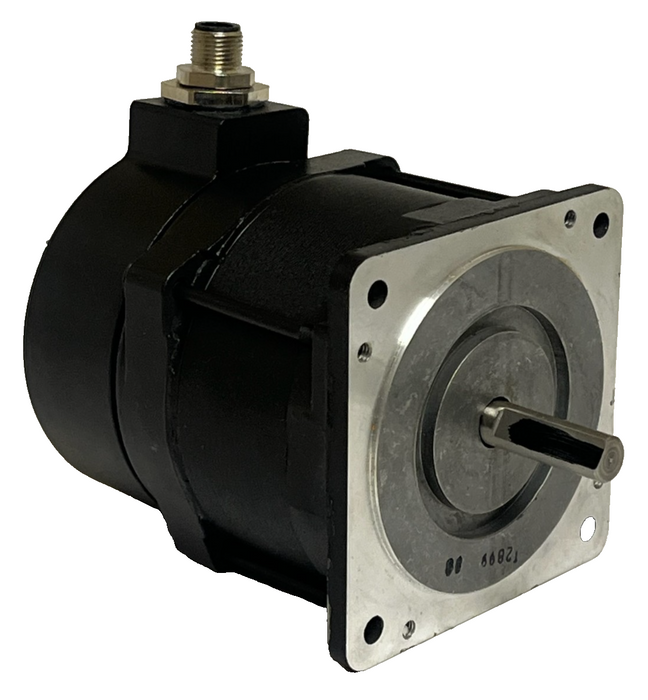

Warner Electric SLO-SYN SS242-1016 Synchronous Motor 240V 72RPM 240oz-in NSMP
Warner Electric SLO-SYN SS242-1016 Synchronous Motor 240V 72RPM 240oz-in
The SLO-SYN SS242-1016 is a heavy-duty AC synchronous motor designed for applications requiring high torque, constant speed, and instant start/stop/reverse capabilities. Manufactured by Superior Electric (Warner Electric/Kollmorgen), the SS series is the industry standard for precision slow-speed motion.
This permanent magnet motor is "impedance protected," meaning it can be stalled indefinitely without the risk of overheating or electrical damage—making it ideal for valve actuation, feeding mechanisms, and heavy-duty industrial positioning.
Key Technical Specifications
Manufacturer: Warner Electric / Superior Electric
Model: SS242-1016
Type: AC Synchronous Motor
Input Voltage: 240V AC
Frequency: 60 Hz (72 RPM) / 50 Hz (60 RPM)
Phase: 1-Phase (requires resistor/capacitor network) or 3-Phase compatible
Torque: 240 oz-in (Minimum)
Current: 0.2 Amps
Frame Size: NEMA 34
Shaft: Single-ended Stainless Steel
