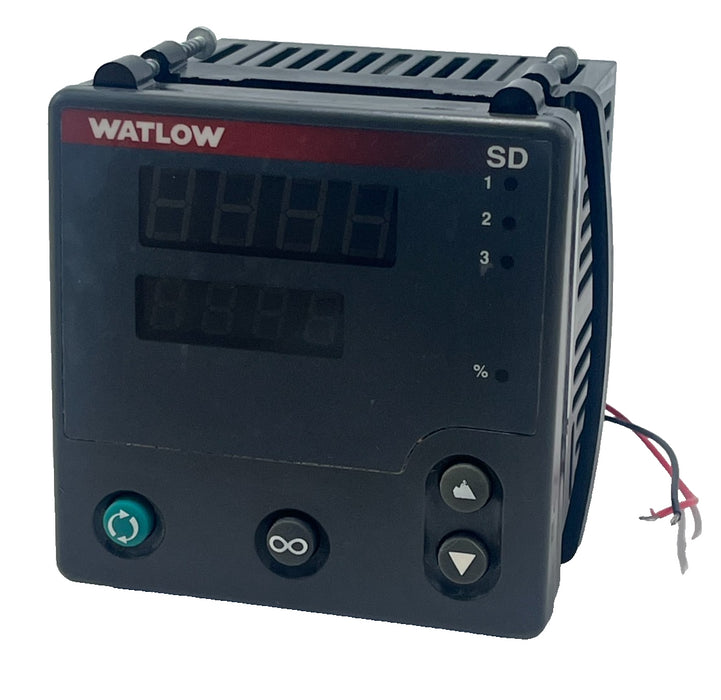

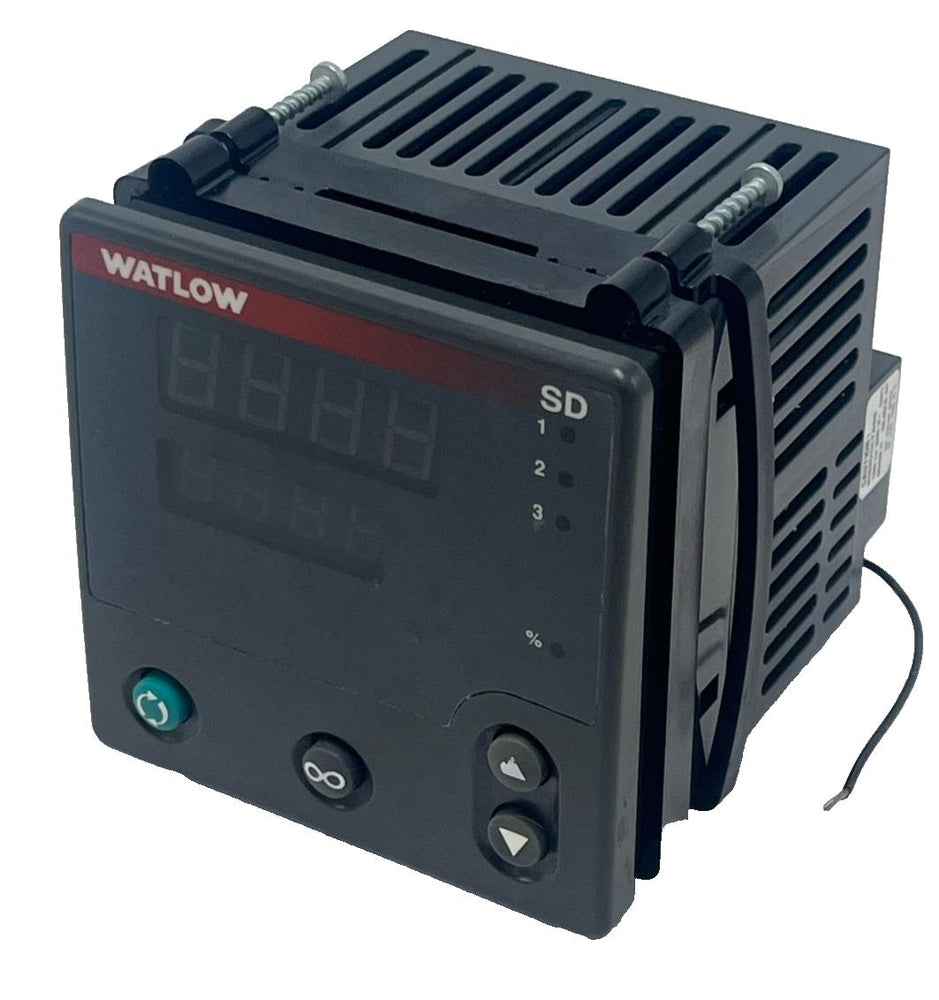

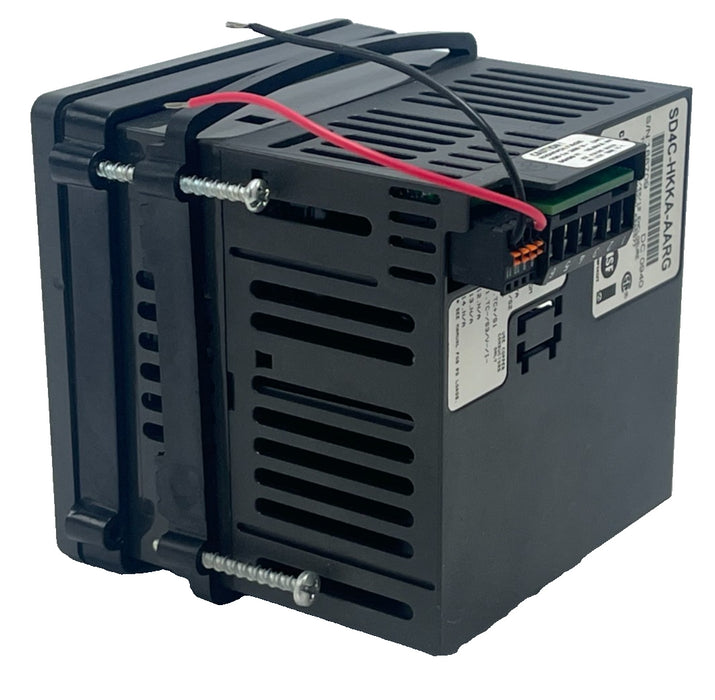

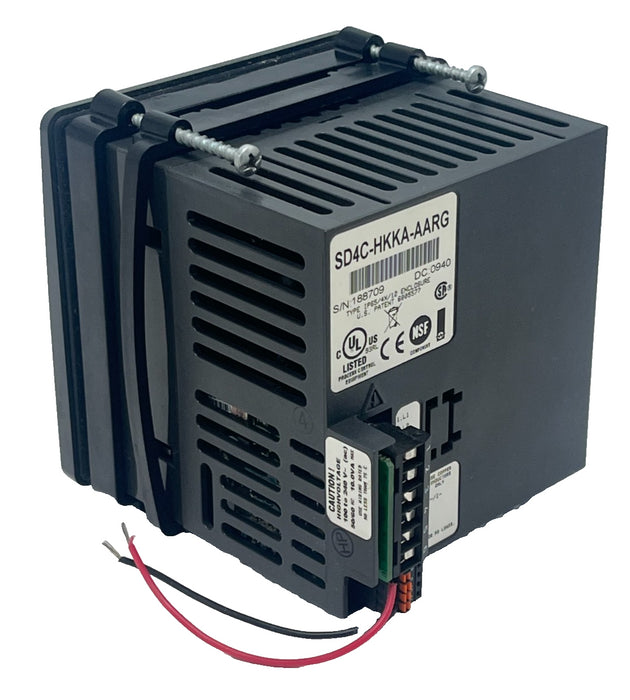

WATLOW SD4C-HKKA-AARG Temperature Controller SCR Power Control 40A 480V
$350.00
WATLOW SD4C-HKKA-AARG Temperature Controller SCR Power Control 40A 480V
LIGHTLY USED ITEM IN VERY GOOD CONDITION
Product Details
The Watlow SD4C-HKKA-AARG is a single-loop, single-phase DIN-A-MITE solid state power controller (SCR), often used in industrial heating applications as a sophisticated "temperature controller" when paired with a process input signal. It is designed to provide reliable, high-power switching control. The "DIN-A-MITE" series is known for its compact size, robust performance, and easy integration into control cabinets (DIN rail mounting).
Key Features:
- Solid State Reliability: Uses SCR technology for fast, reliable switching and long life, superior to mechanical relays.
- High Current Capacity: Rated for up to 40 amps of current output.
- Universal Input: Accepts common industrial inputs (4-20mA or 0-10 VDC) from a main temperature control source (like a PLC or PID controller).
- Integrated Heat Sink: Features a built-in heat sink for efficient thermal management.
Specifications & Configuration (Decoded from Part Number SD4C-HKKA-AARG):
- Brand: Watlow
- Model/Part Number: SD4C-HKKA-AARG (SD4CHKKAARG)
- Series: DIN-A-MITE (Power Controller)
- Input Type: H 4-20mA DC or 0-10 VDC
- Output Type: K Solid State Relay (SSR)
- Output Control Mode: K Switched DC Input to AC Output
- Input Voltage Range (Line Voltage): AA 240 to 480 VAC
- Output Amps: RG 40 Amps
- Product Type: SCR Power Controller / Solid State Relay / Temperature Control Module
- Phase: Single Phase
- Mounting: 35mm DIN Rail
- Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
