Rexnord Falk 5307J09A 0794387 Quadrive Gear Reducer 9.131:1 w/Mount & Belt Guard
$9,500.00
Rexnord Falk 5307J09A | 0794387 Quadrive Gear Reducer Ratio: 9:1 (9.131:1) w/Motor Mount, Belt Guard, & Accs.

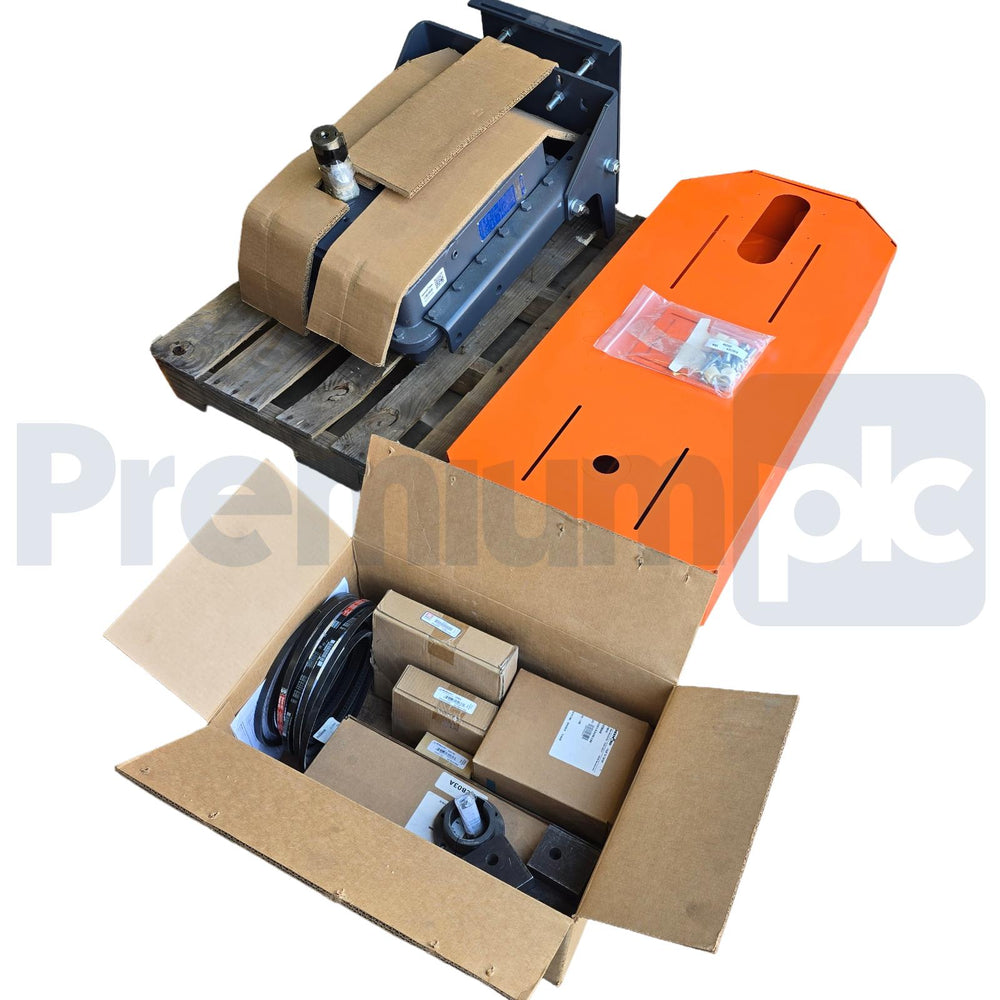

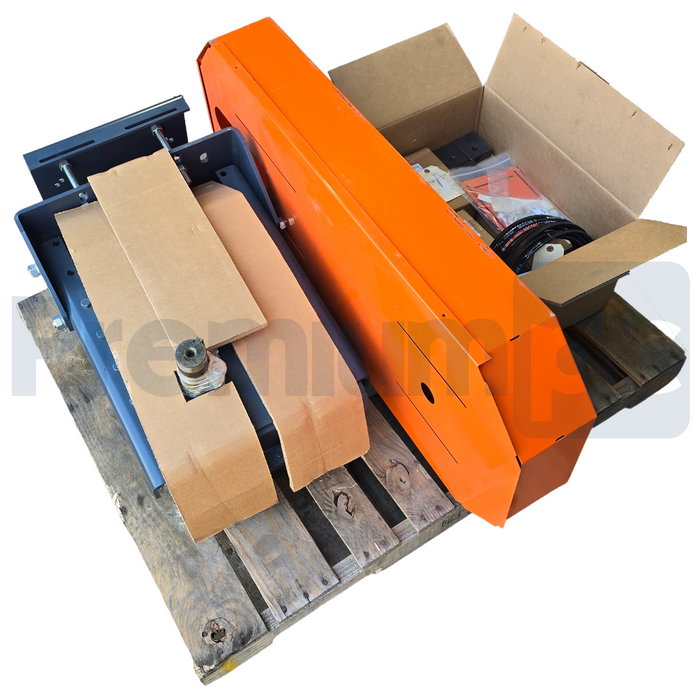

For sale is a complete Rexnord Falk 5307J09A Quadrive assembly. This is a premium, high-efficiency shaft-mounted reducer designed for heavy industrial applications like conveyors, mixers, and crushers. This unit features the "J" design for easier installation and removal compared to standard shaft mounts.

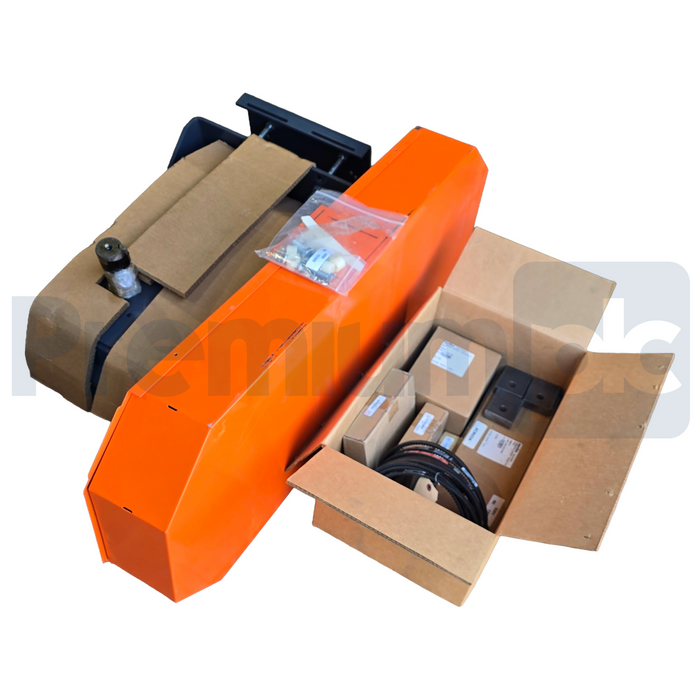

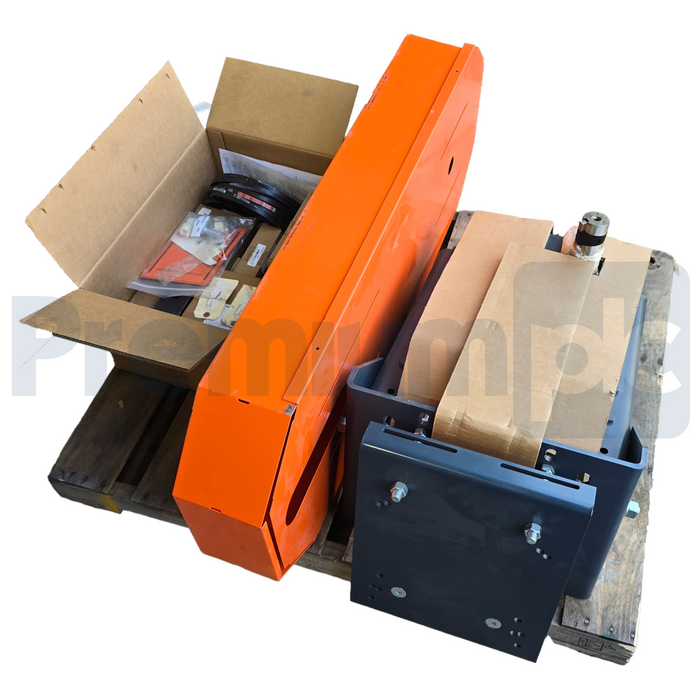

Main Parts

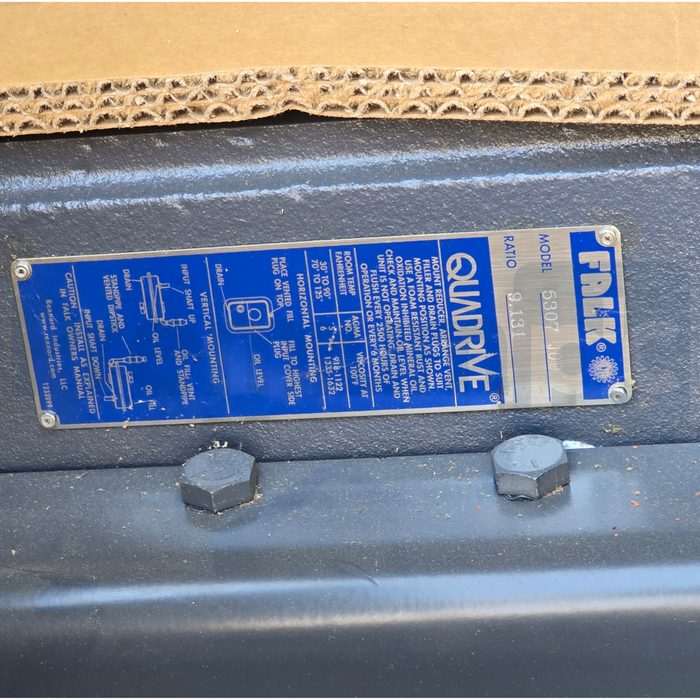

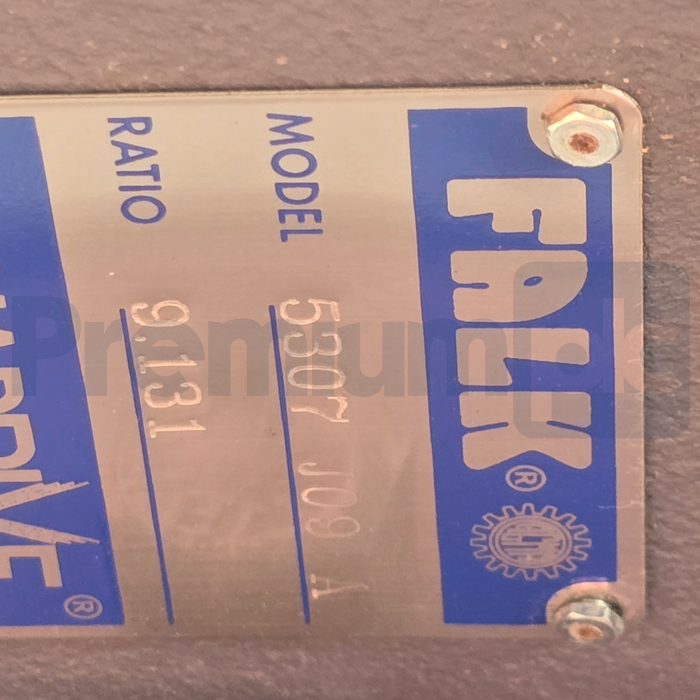

- Main Gear Drive: 5307J09A Reducer unit (Blue).

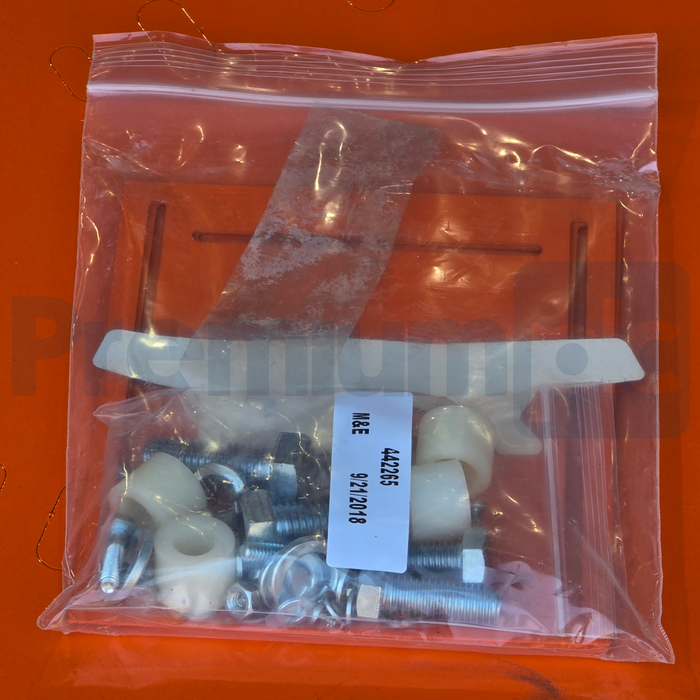

- Protection: Large orange safety belt guard/cover plate.(Includes Hardware Kit As Shown In Photos)
- Motor Mount Kit
Technical Specifications For Gear Drive
- Reducer Size: 5307
- Ratio: 9:1 (Nominal) / 9.131:1 (Exact)
- Input (High Speed) Shaft: 2.125" Diameter x 4.75" Length
- Maximum Input Speed: 1735 - 1768 RPM
- Output (Low Speed) Shaft: 3.4375" Diameter (Hollow)
- Vertical Center Distance: 6.58" (between HSS and LSS centerlines)
- Housing Width: 9.1" through the housing
- Seal Material: Viton (high-temperature protection)

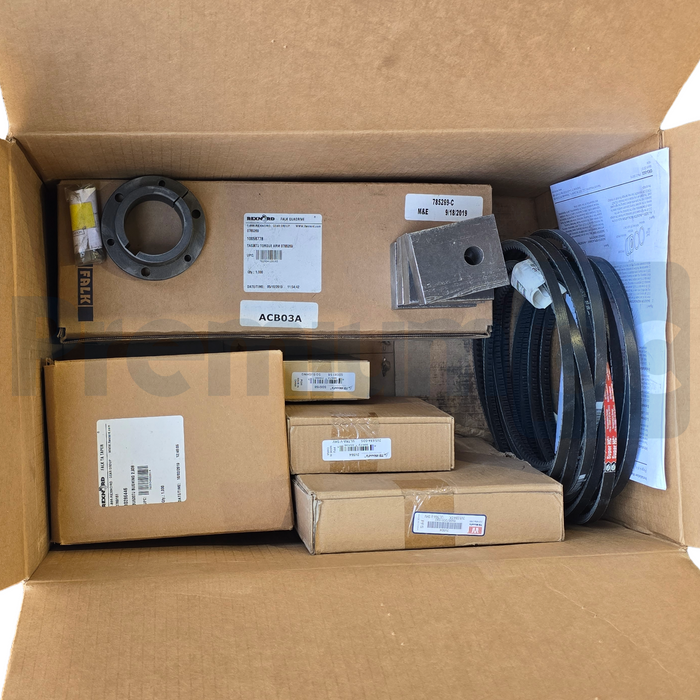

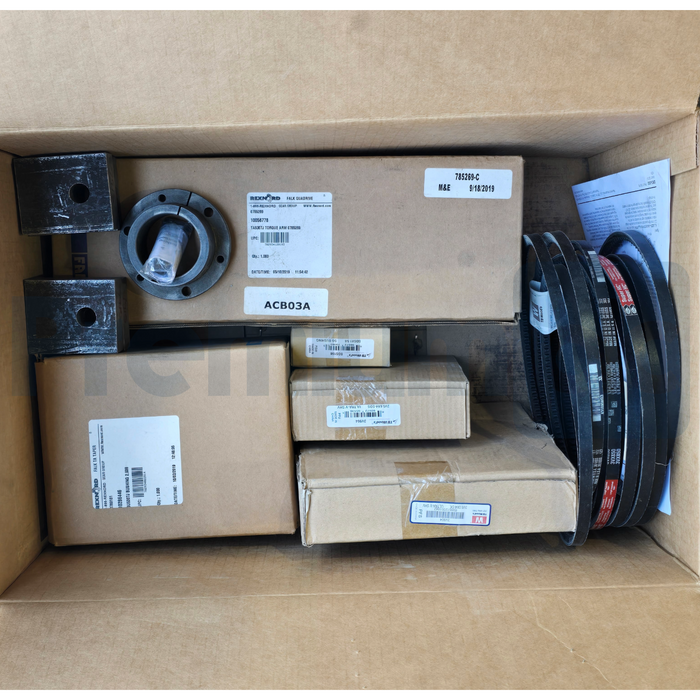

Other Parts Included In Kit:
Rexnord / Falk Parts

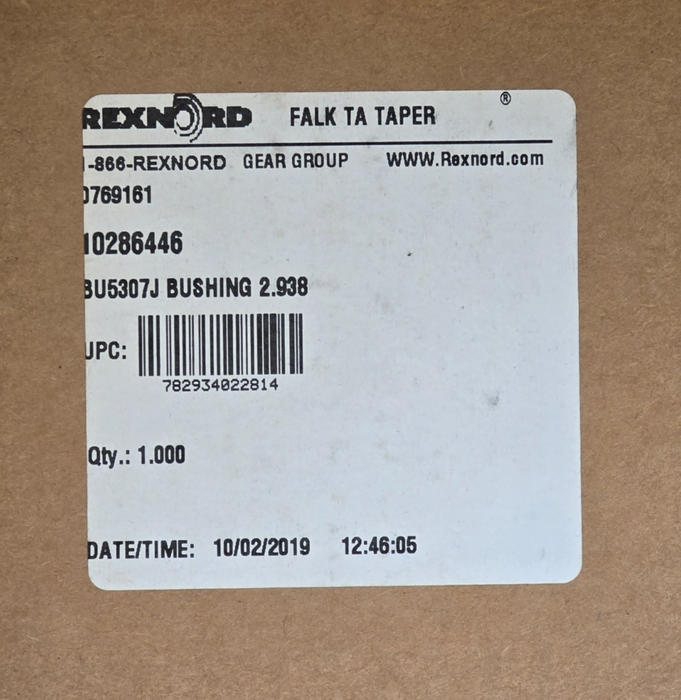

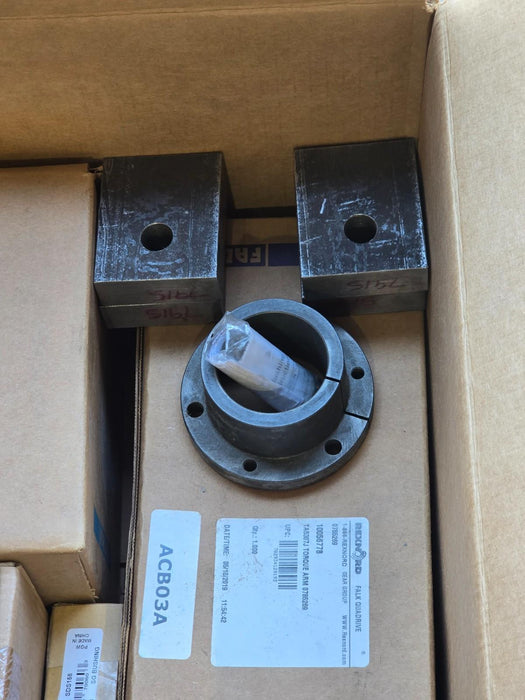

- BU5307J Bushing: Tapered bushing with a 2.938" bore.

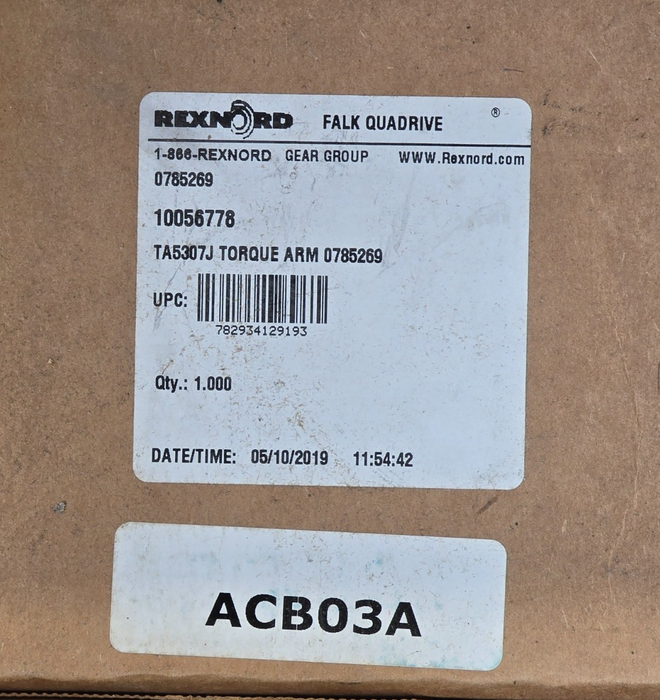

- TA5307J Torque Arm: Part of the Falk Quadrive speed reducer system.
TB Wood’s Parts

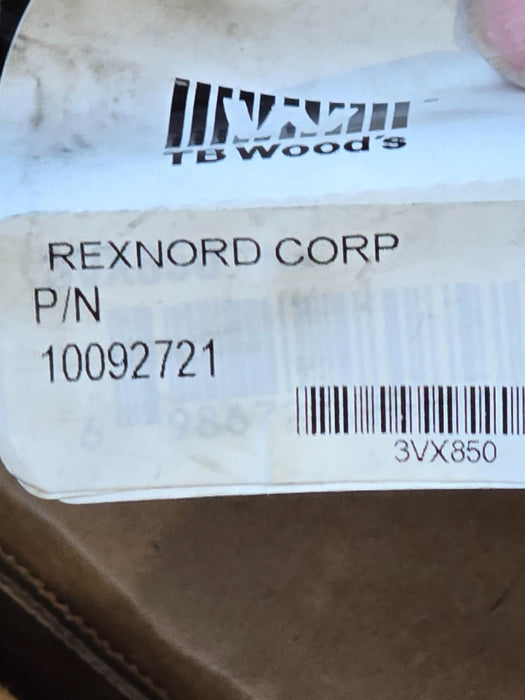

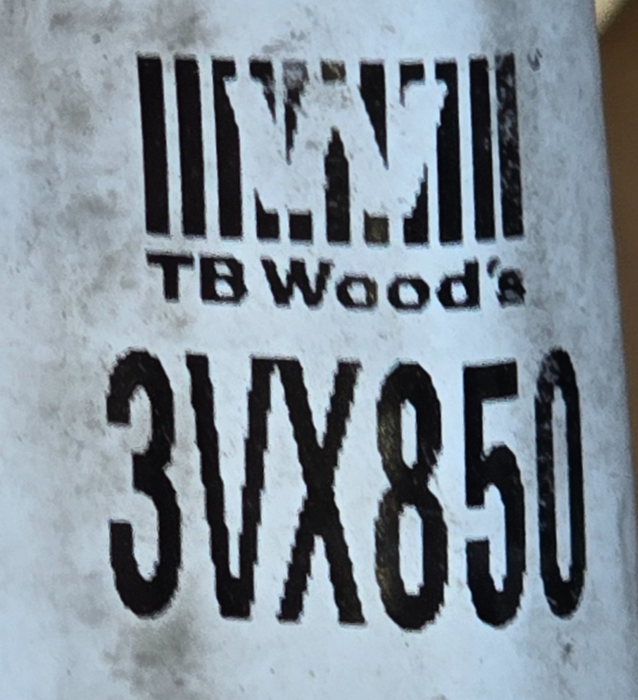

- 3VX850 V-Belts: A high-capacity, cogged Ultra-V belt.

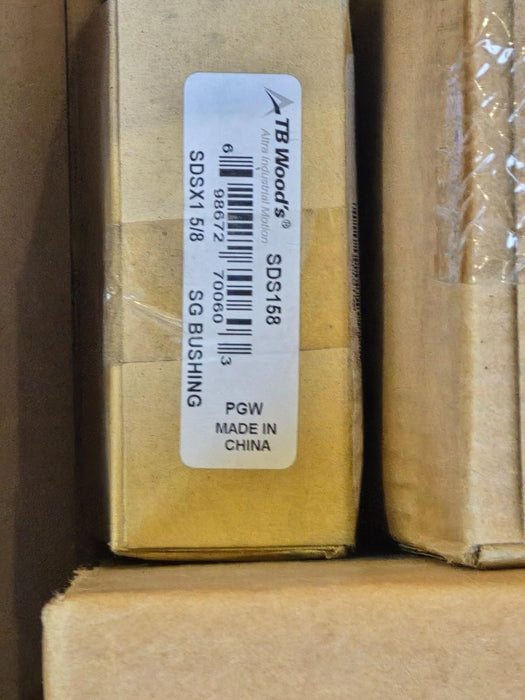

- SDS158 Bushing: A Sure-Grip (SG) bushing with a 1-5/8" bore.

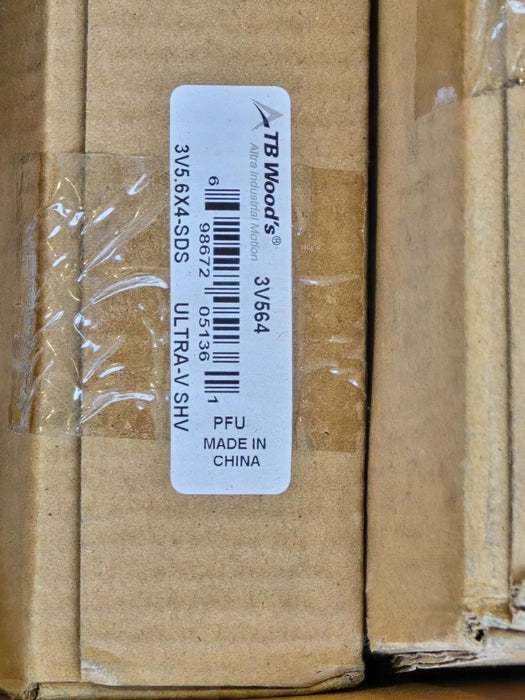

- 3V564 Sheave: An Ultra-V sheave with 4 grooves (dimensions: 3V5.6X4-SDS).

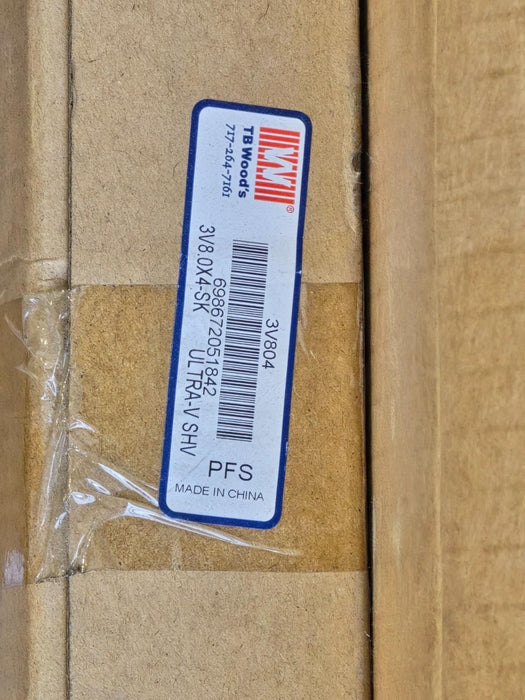

- 3V804 Sheave: An Ultra-V sheave with 4 grooves (dimensions: 3V8.0X4-SK).
- See Photos for More Details And Other Misc Items Included
Shipping & Handling
- Weight: Approx. 350-400 lbs (Total kit).
- Freight: This item will ship via LTL Freight on a standard pallet.
- Local Pickup: Available in Shelby Twp., MI 48315
- Note: Please contact for a specific freight quote or provide a commercial address with a forklift/loading dock for the best rates.
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
(COMES AS SHOWN IN PHOTOS DOES HAVE SOME SHELF WEAR & MINOR MARKS ON THE BELT GUARD)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
