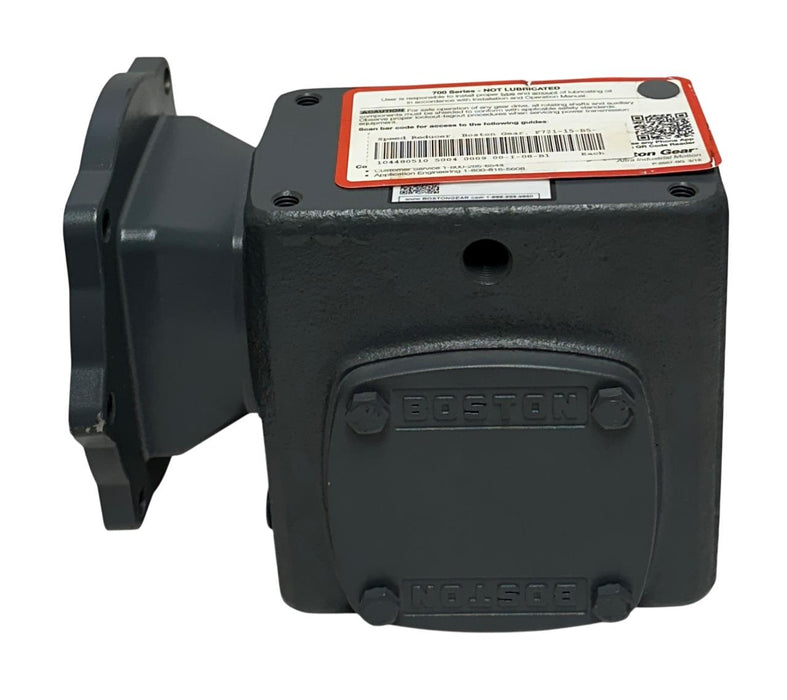

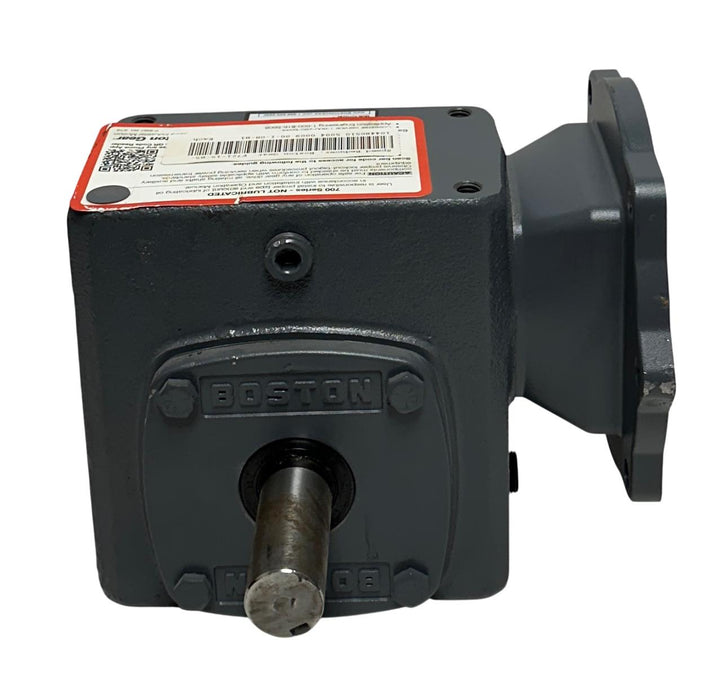

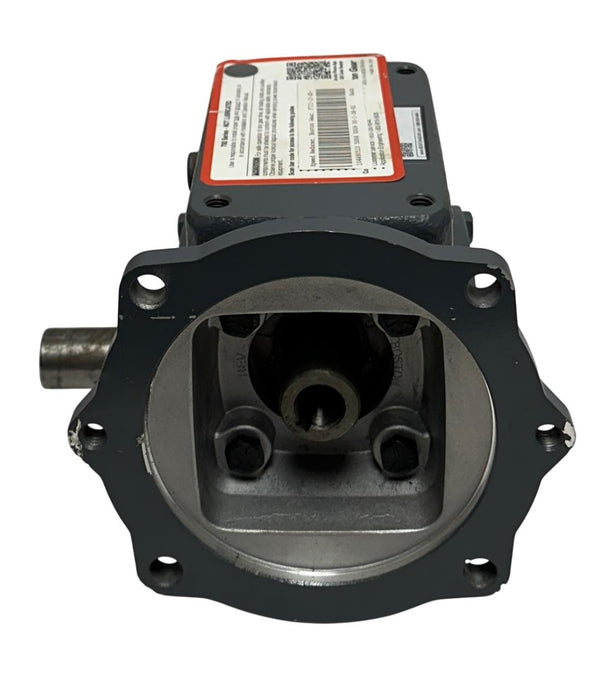

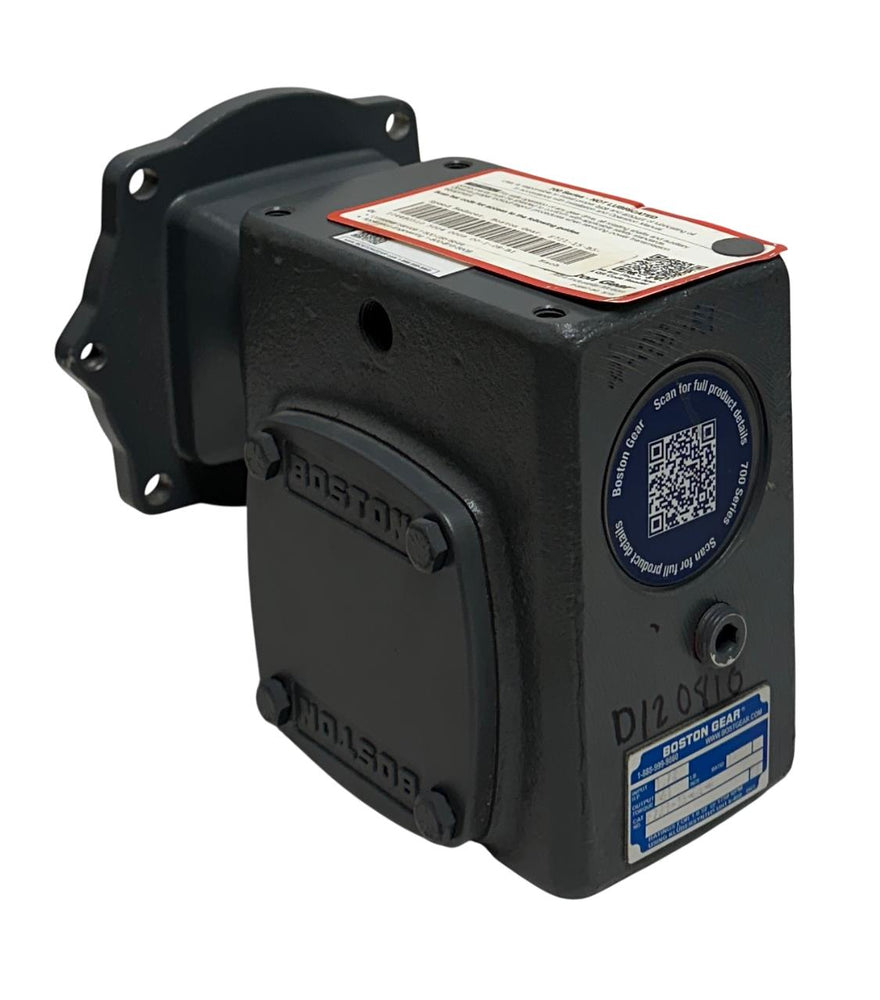

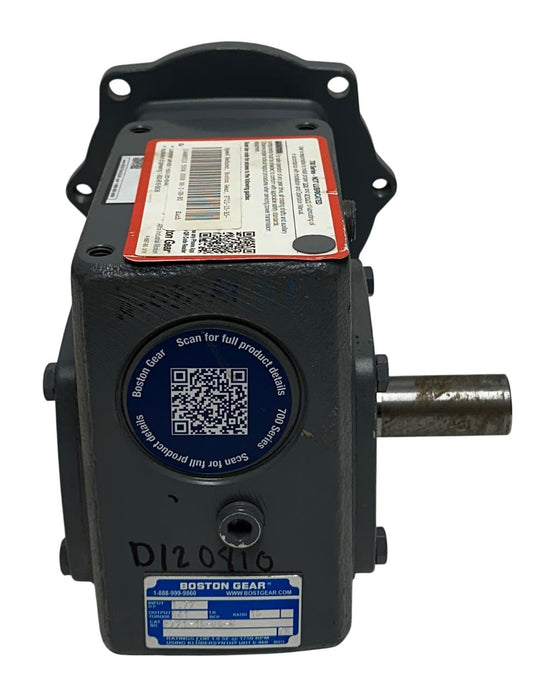

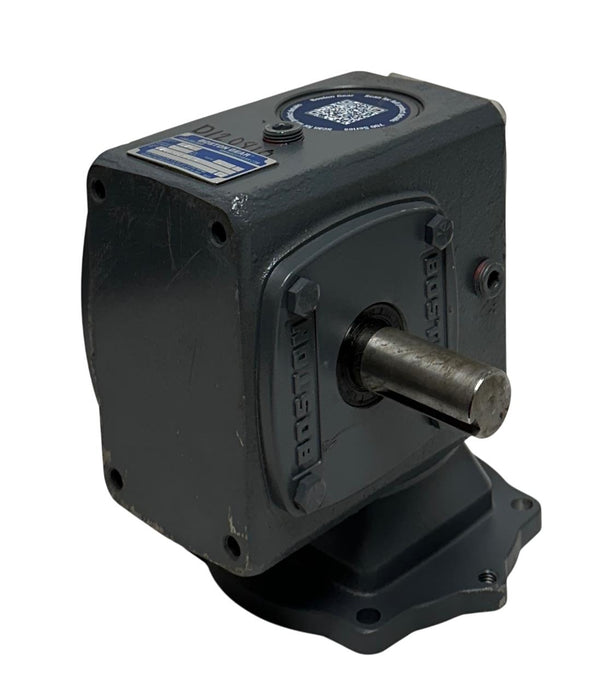

BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP
BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP

BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP

$500.00
BOSTON GEAR F721-15-B5-G / F72115B5G 700 SERIES WORM GEAR REDUCER 15:1 NSNP

  • Center Distance
    2.0600 in
  • Reduction
    Single Reduction
  • Ratio
    15:1
  • Max Input Horsepower
    1.720 hp @ 1750 rpm
  • Input Type
    C-Face Quill
  • Input Size
    0.6250 in
  • Output Type
    Solid
  • Output Size
    1.0000 in
  • Output Direction
    Left Hand
  • NEMA / IEC Frame Size
    56C
  • Maximum Output RPM
    116.700 @ 1750 rpm input
  • Maximum Output Torque
    968 in-lbs @ 100 rpm
  • Housing Material
    Cast Iron
  • Overhung Load Capacity
    700 lb
  • Housing Dimensions
    6 x 3.81 x 6.38 in
  • Housing Height
    6.38 in
  • Housing Length
    6.00 in
  • Housing Width
    3.81 in
  • Standards Met
    AGMA
  • Series
    F700
  • Manufacturer Reducer Size
    721
  • Mounting Type
    No Base
  • Manufacturer Upc Number
    781711519608
  • UPC_NO
    781711519608
  • Weight
    27.00 lbs
  • Lubrication
    No Lube
  • Paint Type
    Gray Paint

CONDITION: NEW SURPLUS NO BOX

WARRANTY: 120 DAYS

SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST
