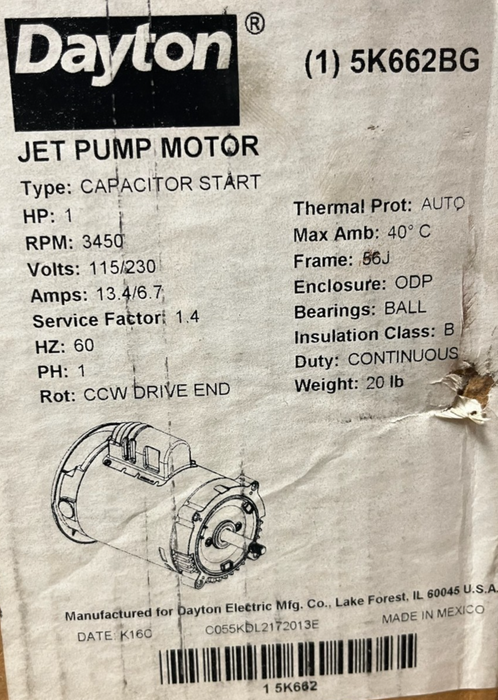

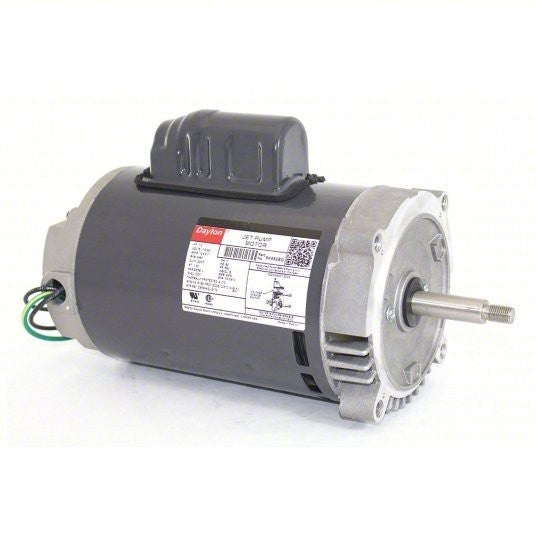

Dayton 5K662BG Jet Pump Motor 1HP 3450RPM 115/230V 56J Frame ODP Single Phase
$250.00
Dayton 5K662BG Jet Pump Motor 1HP 3450RPM 115/230V 56J Frame ODP Single Phase
Technical Specifications:
Model Number: 5K662BG / 5K662
Horsepower: 1 HP
-
Speed: 3450 RPM (High Speed)
-
Phase: Single Phase (1 PH)
-
Voltage: 115/230V AC (Dual Voltage)
-
Amps: 13.4/6.7A
-
Frame Size: 56J (Threaded Shaft)
-
Enclosure: ODP (Open Dripproof)
-
Rotation: Counter-Clockwise Shaft End (CCWSE)
-
Service Factor: 1.4
-
Shaft Diameter: 5/8" Threaded
Key Features:
-
Automatic Thermal Protection: Helps prevent motor burnout from overheating.
Dual Voltage Capability: Pre-wired for 230V but can be easily switched to 115V.
-
Ball Bearings: Heavy-duty ball bearings for long-lasting, quiet operation.
-
Versatile Mounting: Includes a drip-cover kit for vertical mounting or can be mounted horizontally.
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
