B&R X20BM11 Bus Module X20 System Backplane Base 24VDC I/O X20BM11, NSMP
$36.95
B&R X20BM11 Bus Module X20 System Backplane Base 24VDC I/O X20BM11- Brand: B&R Industrial Automation
- MPN: X20BM11
- Model: X20 System
- Type: Bus Module / Backplane Base
- Voltage: 24 VDC (I/O Supply)
- Mounting: 35mm DIN Rail
- Country/Region of Manufacture: Austria
- Industry: Industrial Automation / PLC Systems

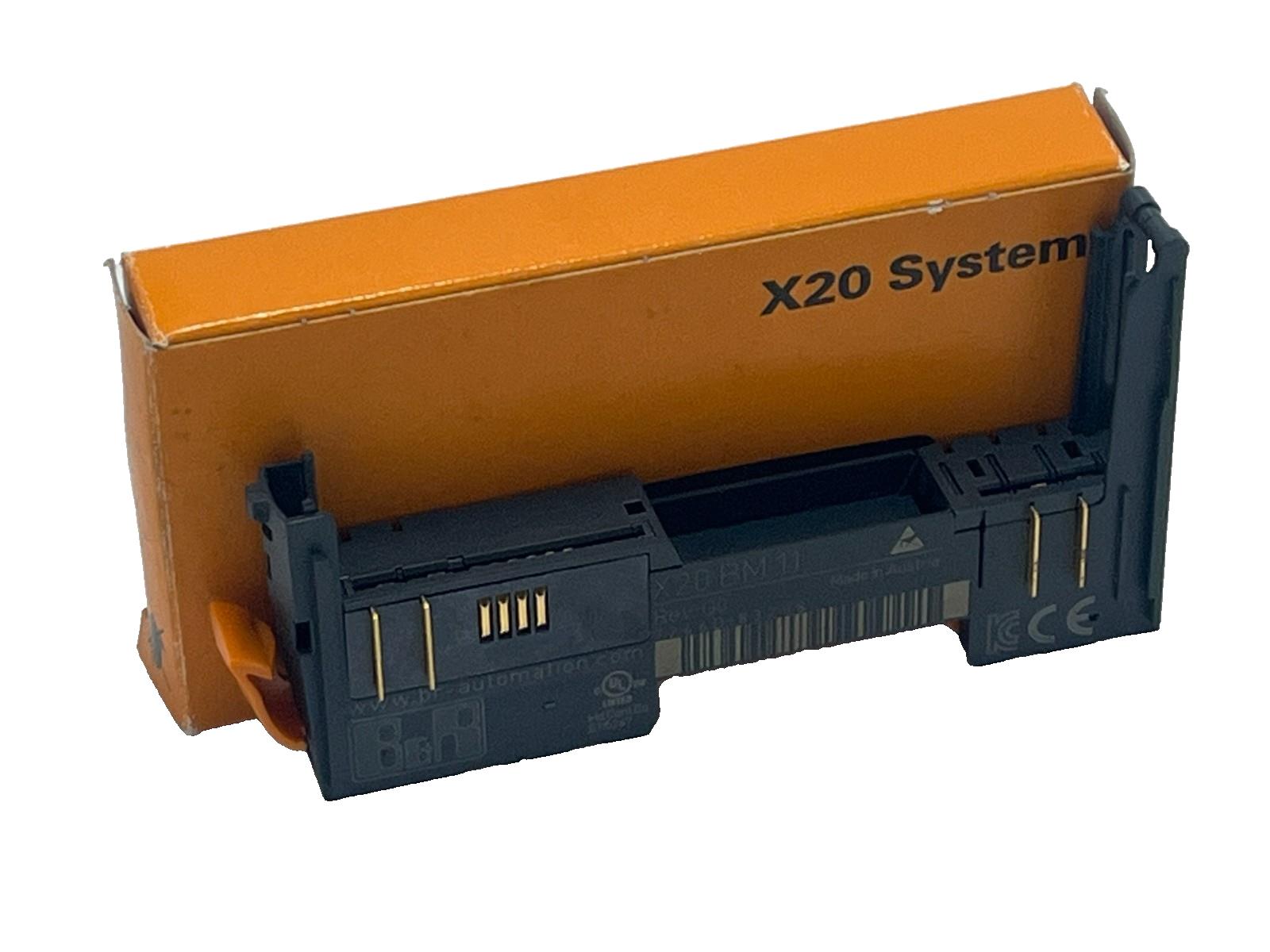

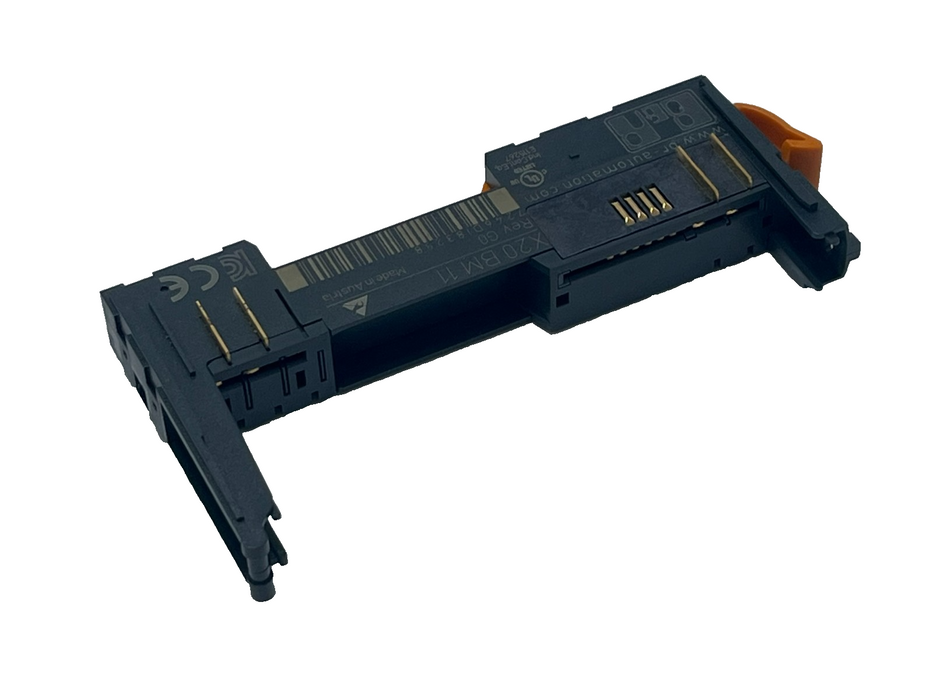

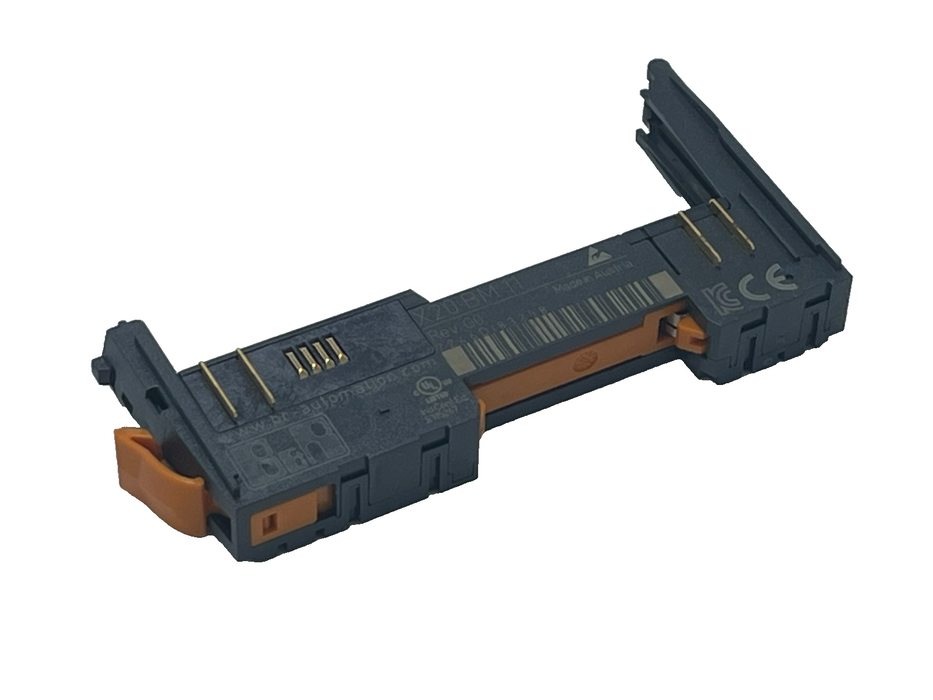

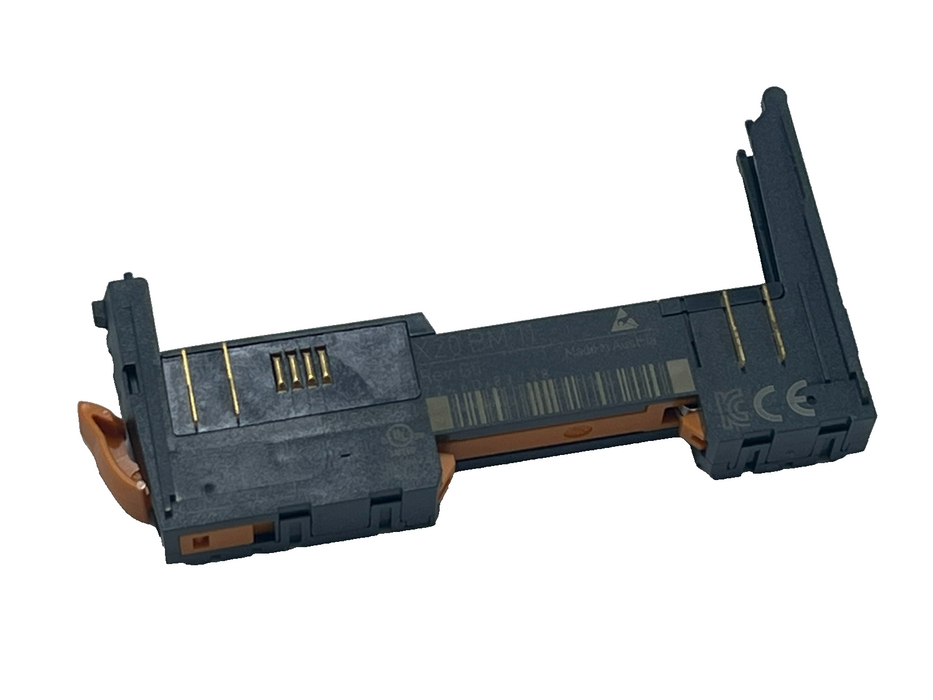

B&R Industrial Automation X20BM11 Bus Module
This listing is for a genuine B&R X20BM11 bus module. This is a foundational base module for the B&R X20 System, serving as the backplane that provides both the internal communication bus (X2X Link) and the internal I/O power supply distribution for X20 I/O modules.
The X20BM11 is a "standard" bus module with an integrated supply for the I/O power bus. It allows for the modular assembly of the X20 system, where the bus module is mounted to the DIN rail first, establishing the backplane connection, followed by the electronic module and terminal block. This design allows for easy maintenance and "hot-swapping" of electronics without disturbing the field wiring.
Key Features:
- Integrated Power Bus: Distributes 24 VDC I/O power to subsequent modules in the rack.
- X2X Link Communication: Establishes the internal data path between the PLC CPU/Bus Controller and the I/O modules.
- Modular Flexibility: Supports the 3-part modularity of the X20 system (Bus module, Electronic module, Terminal block).
- Tool-Free Mounting: Snaps securely onto standard 35mm DIN rails.
- Gold-Plated Contacts: High-quality 8-pin bus contacts ensure reliable data and power transmission in industrial environments.
Specifications:
| Feature | Detail |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | X20BM11 |
| System | B&R X20 Series |
| Bus Interface | X2X Link (Internal) |
| I/O Power Bus | Internal 24 VDC distribution |
| Weight | Approx. 0.045 kg |
| Operating Temp | -25°C to +60°C |

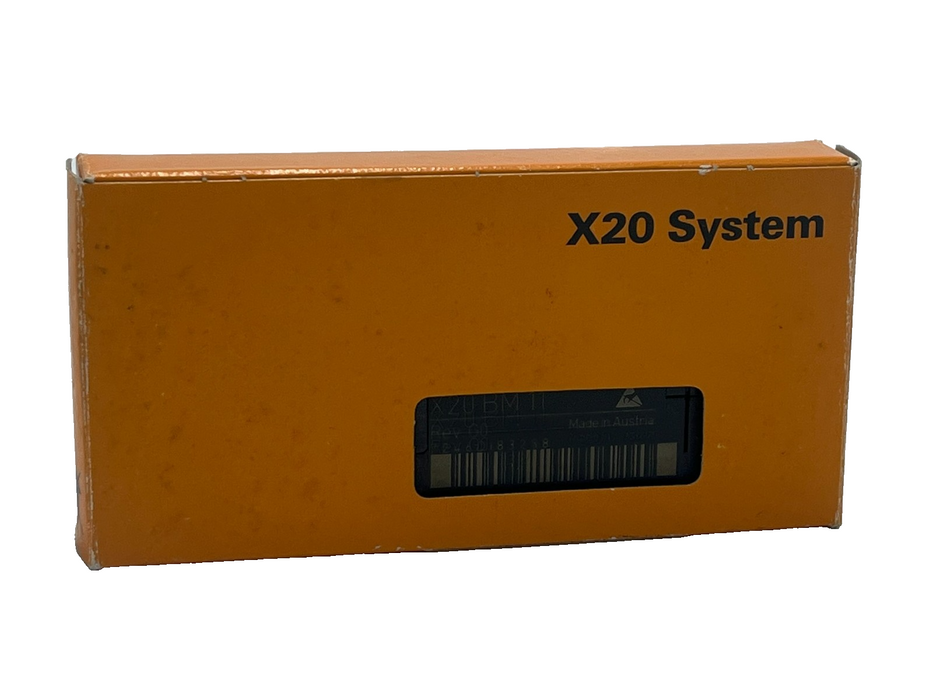

CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
