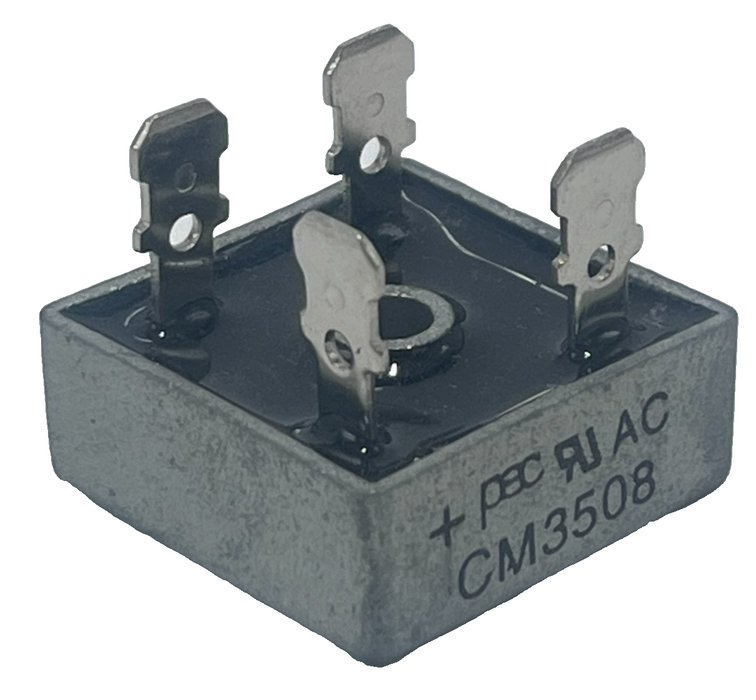

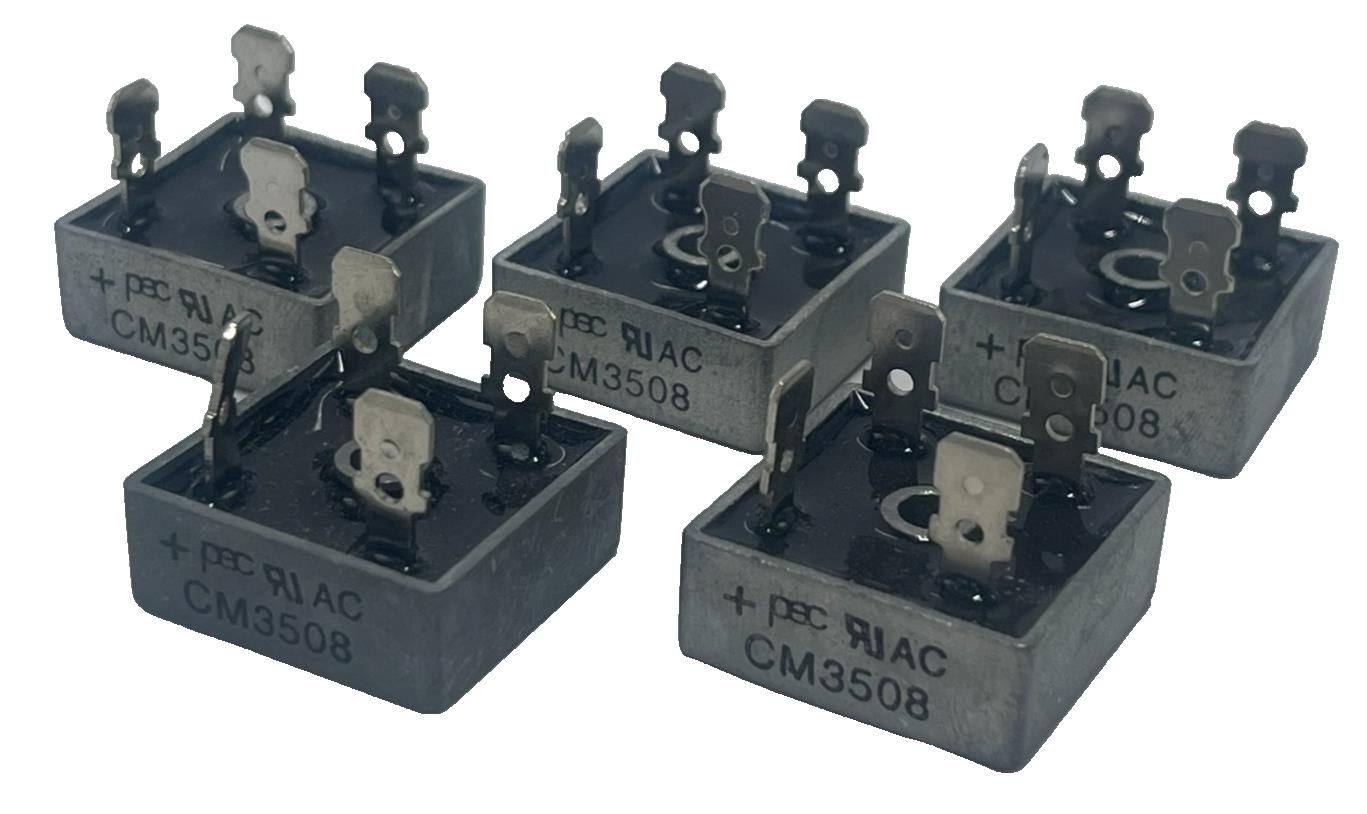

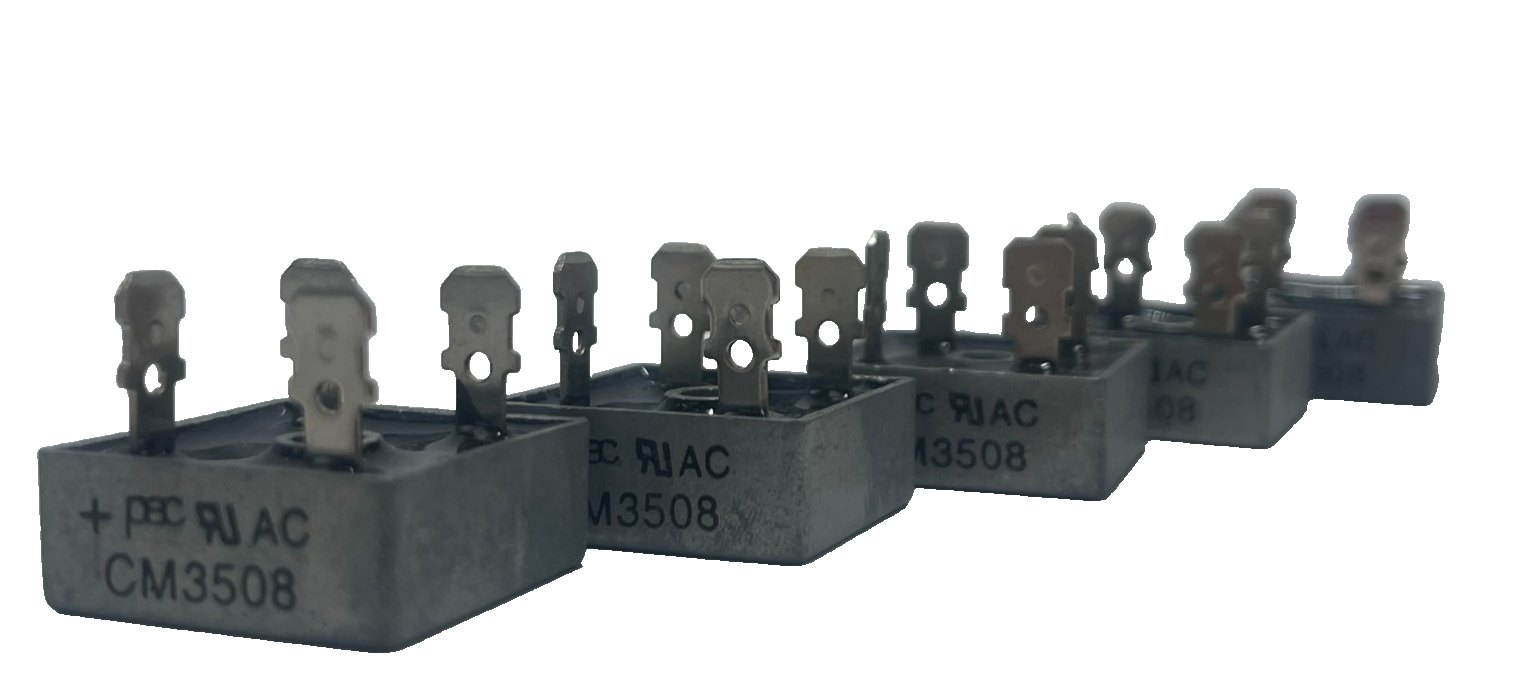

LOT OF 5 PEC CM3508 Bridge Rectifier Diode Module 35A 800V Single Phase
Sold out
$59.95
LOT OF 5 PEC CM3508 Bridge Rectifier Diode Module 35A 800V Single PhaseKey Features:
- High Current Capacity: Rated for a reliable 35 Amp continuous forward current.
- High Voltage Rating: 800V peak inverse voltage protects against standard industrial voltage spikes.
- Single-Phase Full Wave: Provides efficient AC-to-DC conversion for industrial power needs.
- Chassis Mount: Designed with a robust metal baseplate and central mounting hole for effective heat dissipation.
- Quick Connect Terminals: Standard 4-pin configuration with quick-connect/solder terminals for easy installation.
- Genuine PEC Part: Ensures compatibility and reliable performance in demanding power applications.
Technical Specifications (2026 Reference Data):
| Feature | Detail |
|---|---|
| Manufacturer | PEC (Power Electronic Corporation) |
| Part Number | CM3508 |
| Max Continuous Current | 35 Amps (at 55°C case temp) |
| Max Peak Reverse Voltage | 800 V |
| Configuration | Single Phase |
| Mounting | Panel/Chassis Mount (Single Hole) |
| Terminal Type | 0.25" Quick Connect (6.35mm) |
| Max Surge Current | ~300 Amps peak (non-repetitive) |
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
