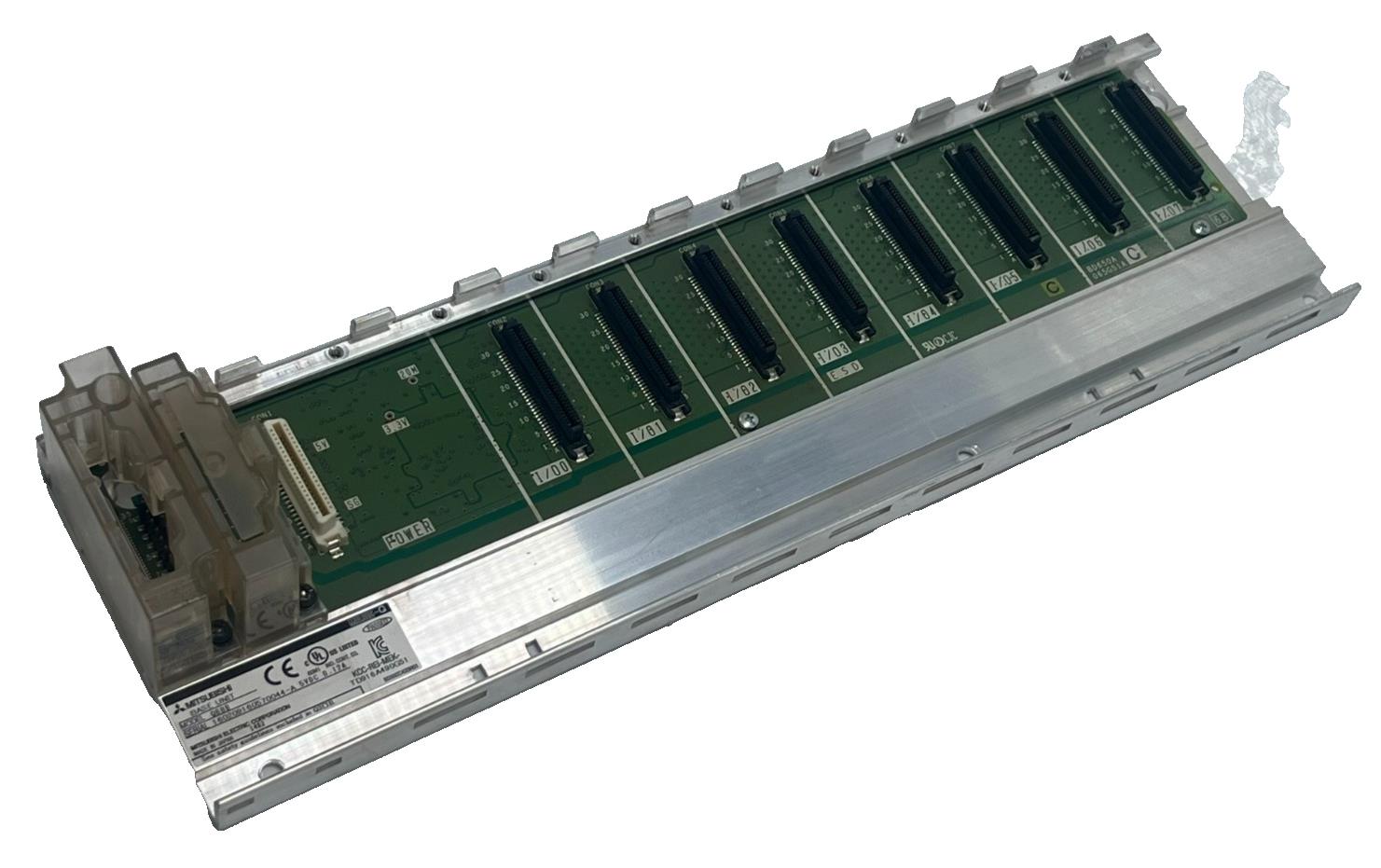

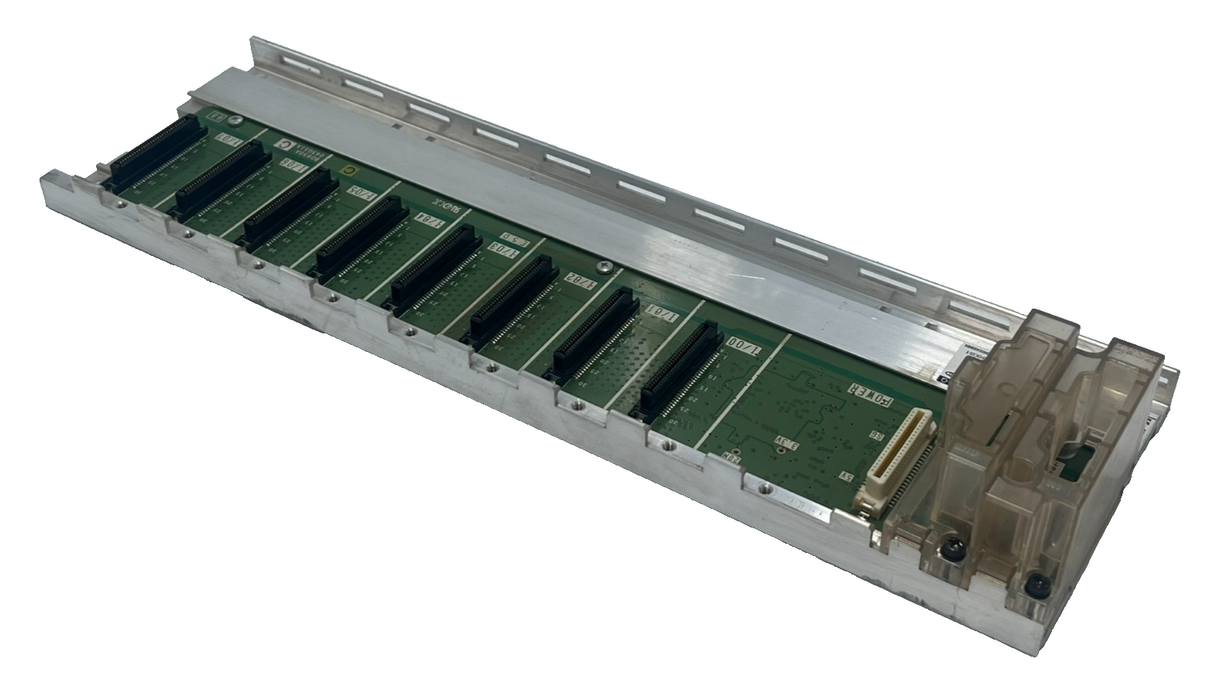

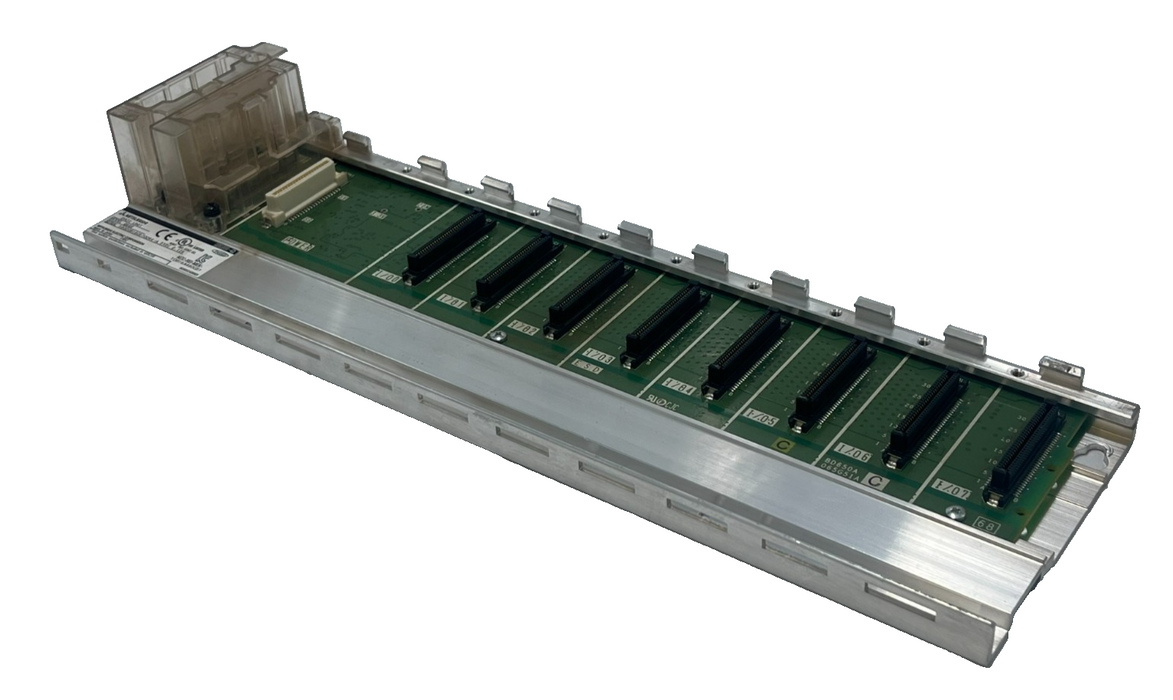

Mitsubishi Q68B MELSEC-Q Series 8-Slot Extension Base Unit - PLC Rack Module

Mitsubishi Q68B MELSEC-Q Series 8-Slot Extension Base Unit - PLC Rack Module

GOOD CONDITION, NO MAJOR FLAWS

Key Features & Capabilities

• 8 Expansion Slots: Accommodates up to 8 I/O or special function modules to scale your industrial control system.

• Dedicated Power Slot: Includes a slot for an additional power supply module (e.g., Q61P, Q62P, Q63P) to ensure stable power distribution across all modules.

• Scalable Architecture: Supports connection of up to 7 extension units per main base unit, allowing for a maximum of 64 modules.

• Robust Communication: Enables high-speed data exchange and power distribution through dedicated assembled bus cables.

• Compact Industrial Design: Rated for reliable operation in temperatures up to 55°C and features an IP20-style protective layout.

Technical Specifications

• Dimensions: 328 mm x 98 mm x 44.1 mm (Approx. 12.9" x 3.8" x 1.7")

• Weight: Approximately 0.38 kg (0.84 lbs)

• Internal Current Consumption: 0.12A (5V DC)

• Installation: Compatible with Q6DIN1 adapters for standard DIN rail mounting.
