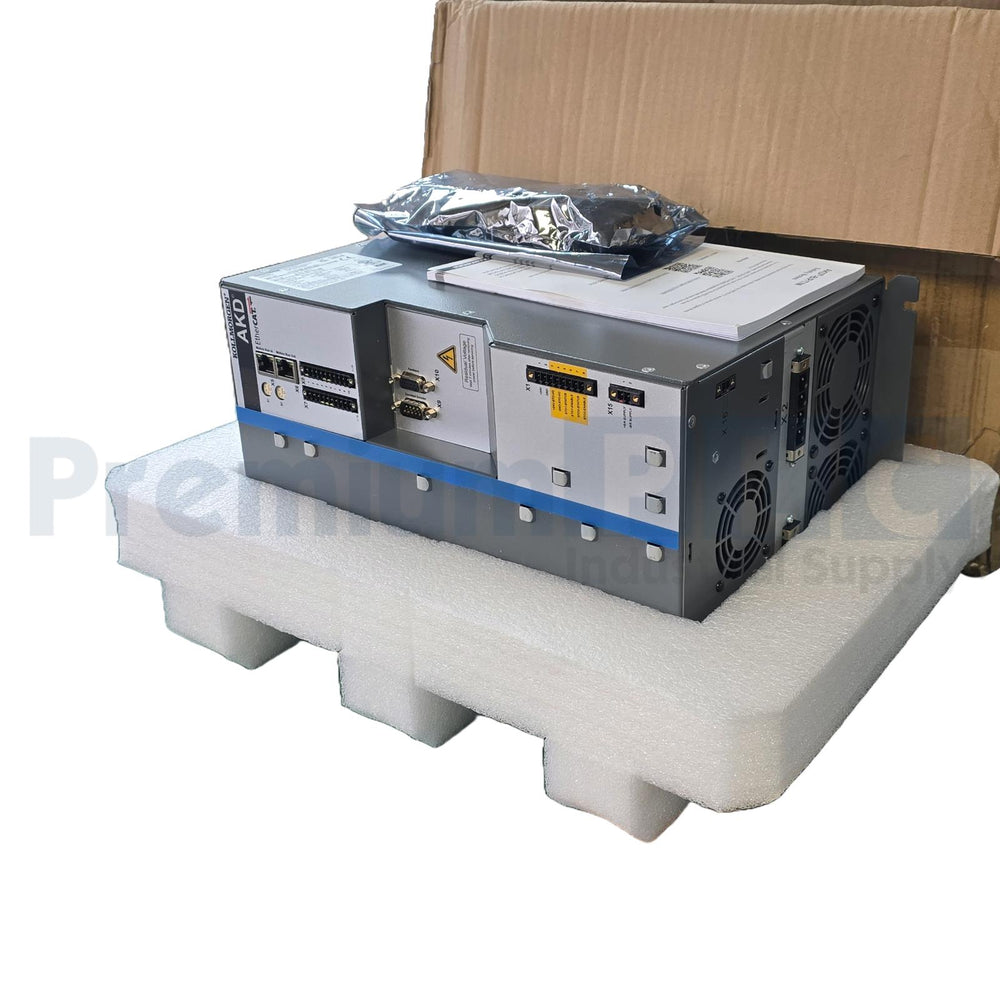

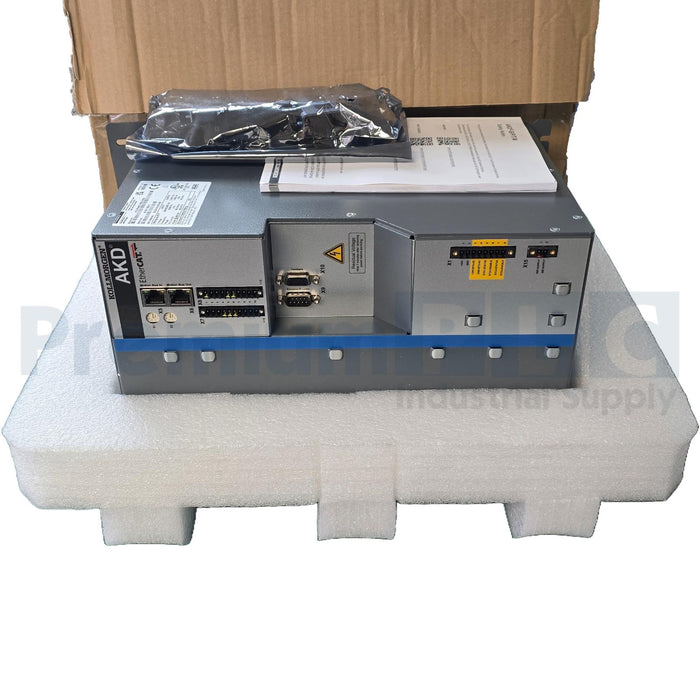

KOLLMORGEN AKD-P04807-NBEC-E000 AKD SERIES AC SERVO DRIVE EtherCAT COMM. NSMP
Specifications
Primary brand
Kollmorgen
Main function
AC Servo Drive
Product series / family name
AKD series
Functions
Servo drive
Sine/Cos encod.
Design
position indexer (motion tasking) version

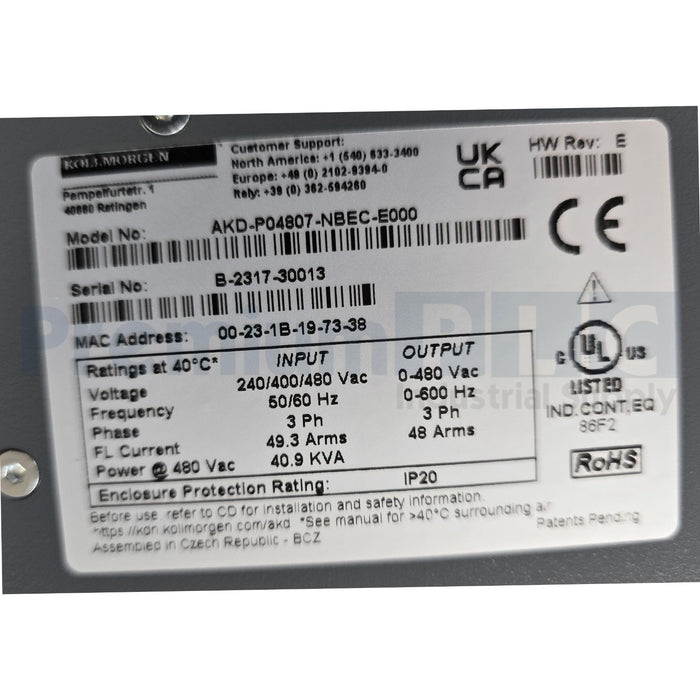

Supply voltage (AC)
240Vac-480Vac (380Vac / 400Vac / 415Vac / 440Vac)
Type of network
3-phase input (3P)
Rated current
48A
Rated active power (kW)
35kW / 35000W

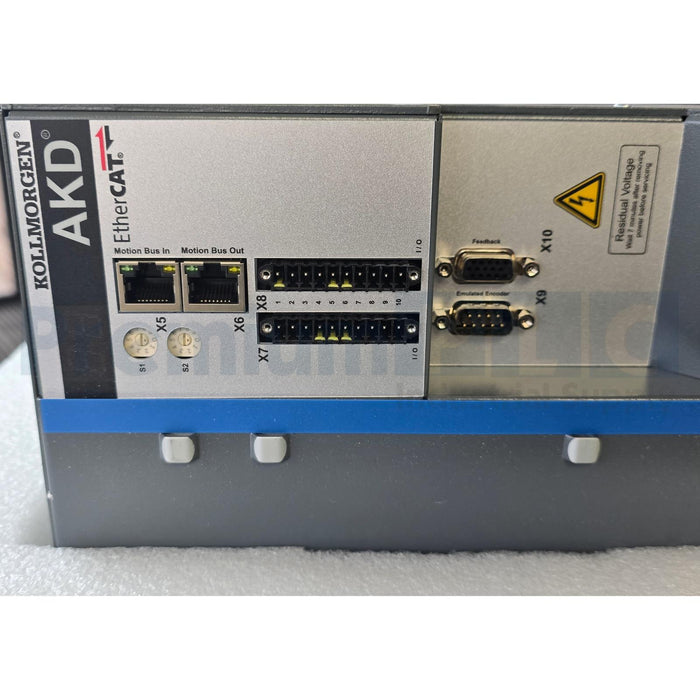

Connection type
Plug-in detachable screw term. (PWR.; BRK.; I.O.)
9-pin D-Sub connector (X9; FEEDBACK)
15-pin D-Sub connector (X10; FEEDBACK)
RJ25 connectors x 2 (CAN IN/OUT)
RJ45 connector (X5 / X6; BUS)
Protection functions
Safe Torque OFF (STO)
Communication protocol
EtherCAT
EnDat
BiSS
HIPERFACE
Digital inputs
8 x digital inputs (24Vdc; Source / Sink) (X7; X8)
Digital outputs
3 x digital outputs (24Vdc; floating) (X7; X8)
Analog inputs
1 x analog input (-10...+10Vdc; 16-bit conversion) (X8; speed setpoint)
Analog outputs
1 x analog output (-10...+10Vdc; 16-bit) (X8; tachometer output)
Degree of protection
IP20
Ambient air temperature for operation
0...+40 °C
Manufacturer product status
Commercialized
Equivalent to
AKDP04807NBECE000
Compliant with standard(s)
UL
CE marking
cUL Listed
RoHS
Benefits
AKD ensures plug-and-play commissioning for instant; seamless access to everything in your machine.
And; no matter what your application demands; AKD offers industry-leading servo performance; communication options; and power levels; all in a smaller footprint
