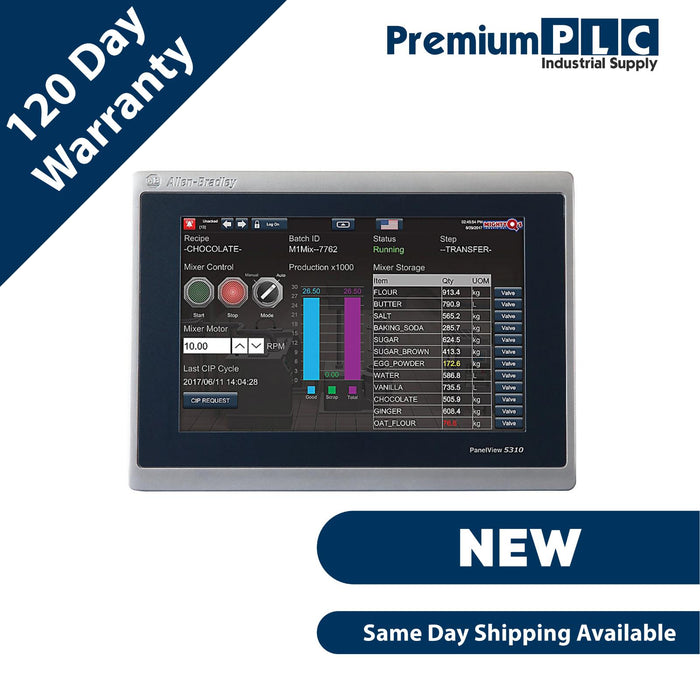

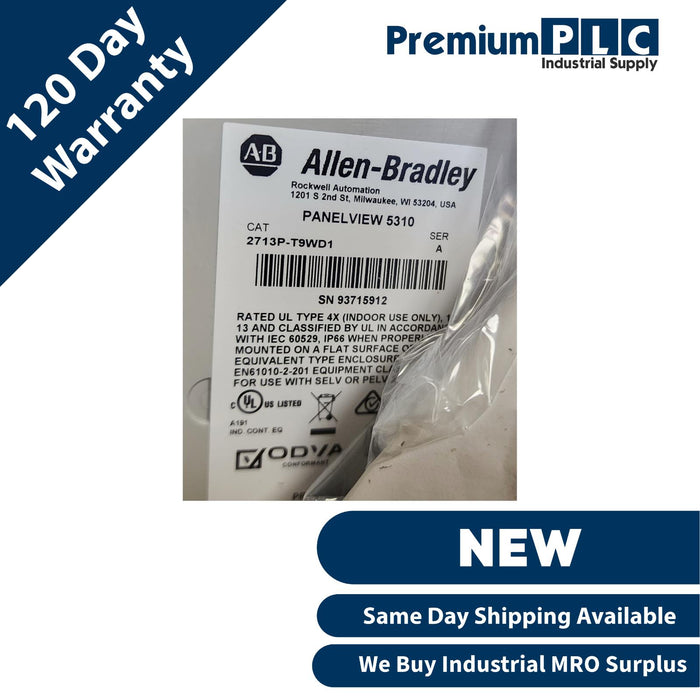

NEW ALLEN BRADLEY 2713P-T9WD1 /A PanelView 5310 9" TOUCH SCREEN DISPLAY 24VDC
$2,550.00
NEW ALLEN BRADLEY 2713P-T9WD1 /A PanelView 5310 9" TOUCH SCREEN DISPLAY 24VDC

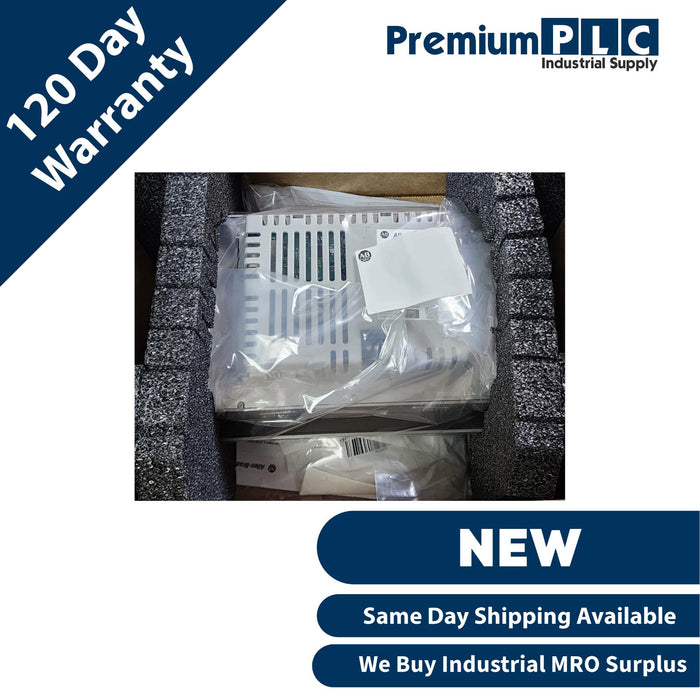

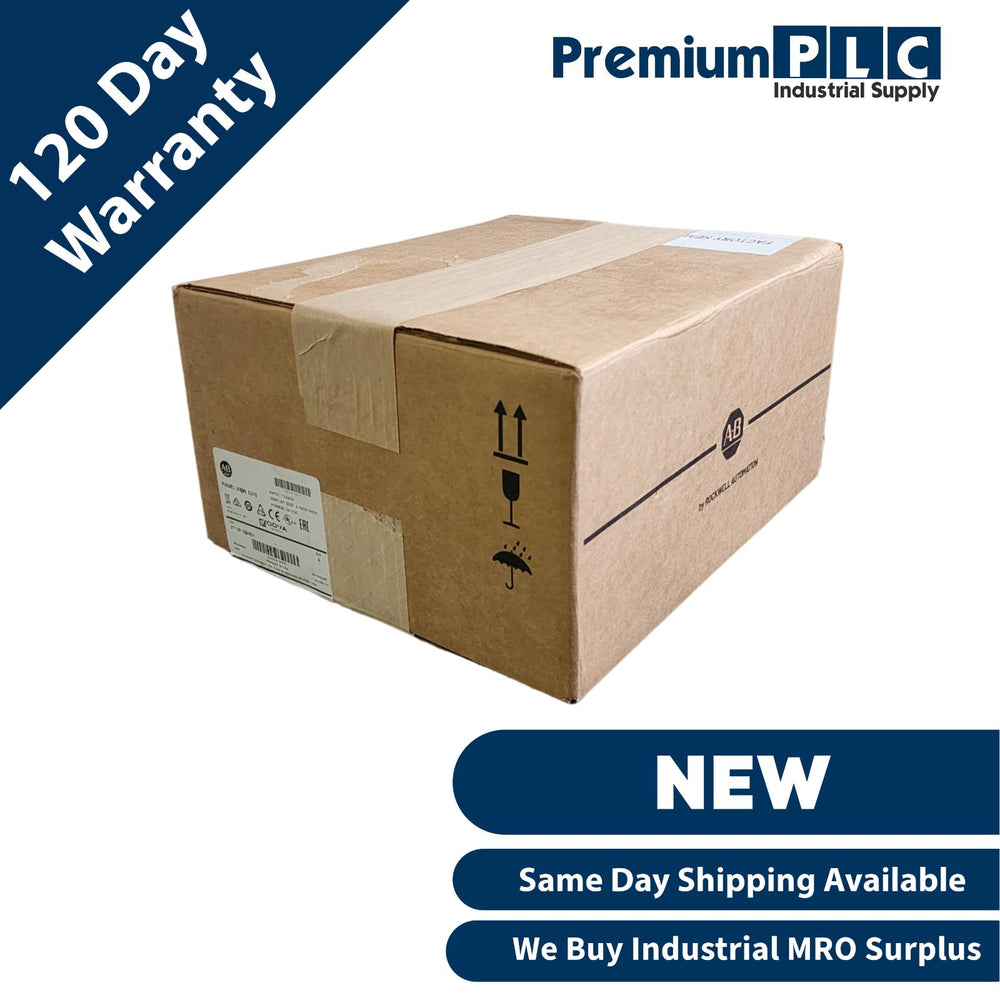

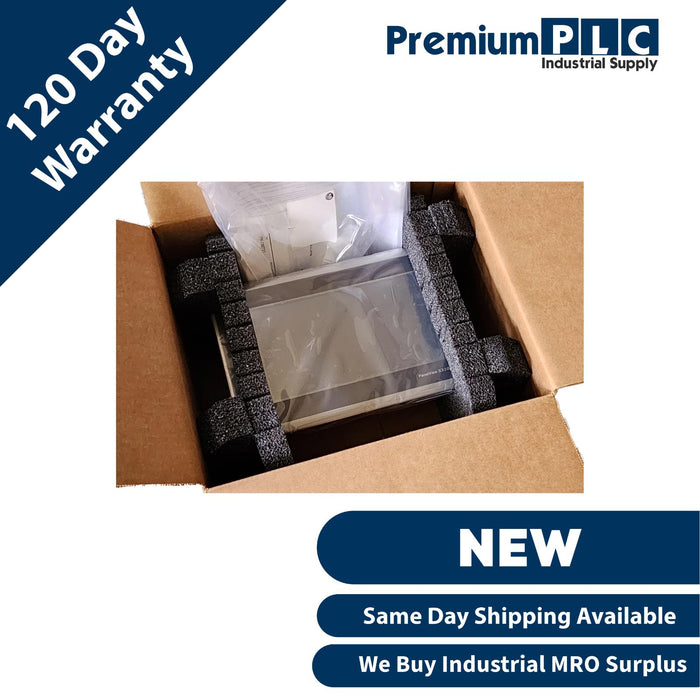

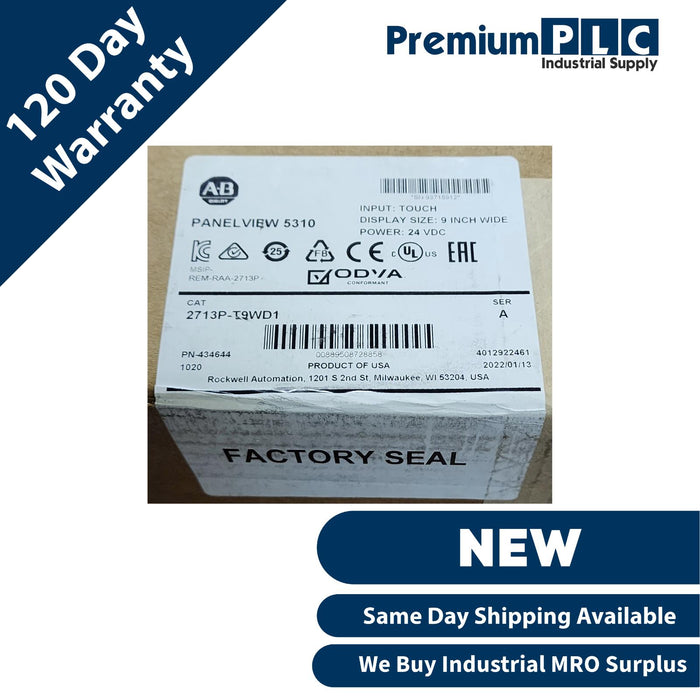

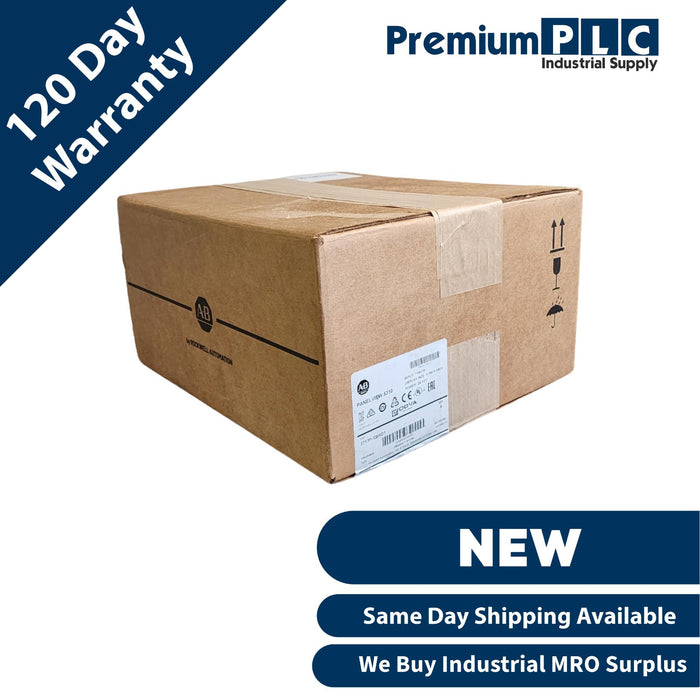

CONDITION: NEW OPEN FACTORY BOX. MFG. DATE 2022/01/13
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
Technical Specifications
Electrical
| Number of HW-interfaces industrial Ethernet | 1 |
|---|---|
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Number of system buttons | 0 |
| Voltage type of supply voltage | DC |
| Number of function buttons, programmable | 0 |
| Suitable for safety functions | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| With colour display | Yes |
| With numeric keyboard | No |
| With alpha numeric keyboard | No |
| With message indication | Yes |
| With message system (incl. buffer and confirmation) | No |
| Process value representation (output) possible | Yes |
| Process default value (input) possible | No |
| With recipes | No |
| With printer output | No |
| Additional software components, loadable | No |
| Supporting protocol for EtherNet/IP | Yes |
| Screen diagonal | 9 inch |
| Supply voltage DC | 18 V |
| Touch technology | Resistive touch |
| Power consumption, max | 14 W |
| Power consumption, typical | 11 W |
| Backlight power consumption | 3.5 W |
| With Allen‑Bradley brand marking | Yes |
| Aspect ratio | 5:3 |
| Display resolution | 800 x 480 WVGA |
| USB host port | 0.5 A @ 5V DC |
| Status indicator | STS (status, green), ERR (error, red) |
| Operator input | Touch |
| Input voltage, nom | 24V DC (18...30V DC), nonisolated DC power supply |
| Memory | RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects |
| Power supply | Supports safety extra low voltage and protected extra low voltage 24V DC supplies |
| Touch screen | Analog resistive, Actuation rating: 1 million presses, Operating force: <100 grams |
| Backlight | Type: Light-emitting diode, non-replaceable, Life: 50,000 h minimum at 40 °C (104 °F) to half-brightness |
| Ethernet ports | One 10/100Base-T, Auto MDI/MDI-X Ethernet port for controller communication |
| Software | Studio 5000 environment provides single portal to View Designer and Logix Designer applications |
| Secure Digital (SD) card slot | One SD card slot for storing application files, Replacement: Allen‑Bradley part number 1784-SD1 (1 GB), 1784-SD2 (2 GB), 1784-SDHC8 (8 GB), and 1784-SDHC32 (32 GB) |
| USB ports | Host: one USB high-speed 2.0 host port (type A) supports removable drives for external storage Device: one high-speed 2.0 device port (type B) supports connection to host computer (available in a future release) |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Number of buttons with LED | 0 |
| Supporting protocol for LON | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| With SW interfaces | Yes |
| Type of display | TFT |
| Inrush current, max | 15 A |
| Brightness, typical | 300 cd/m² |
| Color depth | 24-bit color graphics (16.7 million colors) |
| Battery (real-time clock backup) | Accuracy: ±2 minutes per month, Battery life: 4 years minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen‑Bradley part number 2711P-RY2032) |
Environmental
| Degree of protection (NEMA), front side | 13 |
|---|---|
| Degree of protection (IP), front side | IP66 |
| Operating temperature | 0 °C |
| Conformal coated | No |
| Power dissipation | 38 BTU/hr |
| List of degrees of protection (NEMA) | 4X, 12, 13 |
| Shock | Operating: 15 g @ 11 ms, Nonoperating: 30 g @ 11 ms |
| Vibration | 0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz |
| Relative humidity | 5...95% noncondensing |
| Altitude, operating | 2000 m |
| Nonoperating temperature | -25 °C |
Mechanical
| Width of the front | 280 mm |
|---|---|
| Height of the front | 190 mm |
| Wall mounting/direct mounting | Yes |
| Mounted depth | 64 mm |
| Cutout dimensions, approx | Height: 162 mm (6.38 inch), Width: 252 mm (9.92 inch) |
| Rail mounting possible | No |
| Overall depth | 69.5 mm |
Construction
| Weight, approx | 2.41 g |
|---|---|
| View area | Width: 196 mm (7.7 inch), Height: 118 mm (4.6 inch) |
