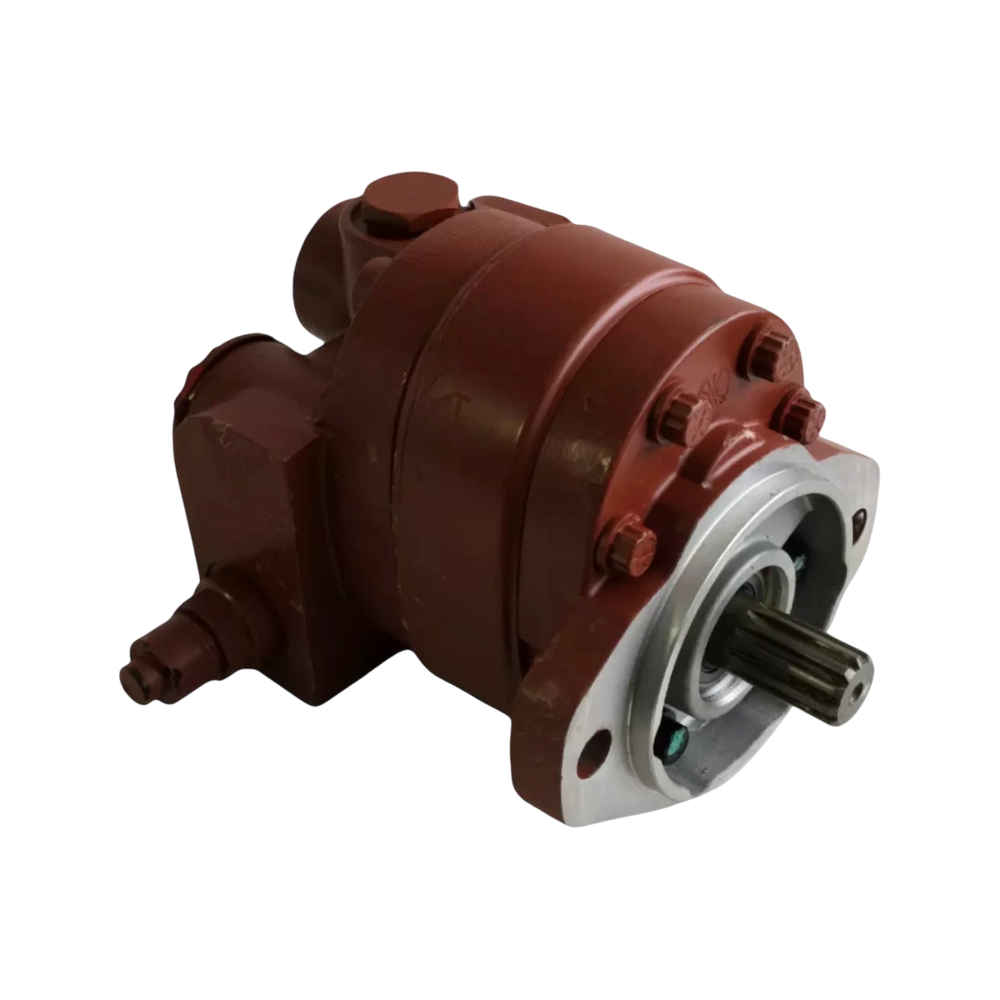

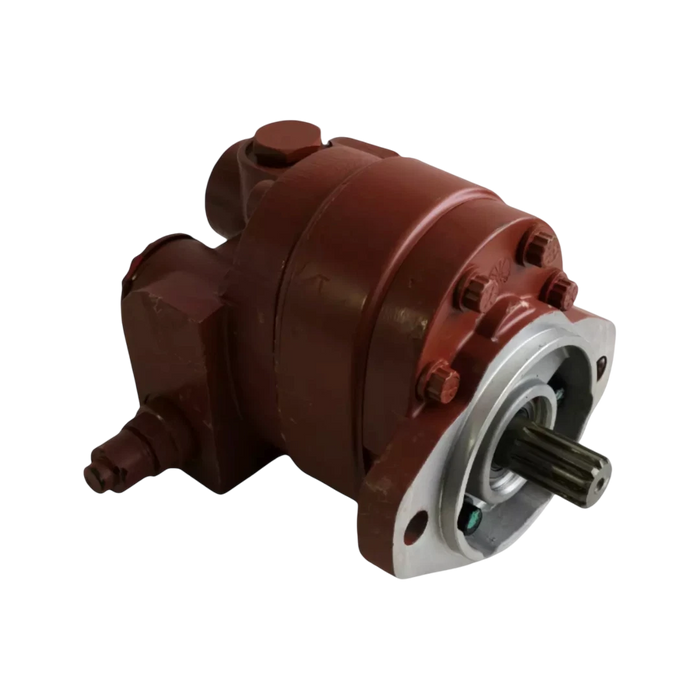

EATON DANFOSS 26211-LAD HYDRAULIC GEAR PUMP ASSY S26 - SINGLE UNIT 3831314 NEW
Auxiliary mounting features rear: None
Configuration: Single
Continuous pressure max: 3000 psi
Continuous working temperature max: 220 degree
Fahrenheit
Design code11: A
Displacement: 27.7 cubic centimetre per revolution
Eccn: EAR99
Housing material: Aluminum
Icc2: Hyd Fixed Dis External Gear Pump
Identification: Standard
Input shaft: 11 TOOTH 16/32 SPLINE, MIN FULL SPLINE
22.4 [.88], SHAFT EXT 31.8 [1.25]
Intermittent pressure max: 3500 psi
Minimum continuous oil viscosity: 45 Saybold universal
second
Model Code: ACNBL11ABA021BDALA000A0A
Mounting features front: 2 Bolt A SAE Flange series
82-2
Paint: Primer Per Spec 209-13A
Ports sizes locations backplate single unit: Flow
Divider, Suction Port 1.3125-12 UN-2B SAE O-Ring Port; Priority Pressure Port
.750-16 UNF-2B SAE O-Ring Port; Secondary Pressure Port .875-14 UNF-2B SAE
O-Ring Port - Rear Ports
Priority flow divider setting: 32.2 LPM
Product height: 5.16
Product height uom: inch
Product length: 5.87
Product length uom: inch
Product trade name: Series 26
Product weight: 10.00
Product weight uom: pound
Product width: 5.12
Product width uom: inch
Relief valve setting: 2000 psi
Shaft rotation: Left
Special features17: None
Sub brand: None
Test data: Unit Specific
Unit type21: Flow Divider With Or Without Relief Valve
Working temperature min: -20 degree Fahrenheit
Part Alternates: 26211LAD, 26211-LAD, 3831314 , 4320-01-576-4570, 01-576-4570, 4320015764570, 015764570
