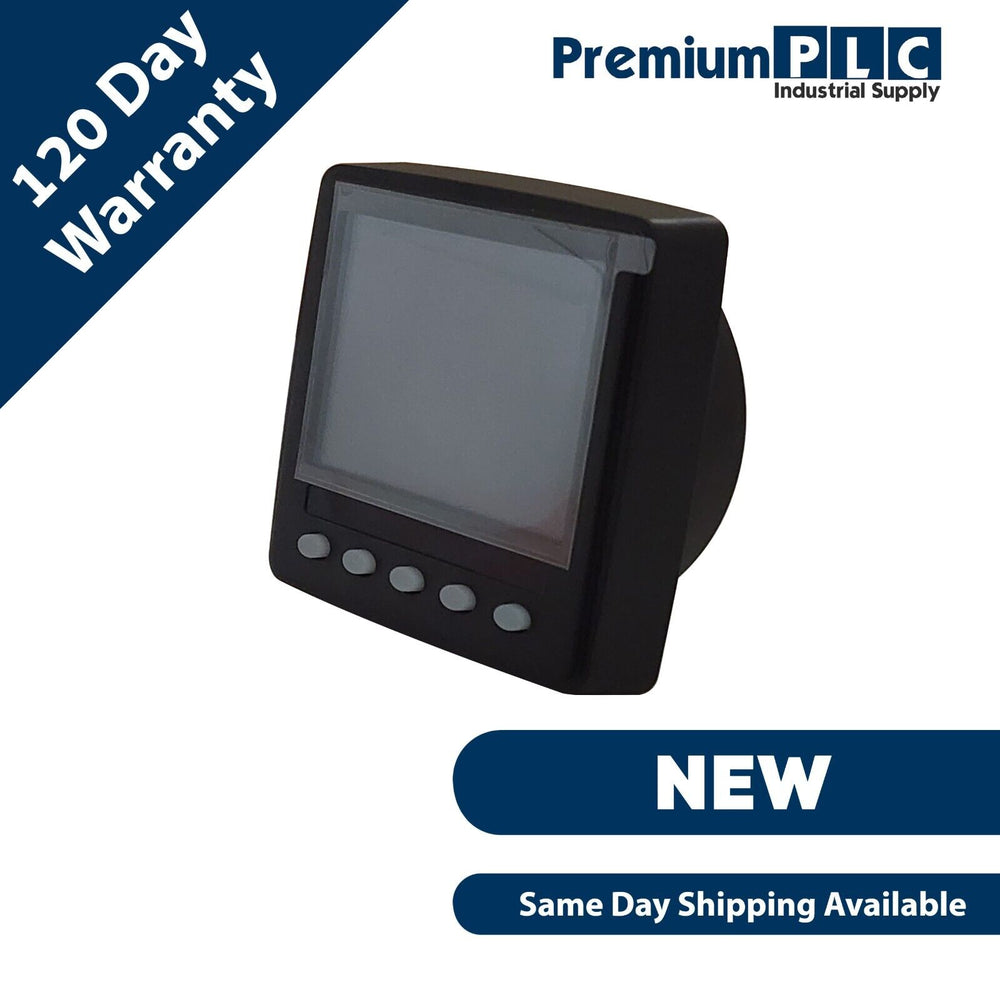

The C3, formerly the CANvu 355/Veecan 320, is a second generation compact color display from Veethree. It is designed as an OEM (Original Equipment Manufacturer) product, and is not available direct to end users.
The C3 has a 3.5inch color display with fully integrated input and output features and is part of the new generation of compact, flexible, and rugged CAN bus monitors.
With 7 analog inputs, 4 relay outputs combined with 2 digital inputs, 2 CAN input connections, plus a USB port the C3 allows maximum functionality.
The QVGA color display can be viewed in full sunlight, and the unit is totally sealed and electronically extremely durable. The C3 monitor is equipped to meet the challenge of providing tough, flexible, maintenance free instrumentation in even the very harshest of environments.
Using a Freescale iMX 286 processor, programmers can quickly assemble a project using the proven Veethree software developers kit (SDK) which includes access to the Veethree component based software library. The fully developed software is then able to be rapidly validated on a PC using the built in simulator.
Key Features
- QVGA Graphical high resolution 320 x 240 color TFT LCD.
- Enhanced LED variable backlight. Max brightness of 750 NIT (cd/m2).
- Fully sealed to IP67.
- 2 moulded in 12 way Deutsch connectors.
- 2 CAN bus input connections.
- USB port.
- 7 Analog Inputs, 4 Relay Outputs, 3 Digital Inputs.
- Engine monitoring versions pre-programmed to display core engine functions.
- Modern contemporary design easily branded for individual customers.
- Internal sounder/buzzer.
- Multiple accessed screens via user defined tactile soft-keys.
- Front mounting kit supplied as standard.
- Choice of standard, custom harnesses or a Deutsch mating half connector kit.
- Will function as part of a control system.
- J1939 ONLY
Specifications
Hardware |
|
CPU |
Freescale iMX 286 (454 MHz ARM926EJ-S) |
FLASH Memory |
128 MB NAND |
SDRAM |
128 MB |
Electrical |
|
Display |
a-Si TFT LCD 3.5' |
Resolution |
320 (H) x 240 (V) QVGA |
Active Area |
70.08mm (H) x 52.56mm (V) |
Viewing Angle |
130/110 degrees from 6 O'clock |
Number Of Colours |
64K |
Contrast Ratio |
300:1 |
Brightness |
750 NIT (cd/m2) |
Power Requirements |
10V to 32V DC |
Sounder |
Internal Buzzer |
Connection |
(1) 12 Pin Deutsch DT04-12PA Moulded in Receptacle Mates With Primary DT06-12SA (1) 12 Pin Deutsch DT04-12PB Moulded in Receptacle Mates With Secondary DT06-12SB |
Communications |
1 X RS232, 2 X CAN Bus 2.0B (1 isolated), USB2.0 |
Inputs |
7 x Analog, 2 x Digital, 1 tachometer |
Outputs |
4 x Relay |
Environmental |
|
Operating temperature |
-40°C to +70°C |
Storage Temperature |
-40°C to +80°C |
Degree of Protection |
IP67 Rear, IP66 Front |
Mechanical |
|
Case material |
ABS |
Case colour |
Black |
Dimensions |
95mm (W) x 95mm (H) x 23mm forward and 23mm rear (D) |
|
