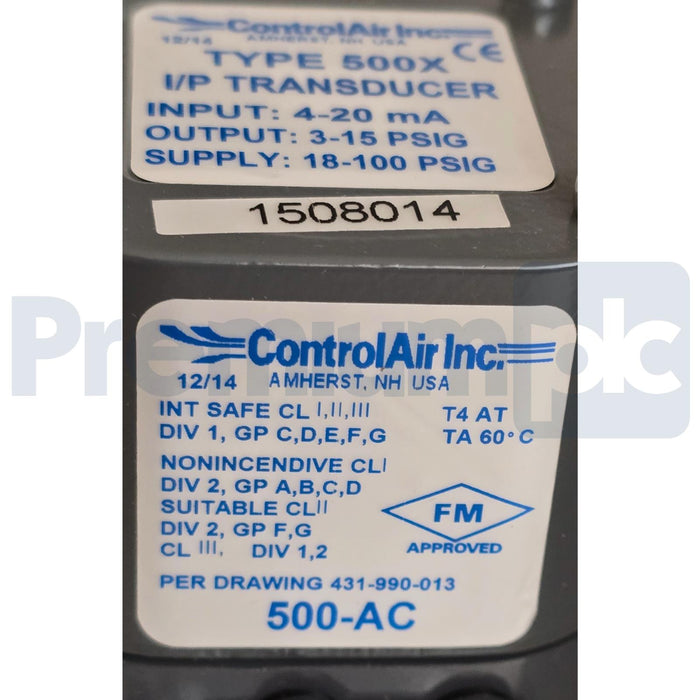

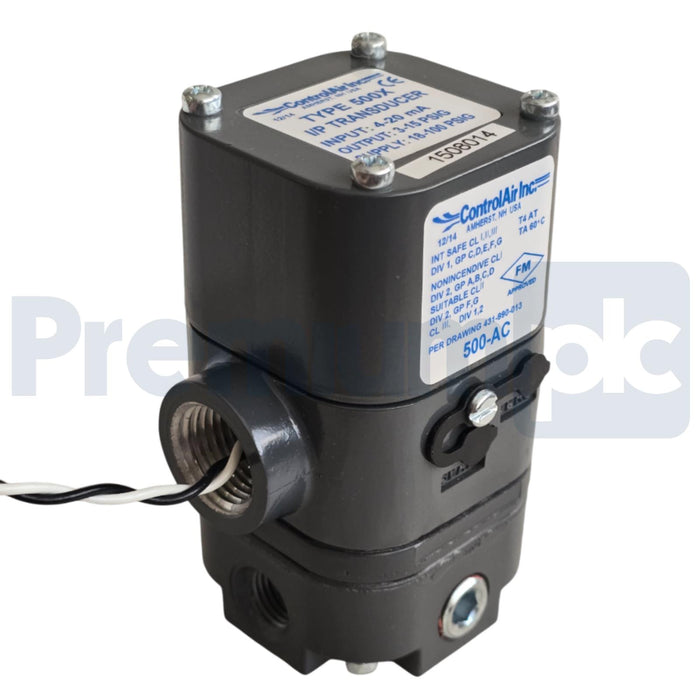

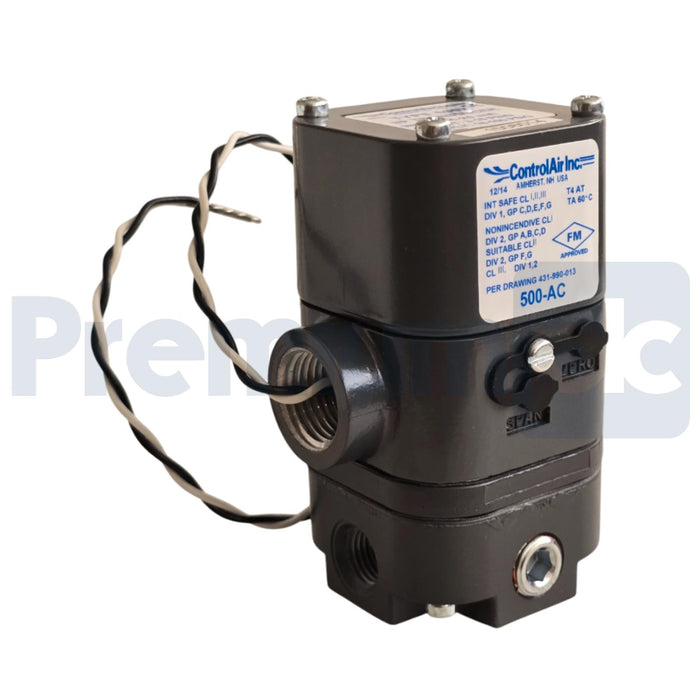

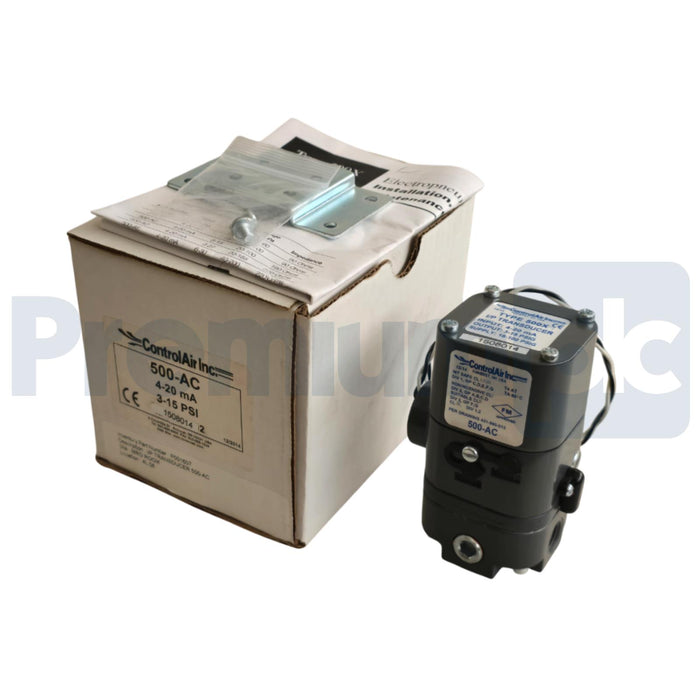

ControlAir 500-AC TYPE 500X I/P TRANSDUCER 4-20mA 3-15PSIG OUT/IN 18-100PSIG NEW
$550.00
ControlAir 500-AC TYPE 500X I/P TRANSDUCER 4-20mA 3-15PSIG OUT/IN 18-100PSIG NSMP
Additional information
| Input | 0-10 Vdc, 0-5 Vdc, 1-9 Vdc, 4-20 mA |
|---|---|
| Output Range | 1-17 psig (0.07-1.2 bar), 2-60 psig (0.14-4 bar), 3-120 psig (0.2-8 bar), 3-15 psig (0.20-1 bar), 3-27 psig (0.2-1.8 bar), 3-9 psig (0.2-0.6 bar), 6-30 psig (0.40-2.0 bar), 9-15 psig (0.6-1 bar) |
| Max. Supply Pressure | 150 psig (10 bar) |
| Supply Pressure Sensitivity - Low Output Range | <+ 0.1% of span per psig (<+ 0.15% of span per 0.1 bar) |
| Supply Pressure Sensitivity - High Output Range | <+ 0.04% of span per 1.0 psig (0.07 bar) |
| Flow Rate | 20 scfm (566 Nl/min) |
| Maximum Air Consumption | 0.07 scfm (1.98 Nl/min) |
| Repeatability | < 0.5% of span < 0.5% of span |
| Hysteresis | < 1.0% of span < 0.5% of span |
| Response Time | Dependent on pressure range – typically less than 0.25 sec. for 3-15 psig units |
| Media | Oil free, clean dry air filtered to 40 micron |
| Electrical Connection | Conduit 1/2" NPT, DIN 43650 |
| Enclosure | Nema 1, Nema 4X (IP65) |
| Ambient Temperature Limits | -20° to +140°F ('-30° to 60°C) |
| Port Sizes | 1/4 NPT (Pneumatic), 1/2 NPT (Electric) |
| Weight | 2.1 lbs (0.94 kg.) |

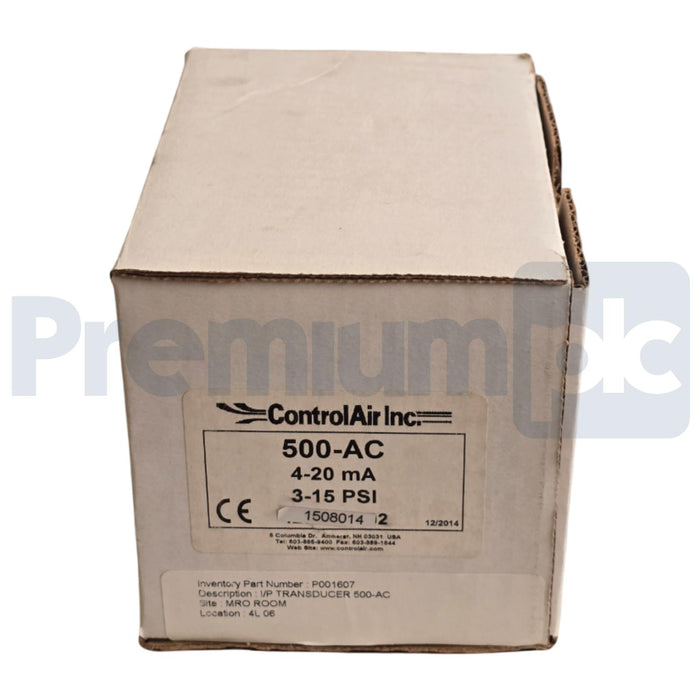

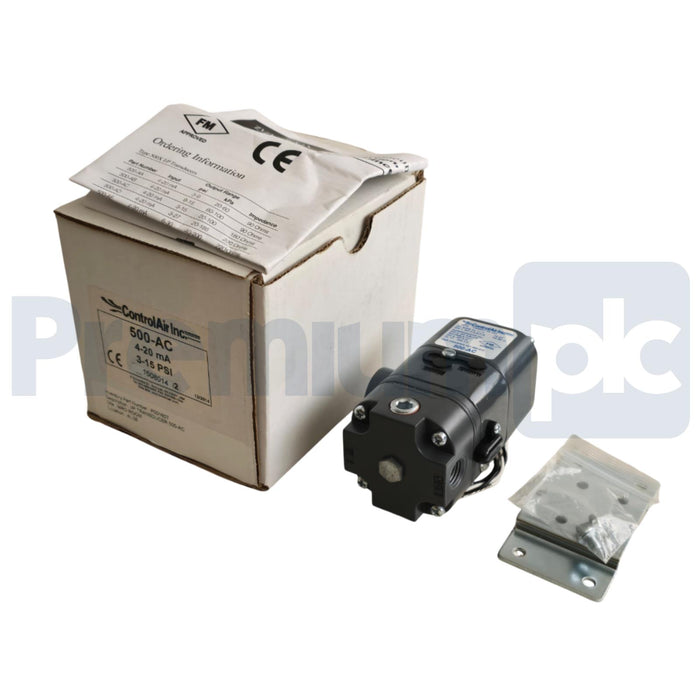

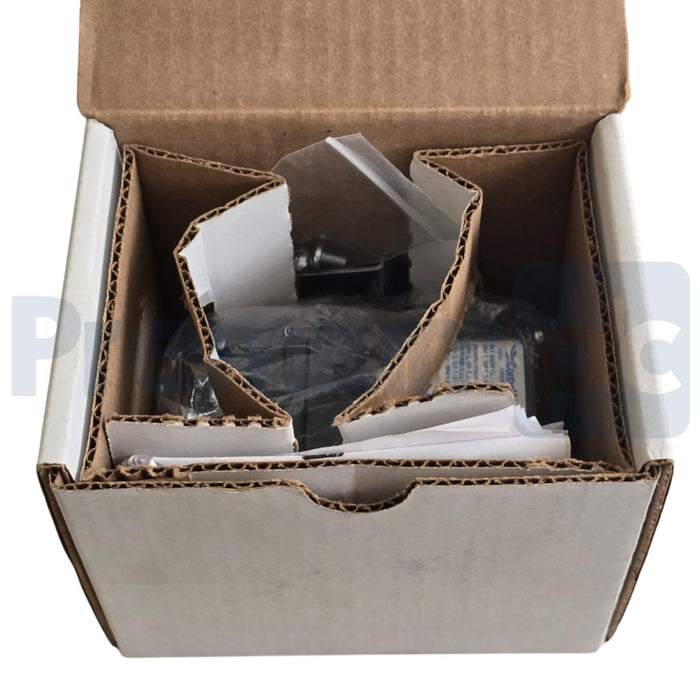

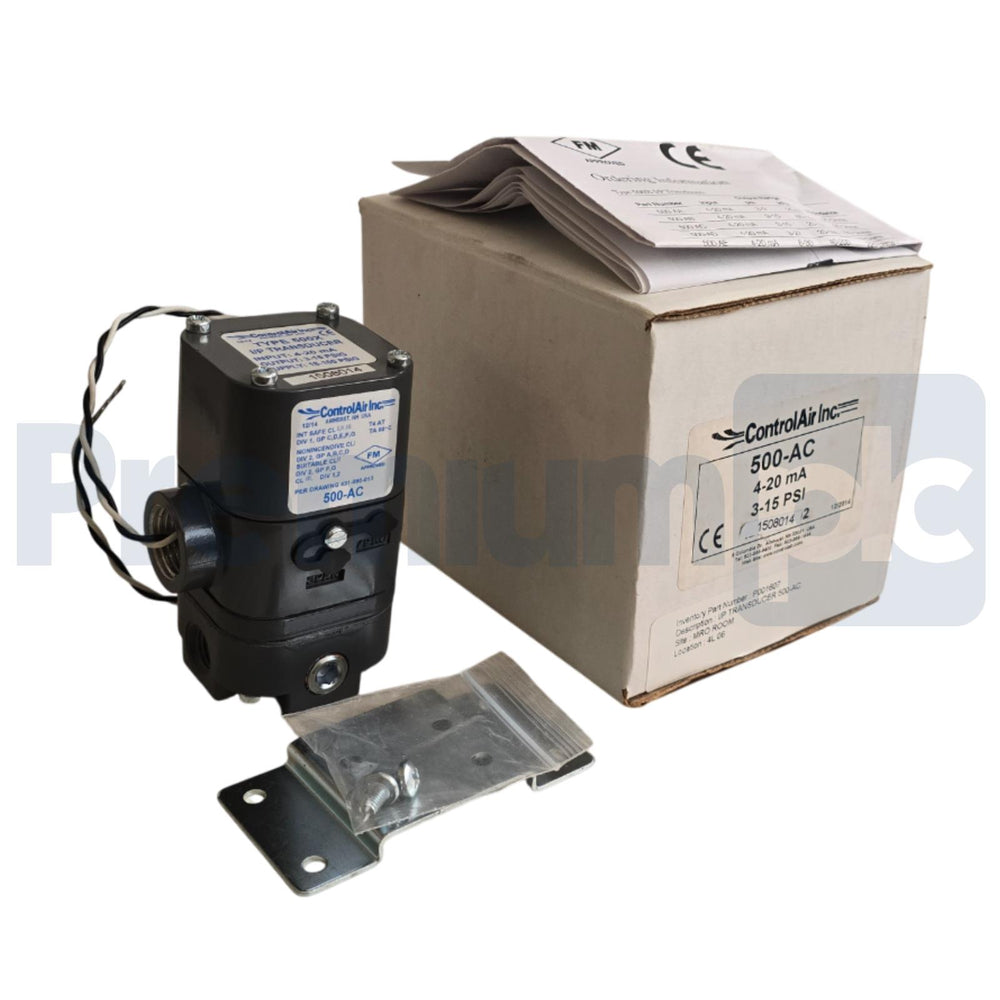

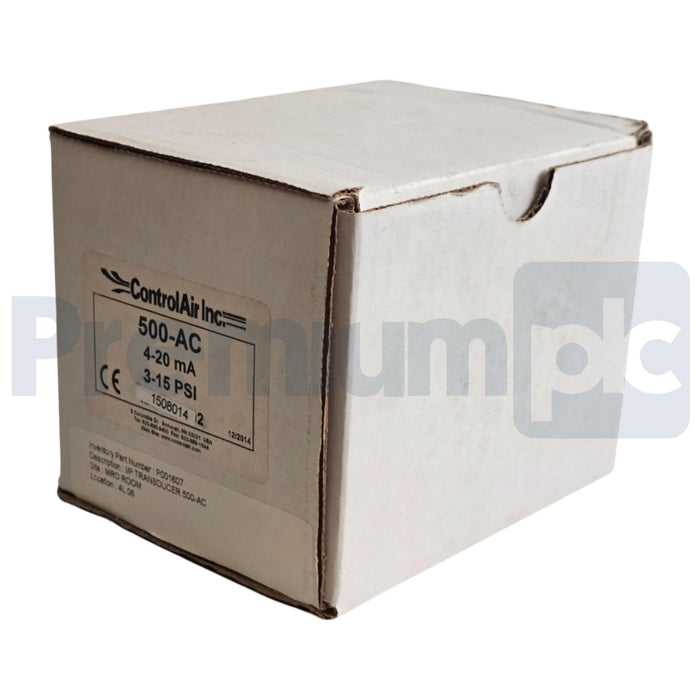

CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
