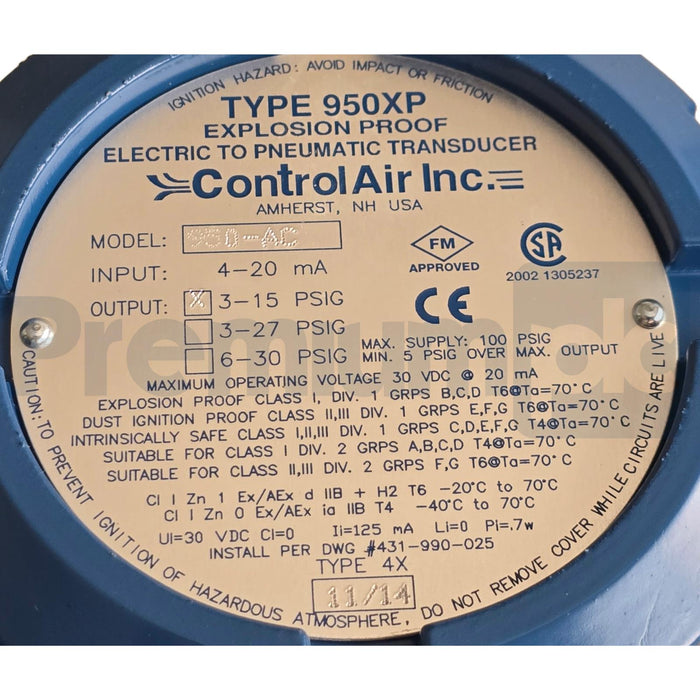

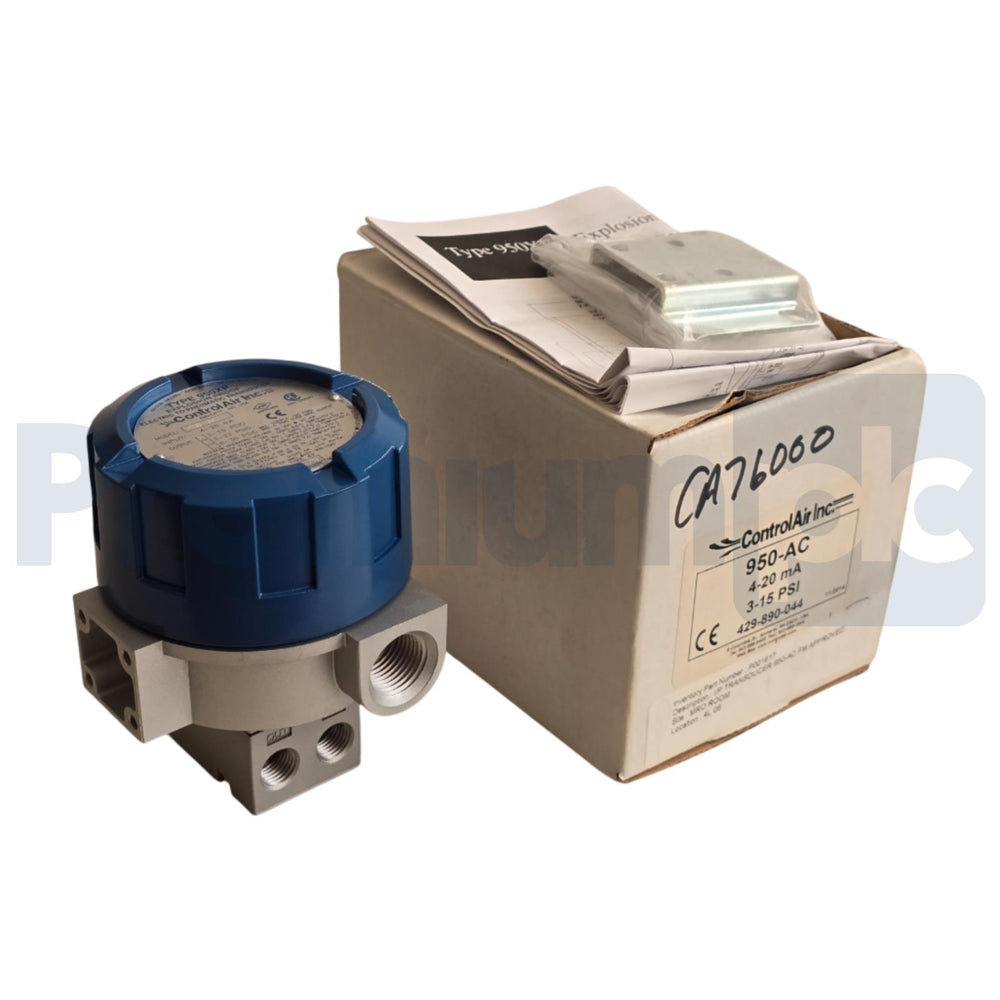

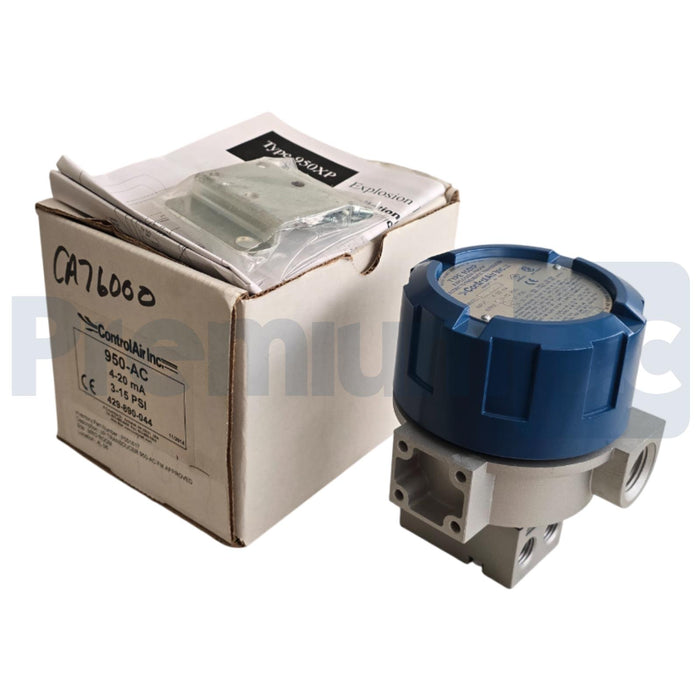

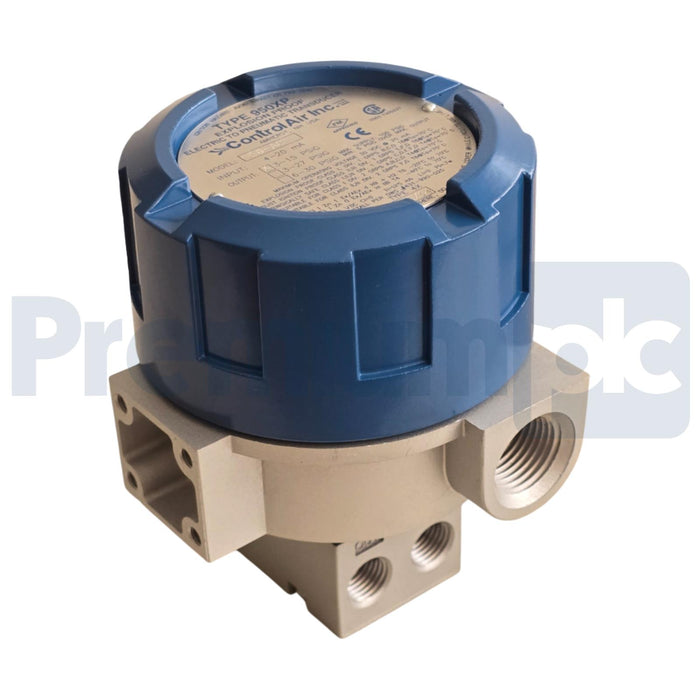

ControlAir 950-AC TYPE 950XP EXPLOSION-PROOF I/P TRANSDUCER 4-20mA 3-15psi NSMP
Additional information
| Input | 4-20 mA |
|---|---|
| Output Range | 0-33 psig (0-2.2 bar), 3-15 psig (0.2-1 bar), 3-27 psig (0.2-1.8 bar), 6-30 psig (0.40-2 bar) |
| Max. Supply Pressure | 100 psig (7 bar) |
| Air Consumption | 3.0 scfh (1.5 Nl/min) |
| Maximum Flow Capacity | 12 scfm (340 Nl/min) |
| Ambient Temperature Limits | -40° to +158°F (-40° to +70°C) |
| Temperature Range (Storage) | -40° to +200°F (-40° to +93°C) |
| Accuracy, Hysteresis, and Repeatability | ±0.10% of span (±0.25 with field-selectable option) |
| Deadband | 0.02% of span |
| Position Effect | No measurable effect |
| Vibration Effect | Less than ±1.0% of span under the following conditions: 5-15Hz @ 0.8 inches constant displacement; 15-500Hz @ 10g’s |
| Temperature Effect | ±0.045%/°F (±0.07%/°C) of span |
| Reverse Polarity Effect | No damage from reversal of normal supply current (4-20 mA) or from misapplication of up to 60 mA |
| RFI/EMI Effect | Less than .5% of span change in output pressure per En 61000-4-3:1998, Amendment 1, Performance Criterion A |

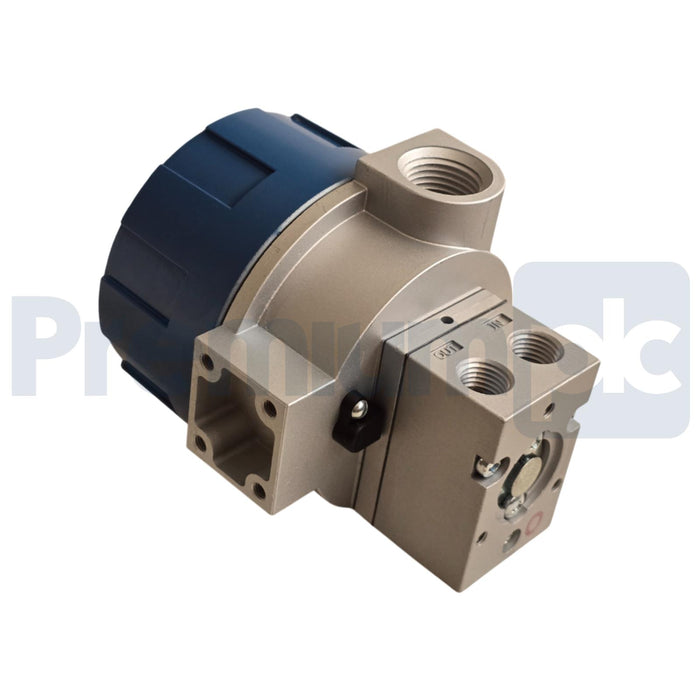

| Port Size | 1/4" NPT |
| Port Size (Electric) | 1/2" NPT, M20 x 1.5 (ATEX) |
| Media | Clean, dry, oil-free, air-filtered to 40 micron Sweet natural gas or methane when purchased with the (E) option. |
| Mounting | Direct wall, Panel, 2" Pipe (optional) |
| Materials (Body) | Aluminum |
| Materials (Other) | Buna-N, Stainless Steel, Brass, Zinc-plated Steel |
| Weight | 1.8 lbs. (0.82 kg.) |
| Weight with "E" Option | 2.3 lbs. (1.1 kg) |
