Emerson 5HP AC Motor 3515 RPM 230/460V Frame 184T Type TCE TEFC C5P1B 5839

Emerson 5HP AC Motor | 3515 RPM | 230/460V | Frame 184T | Type TCE TEFC

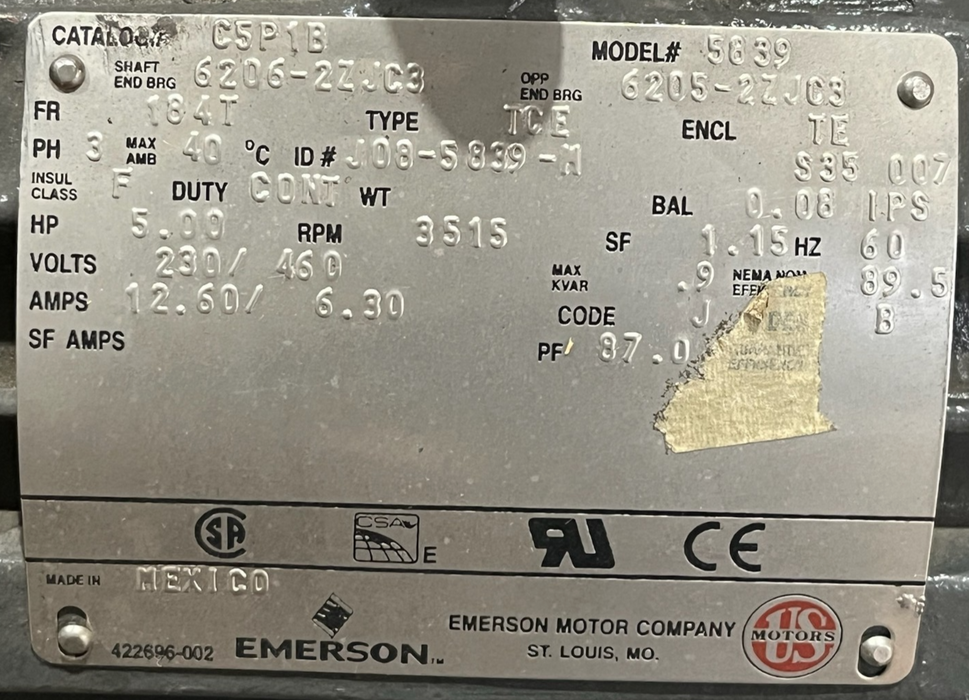

Item Specifics

• Brand: Emerson (Nidec)

• Catalog Number: C5P1B

• Model Number: 5839

• Horsepower: 5 HP

• Speed: 3515 RPM (2-Pole)

• Phase: 3-Phase

• Voltage: 230/460 VAC

• Frame Size: 184T

• Enclosure: TE (Totally Enclosed / TEFC)

• Type: TCE (High Efficiency)

Description

Product Overview This is a heavy-duty Emerson 5 HP AC Industrial Motor, Catalog #C5P1B. Operating at 3515 RPM, this 2-pole motor is designed for high-speed applications such as centrifugal pumps, blowers, and compressors. The Type TCE designation ensures high-efficiency performance within a rugged, totally enclosed frame.

Bearing & Build Quality This unit is built for longevity with high-quality ball bearings:

• Shaft End Bearing: 6206-2ZJC3

• Opposite End Bearing: 6205-2ZJC3

• Frame: Rugged 184T steel or cast iron construction (Standard T-Frame).

• Enclosure: TE (Totally Enclosed), providing excellent protection against dust, moisture, and debris.

Technical Specifications

• Duty: Continuous

• Frequency: 60 Hz

• Service Factor: [Check Nameplate, typically 1.15 for this series]

• Insulation: Class F
