HONEYWELL M7284Q1008 Modutrol IV Motor Proportional Non-Spring Return 120VAC
$350.00
HONEYWELL M7284Q1008 Modutrol IV Motor Proportional Non-Spring Return 120VAC

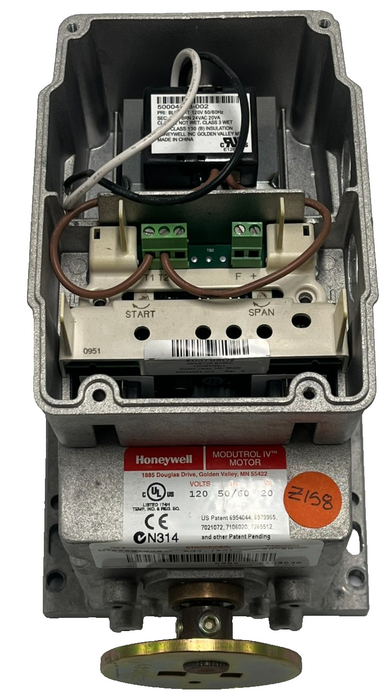

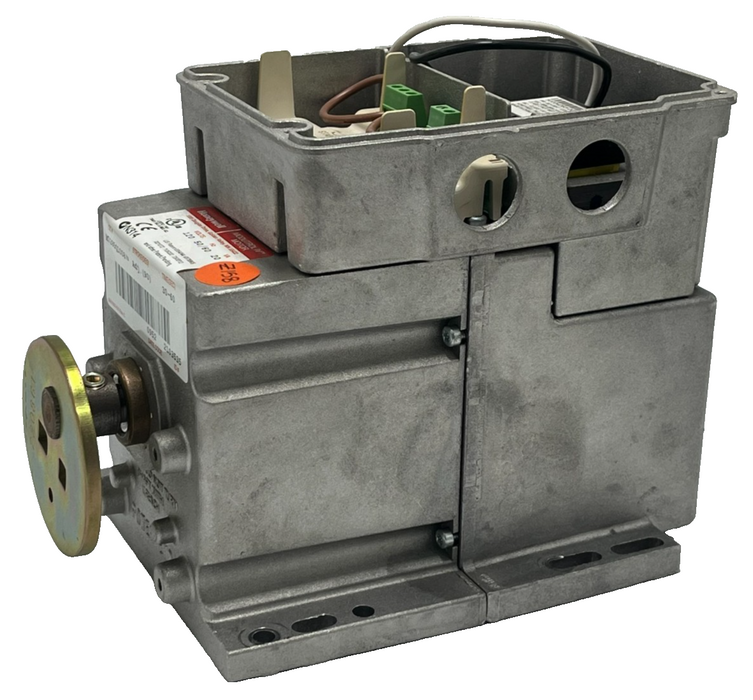

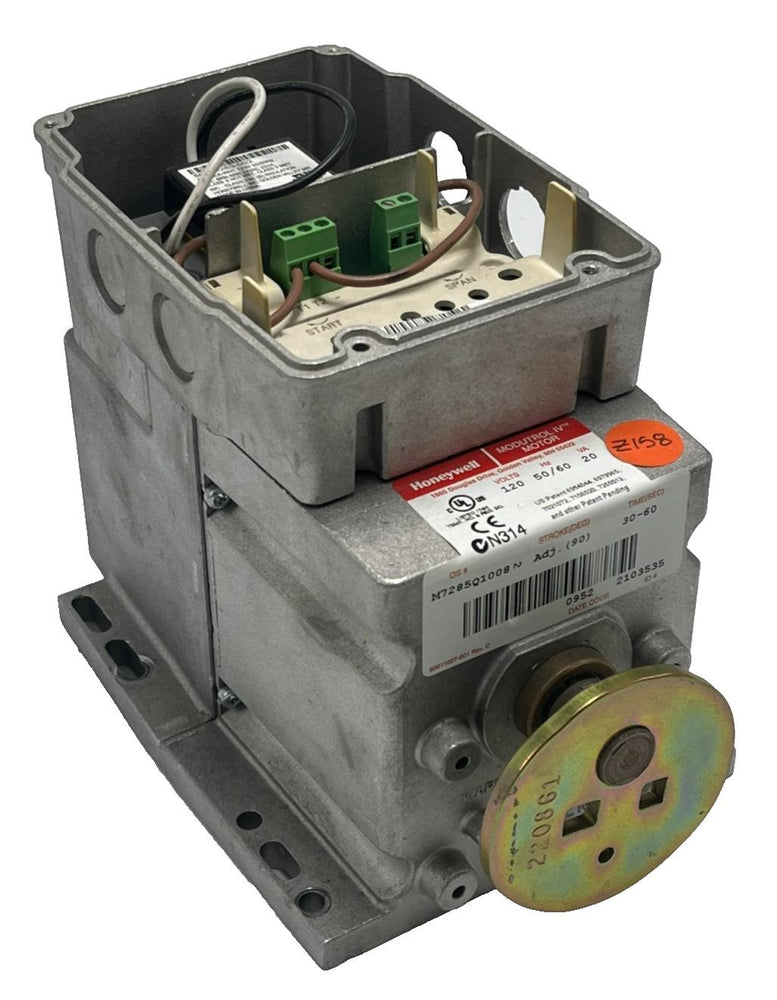

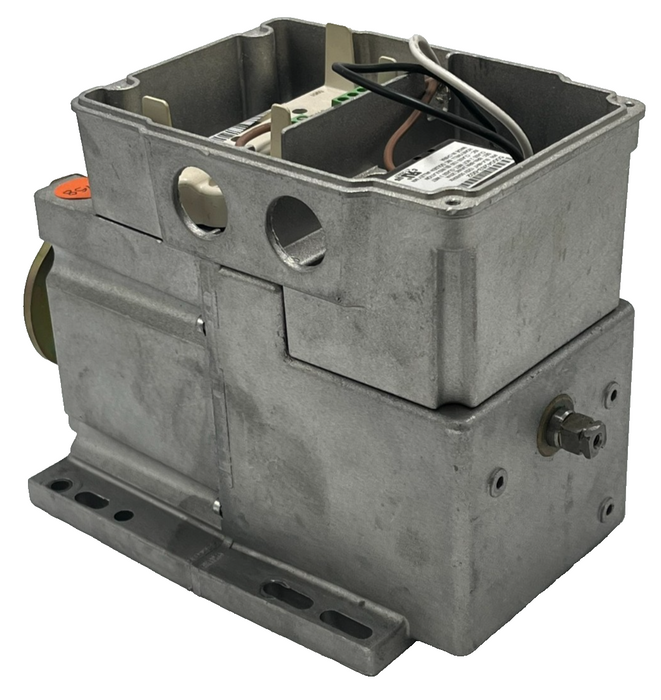

CLEAN LIGHTLY USED MOTOR IN EXCELLENT CONDITION, JUST MISSING THE TOP PLATE ON ELECTRICAL BOX.
- Brand: Honeywell
- MPN: M7284Q1008
- Model: Modutrol IV
- Voltage: 120 VAC
- Torque: 150 lb-in (17 Nm)
- Control Signal: Proportional, typically 4-20 mA or 2-10 VDC (verify label)
- Fail Safe Mode: Non-Spring Return
- Stroke: Adjustable 90° to 160° (factory set at 90°)
- Internal Auxiliary Switch: 2 (Factory-installed)
- NEMA Rating: NEMA 3 (When mounted upright)
- Industry: HVAC / Industrial Automation / Damper/Valve Control
Honeywell M7284Q1008 Modutrol IV Motor
This listing is for a genuine
Honeywell M7284Q1008 Modutrol IV Motor
. This is a heavy-duty, foot-mounted, non-spring return modulating actuator designed for precise control of dampers and valves in commercial and industrial HVAC and combustion control systems.Operating on 120 VAC, this motor accepts a proportional control signal (typically 4-20 mA or 2-10 VDC, please verify your specific unit's label) to position a damper or valve anywhere between fully open and closed.
Condition: [Enter the specific condition of your item here, e.g., "Brand New in original, unopened packaging", "Used, removed from working system, fully tested", or "New Old Stock"].
Key Features:
- Proportional Control: Accepts modulating input signals for precise positioning.
- High Torque: Delivers a consistent 150 lb-in (17 Nm) of torque across its entire voltage range.
- Non-Spring Return (NSR): The motor holds its last commanded position upon power failure.
- Dual Auxiliary Switches: Includes two internal auxiliary switches for added control logic or system feedback.
- Durable Construction: Features a die-cast aluminum housing with NEMA 3 weather protection (when mounted upright).
- Adjustable Stroke: Field-adjustable stroke from 90° to 160° to fit various application needs.
- Dual Shafts: All models have dual shafts (slotted and tapped on both ends) for versatile linkage options.
Specifications:
| Feature | Detail | Source |
|---|---|---|
| Manufacturer | Honeywell | |
| Part Number (MPN) | M7284Q1008 | |
| Supply Voltage | 120 VAC | |
| Torque Rating | 150 lb-in | |
| Control Signal | Modulating (4-20 mA or 2-10 Vdc) | |
| Timing (Nominal) | 30-60 seconds for full stroke | |
| Stroke | Adjustable 90° to 160° | |
| Auxiliary Switches | 2 internal (factory installed) | |
| Mounting | Foot-mounted | |
| Shaft | Dual-ended 3/8 in. square |
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
