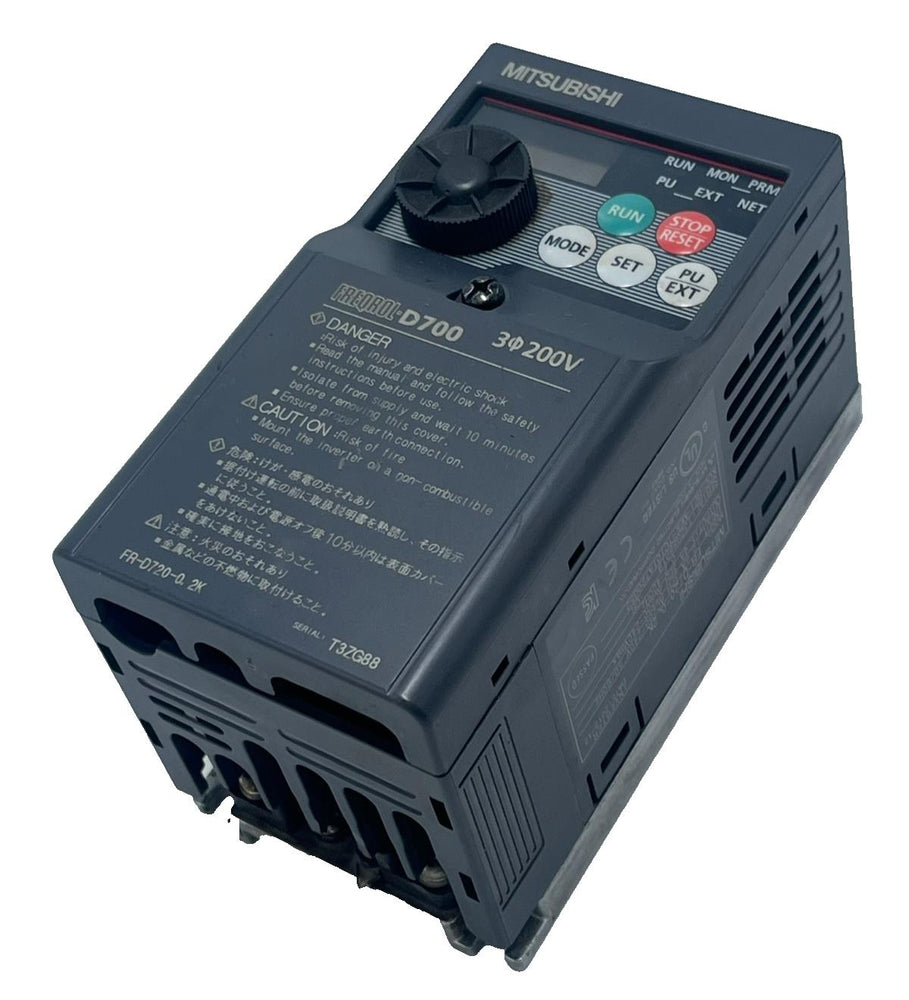

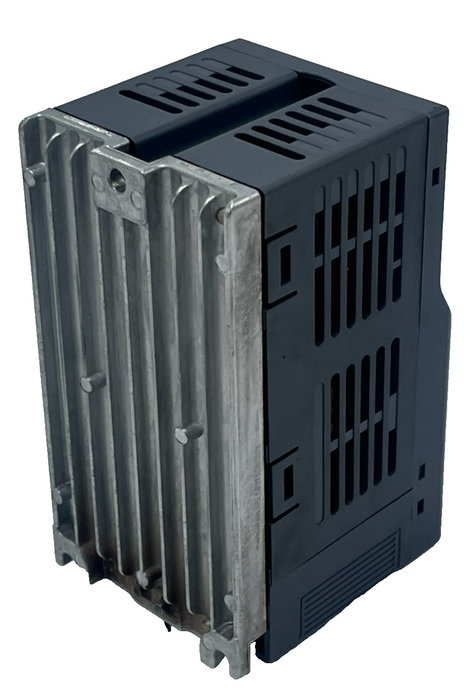

Mitsubishi FR-D720-0.2K Freqrol D700 Inverter 0.2kW 3-Phase 200V VFD
Mitsubishi FR-D720-0.2K Freqrol D700 Inverter 0.2kW 3-Phase 200V VFD
USED SURPLUS ITEM, MAY SHOW SOME COSMETIC SURFACE WEAR , BUT NO MAJOR FLAWS, GOOD CONDITION OVERALL
Technical Specifications
-
Manufacturer: Mitsubishi Electric
Model: FR-D720-0.2K
-
Series: Freqrol D700
Applicable Motor Capacity: 0.2 kW (approx. 1/4 HP)
-
Input Power: 3-Phase 200–240V 50/60Hz
-
Output Power: 3-Phase 200–240V
-
Rated Current: 1.4 A
Overload Capacity: 150% for 60 seconds
-
Control Method: Soft-PWM / High-carrier frequency PWM control
Cooling: Natural cooling (Fanless design for this low-power model)
Key Features
-
Compact Footprint: Ultra-slim design allows for side-by-side mounting to save cabinet space.
Sensorless Vector Control: Provides excellent speed stability and high starting torque (150% at 1Hz).
Safe Stop Function: Includes hardware-based emergency stop functionality for enhanced operator safety.
-
Digital Dial: Features a built-in setting dial for quick and intuitive parameter adjustments and frequency monitoring.
-
Spring Clamp Terminals: Ensures high reliability and easy wiring with vibration-resistant connections.
