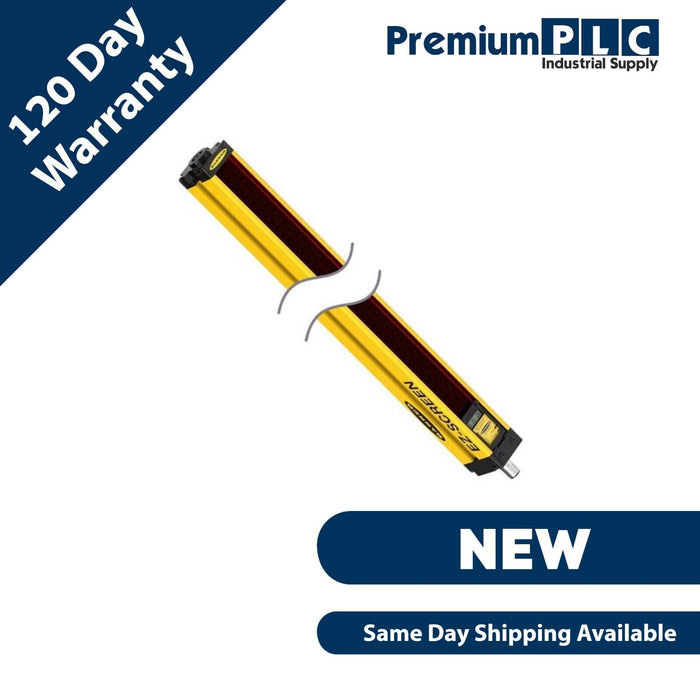

NEW BANNER SLSR14-450Q8 / SLSR14450Q8 EZ-SCREEN LIGHT CURTAIN RECEIVER 111943
NEW BANNER SLSR14-450Q8 / SLSR14450Q8 EZ-SCREEN LIGHT CURTAIN RECEIVER 111943
NEW BANNER SLSR14-450Q8 / SLSR14450Q8 EZ-SCREEN LIGHT CURTAIN RECEIVER 111943
NEW BANNER SLSR14-450Q8 / SLSR14450Q8 EZ-SCREEN LIGHT CURTAIN RECEIVER 111943

NEW BANNER SLSR14-450Q8 / SLSR14450Q8 EZ-SCREEN LIGHT CURTAIN RECEIVER 111943

$1,100.00
NEW BANNER SLSR14-450Q8 / SLSR14450Q8 EZ-SCREEN LIGHT CURTAIN RECEIVER 111943 W/ACCS

Defined Area Height Range (mm)
>350 - <=650
Max Operating Range (m)
>4 - <=8
Low Profile
No
Primary Housing Material
Aluminum
Safety Level
Type 4
Effective Aperture Angle
Type 4 Per IEC 61496-2
Connector Type
M12
Defined Area Height (mm)
450
Dimensions WxD (mm)
36 x 45.2
Overall Length (mm)
522
External Monitoring Device
1 or 2 Channel
Fixed Blanking
Yes
Housing Finish
Yellow Polyester
IP Rating
IP65
Number of Pins (Receiver/Emitter)
8
Operating Distance (m)
0.1 - 6
Operating Voltage
24 V dc +/- 15%
Operating Temperature
0 to +55 deg. C; RH 95%
PL Rating
Ple
Recovery Time
33-220 / 109-800
Resolution (mm)
14
Reduced Resolution
Yes
Response Time
19
SIL Rating
SIL3; CL3
Electrical Safety Class
III
Scan Code
Selectable
Shock
10g at 16ms (6000 cycles)
Short Protection
Yes
System Type
Receiver
Vibration
10-55 Hz at 0.35 mm
Auxiliary Output
Yes
Fault Output
No
Housing Material
Aluminum; Zinc; Acrylic
OSSD Rating
24 V dc at 0.5 A each
Supply Current
275 mA max.
Trip/Latch Output
Selectable
Test Input
No

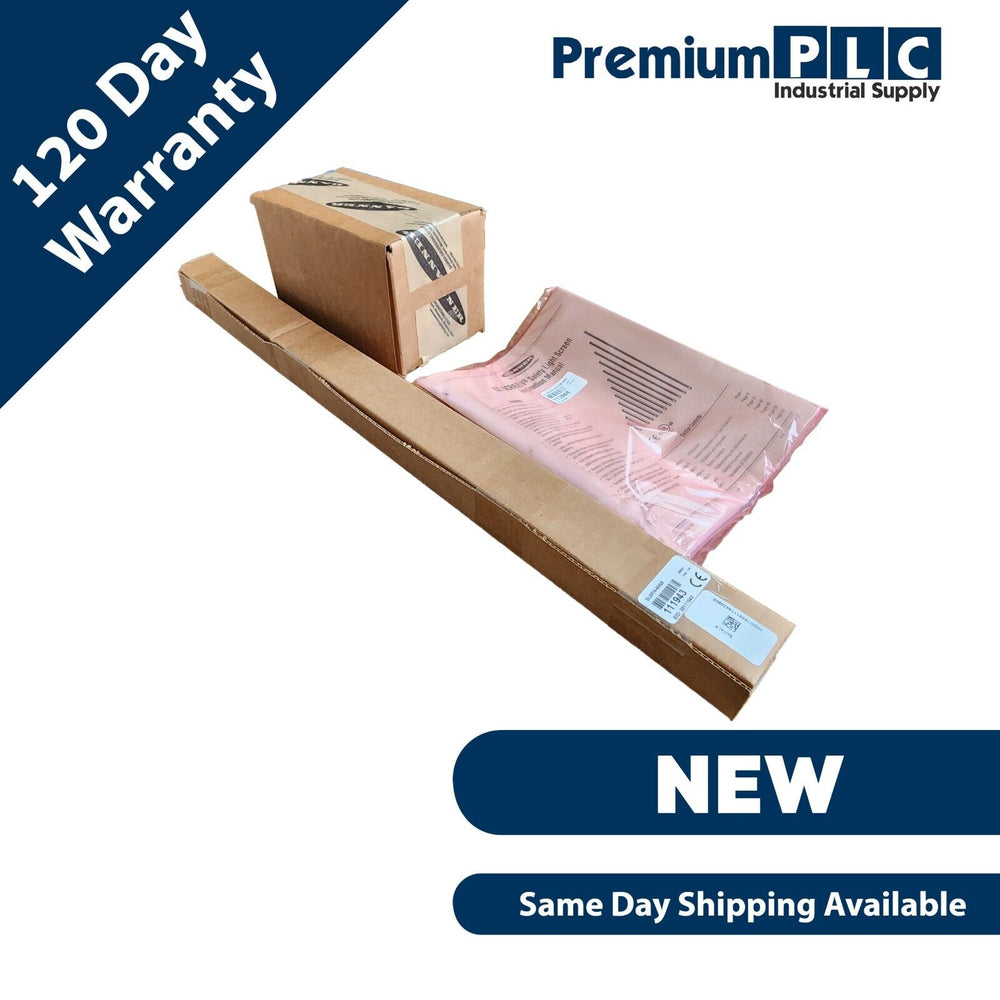

CONDITION: NEW IN BOX
WARRANTY: 120 DAYS

SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
_________________________________________________________________________________
PALLET/20
