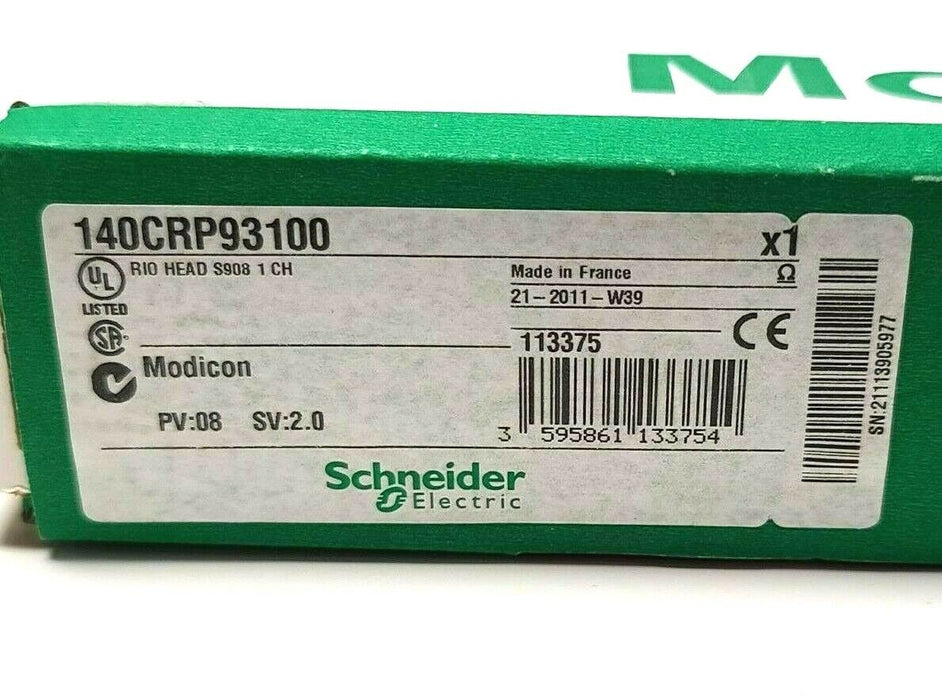

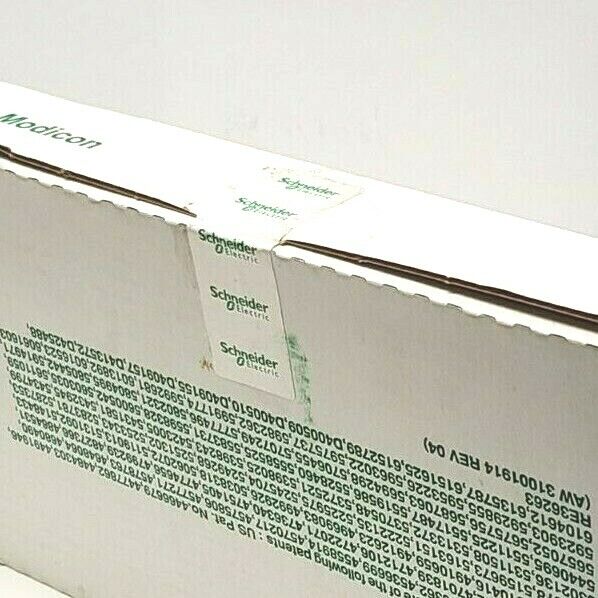

NEW F/S SCHNEIDER 140CRP93100 MODICON RIO HEAD-END ADAPTOR 140-CRP-931-00
$1,150.00
NEW F/S SCHNEIDER 140CRP93100 MODICON RIO HEAD-END ADAPTOR 140-CRP-931-00
PV: 08 SV: 2.0
ITEM IS NEW IN FACTORY SEALED BOX W/ 12 MONTH WARRANTY MAKE OFFER
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (WILL SHIP COLLECT ON UPS OR FEDEX ACCOUNTS)
Specifications
Main
range of product
Modicon Quantum automation platform
product or component type
RIO head-end adaptor module
Complementary
product compatibility
Quantum 200/500/800 series
Symax (any mix)
maximum drops/network
31
I/O words/drop
64 I/64 O
type of cable
75 Ohm coaxial
transmission rate
1544 Mbit/s
dynamic range
35 dB
isolation voltage
500 V DC coaxial center and ground
electrical connection
1 female connector F, elbowed with single cable
diagnostics startup
Power up
Memory check
LAN controller check
power dissipation in W
3 W 1 channel
marking
CE
bus current requirement
600 mA 1 channel
module format
Standard
Environment
product certifications
FM Class 1 Division 2
standards
UL 508
CUL
CSA C22.2 No 142
resistance to electrostatic discharge
4 kV contact IEC 801-2
8 kV on air IEC 801-2
resistance to electromagnetic fields
9.14 V/yd (10 V/m) 80…1000 MHz IEC 801-3
ambient air temperature for operation
32…140 °F (0…60 °C)
ambient air temperature for storage
-40…185 °F (-40…85 °C)
relative humidity
95 % without condensation
operating altitude
<= 5000 m
| range of product | Modicon Quantum automation platform |
|---|---|
| product or component type | RIO head-end adaptor module |
| product compatibility | Quantum 200/500/800 series Symax (any mix) |
|---|---|
| maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O |
| type of cable | 75 Ohm coaxial |
| transmission rate | 1544 Mbit/s |
| dynamic range | 35 dB |
| isolation voltage | 500 V DC coaxial center and ground |
| electrical connection | 1 female connector F, elbowed with single cable |
| diagnostics startup | Power up Memory check LAN controller check |
| power dissipation in W | 3 W 1 channel |
| marking | CE |
| bus current requirement | 600 mA 1 channel |
| module format | Standard |
| product certifications | FM Class 1 Division 2 |
|---|---|
| standards | UL 508 CUL CSA C22.2 No 142 |
| resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80…1000 MHz IEC 801-3 |
| ambient air temperature for operation | 32…140 °F (0…60 °C) |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| relative humidity | 95 % without condensation |
| operating altitude | <= 5000 m |
