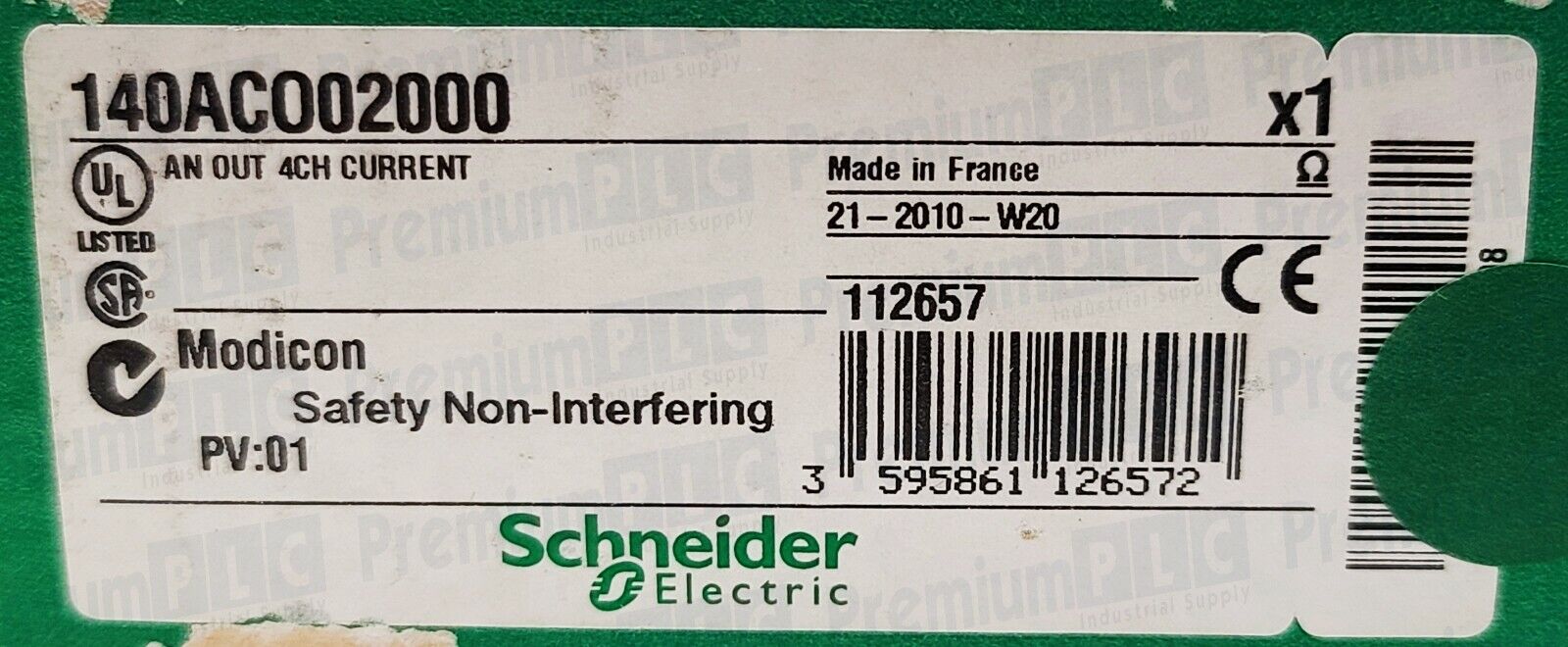

NEW SCHNEIDER 140ACO02000 MODICON QUANTUM ANALOG OUTPUT 4CH 140-ACO-020-00
$1,295.00
NEW SCHNEIDER 140ACO02000 MODICON QUANTUM ANALOG OUTPUT 4CH 140-ACO-020-00
PV: 01
ITEM IS NEW IN FACTORY BOX W/ 12 MONTH WARRANTY MAKE OFFER
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (WILL SHIP COLLECT ON UPS OR FEDEX ACCOUNTS)
Specifications
| range of product | Modicon Quantum automation platform |
|
|---|---|---|
| product or component type | Analogue output module |
| analogue output number | 4 |
|
|---|---|---|
| addressing requirement | 4 output words |
|
| loop voltage | 12…30 V DC |
|
| maximum voltage drop | <30 V 20 mA |
|
| analogue output range | 4...20 mA 0...4096 counts, 12 bits bipolar current |
|
| absolute accuracy error | +/- 0.20 % of full scale at 25 °C |
|
| linearity | +/- 1 LSB |
|
| accuracy drift according to temperature | +/- 0.004 % of full scale/°C +/- 0.007 % of full scale/°C maximum |
|
| isolation between channels | 500 V 47...63 Hz AC 750 V for 1 minute DC |
|
| update time | 3 ms |
|
| setting time | 900 µs to +/- 0.1 % of the final value |
|
| fault type | Open circuit 4...20 mA |
|
| bus current requirement | 480 mA |
|
| maximum power dissipation in W | 5.3 W |
|
| external power requirement | 12...30 V |
|
| marking | CE |
|
| local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 4 LEDs (green) for channel is turned on 4 LEDs (red) for channel fault |
|
| module format | Standard |
|
| net weight | 0.3 kg |
| product certifications | FM Class 1 Division 2 cUL |
|
|---|---|---|
| standards | CSA C22.2 No 142 UL 508 |
|
| resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
|
| ambient air temperature for operation | 0…60 °C |
|
| ambient air temperature for storage | -40…85 °C |
|
| relative humidity | 95 % without condensation |
|
| operating altitude | <= 5000 m |
