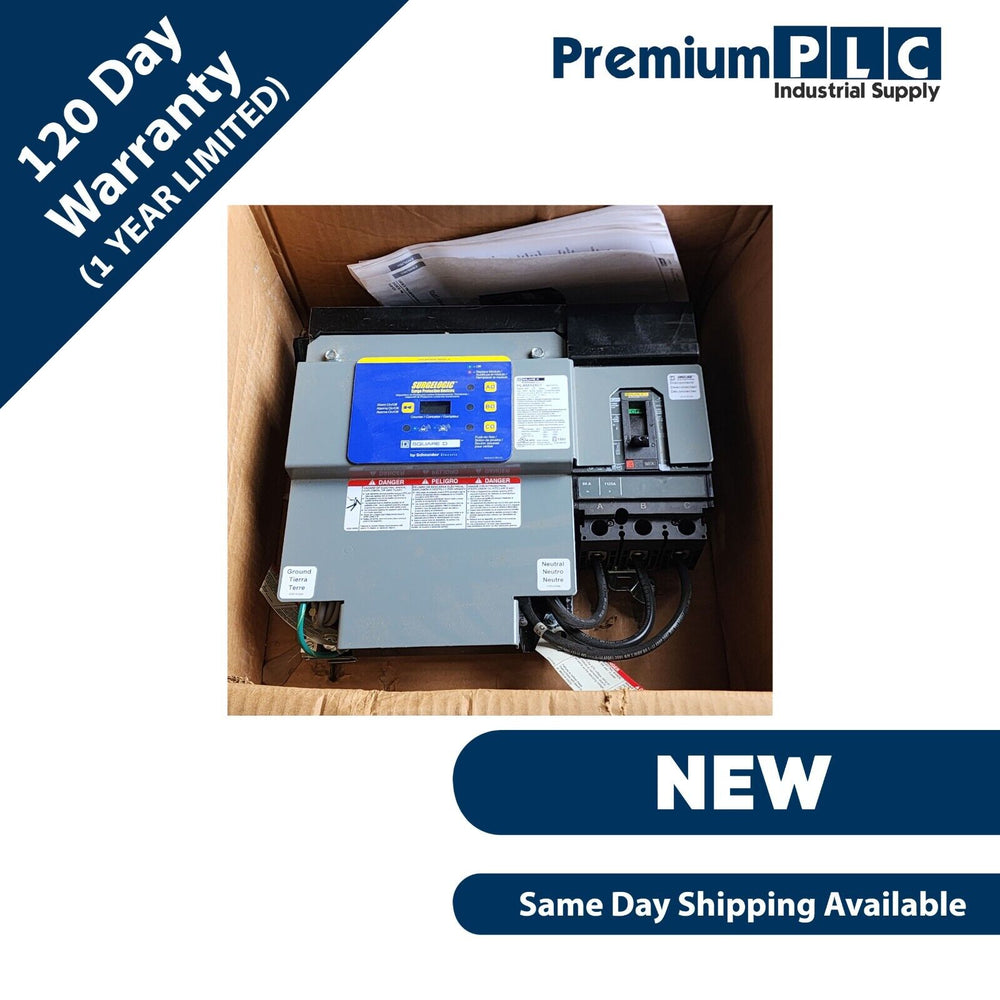

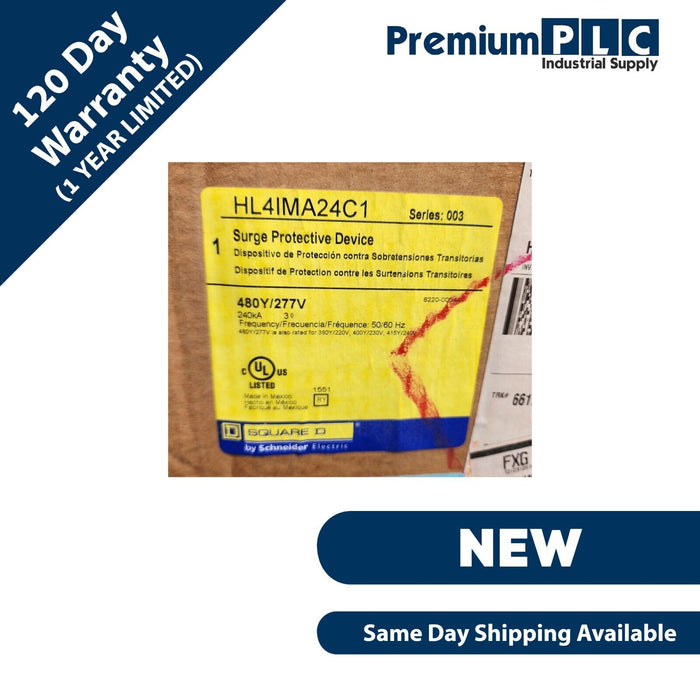

NEW SQUARE D HL4IMA24C1 SURGELOGIC SURGE PROTECTIVE DEVICE W/60 AMP BREAKER

NEW SQUARE D HL4IMA24C1 SURGELOGIC SURGE PROTECTIVE DEVICE W/60 AMP BREAKER

Name: NEW SQUARE D HL4IMA24C1 SURGELOGIC SURGE PROTECTIVE DEVICE W/60 AMP BREAKER
Brand: PremiumPLC
SKU: IF_7B4AABA1
Price: 8750.0 USD
Availability: OutOfStock

Sold out

$8,750.00

Quantity

NEW SQUARE D HL4IMA24C1 SURGELOGIC SURGE PROTECTIVE DEVICE W/60 AMP BREAKER

Specifications

Main
Product	Surge protection device
Range	Surgelogic
Device Short Name	IMA
Type	HL

Complementary
Voltage Rating	480Y/277 V AC
MCOV	320 V
SCCR	200 kA
Surge Current	240 kA
Rated Current	60 A
Breaking Capacity	50 kA
Number of Phases	3 phase
Max Number of Poles	3
Wiring Configuration	4-wire
Connection	I-Line line Lugs ground AWG 6 copper 35.40 lbf.in (4 N.m) Lugs neutral AWG 6 copper 35.40 lbf.in (4 N.m)
Trip Unit Technology	Thermal-magnetic
Local Signalling	Status LED green per phase normal operation Status LED red per phase fault
Provided Equipment	Alarm enable/disable switch Surge counter Circuit-breaker
Cable length	19.02 in (483 mm)
Mounting Support	Panel mounting
Height	12.16 in (308.9 mm)
Width	13.46 in (341.9 mm)
Depth	5.59 in (142.1 mm)

Environment
Enclosure Rating	NEMA 1
Standards	UL 1449:ed. 3 CSA C22.2 No 8:1986 UL 96A:ed. 12 UL 489:ed. 11 CSA C22.2 No 5-09

CONDITION: NEW OPEN BOX

WARRANTY: 120 DAYS

SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.

(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
