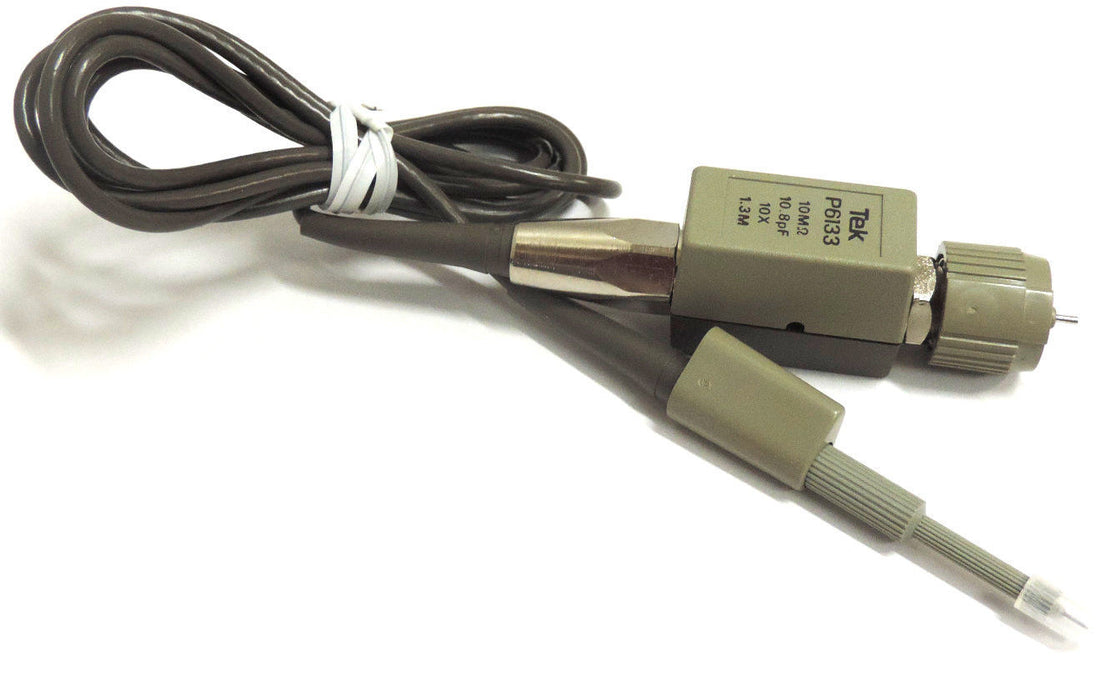

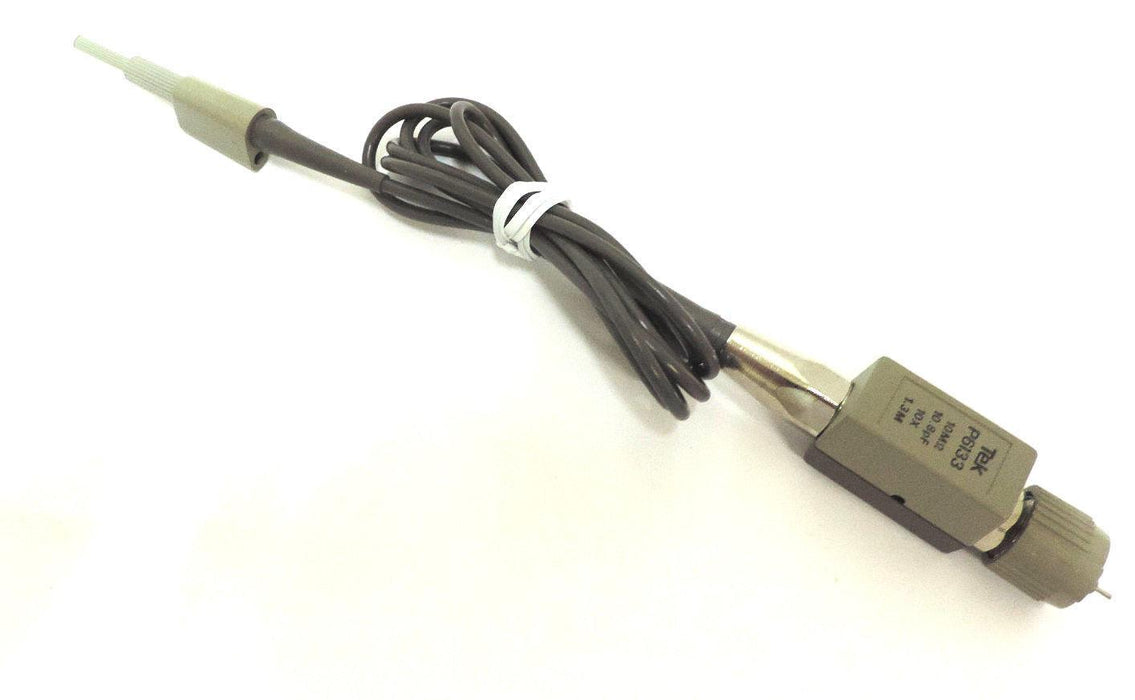

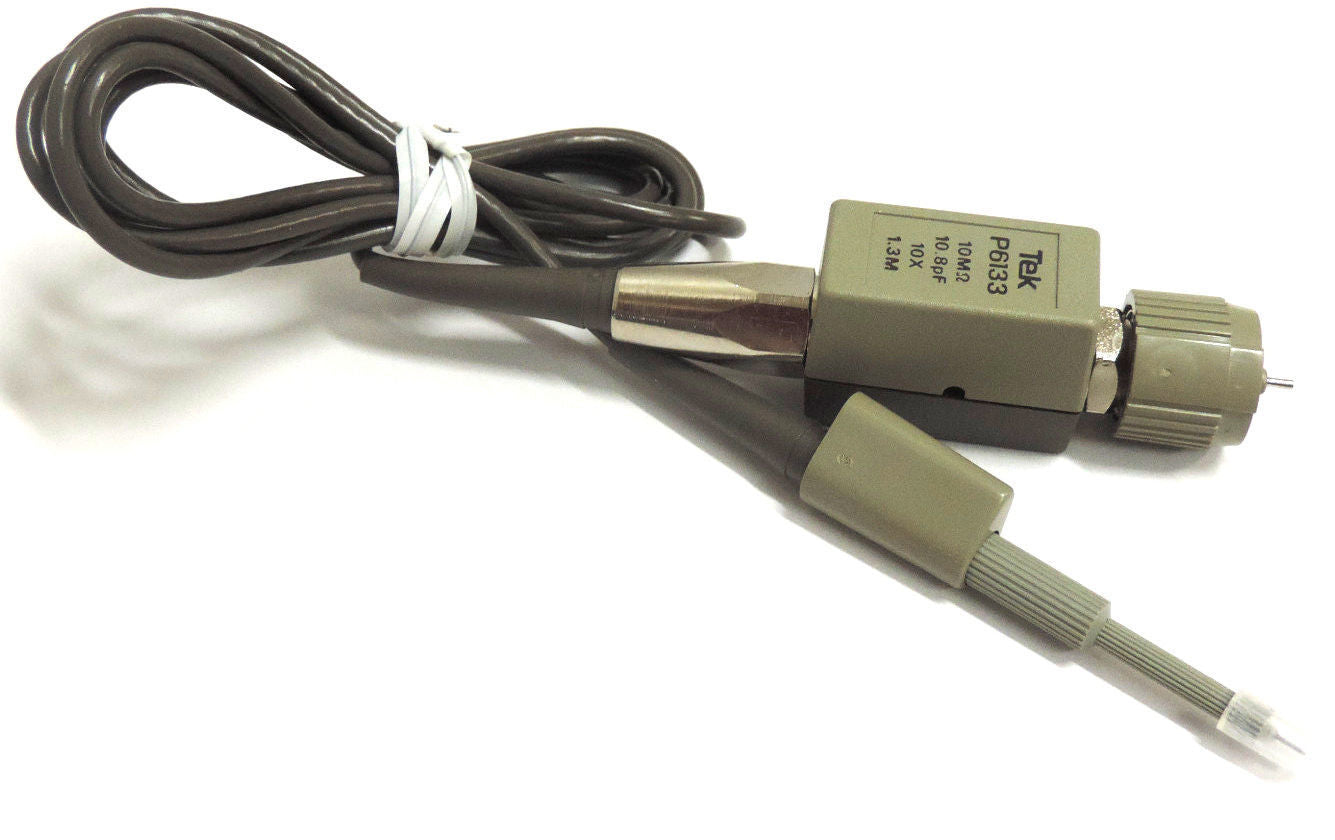

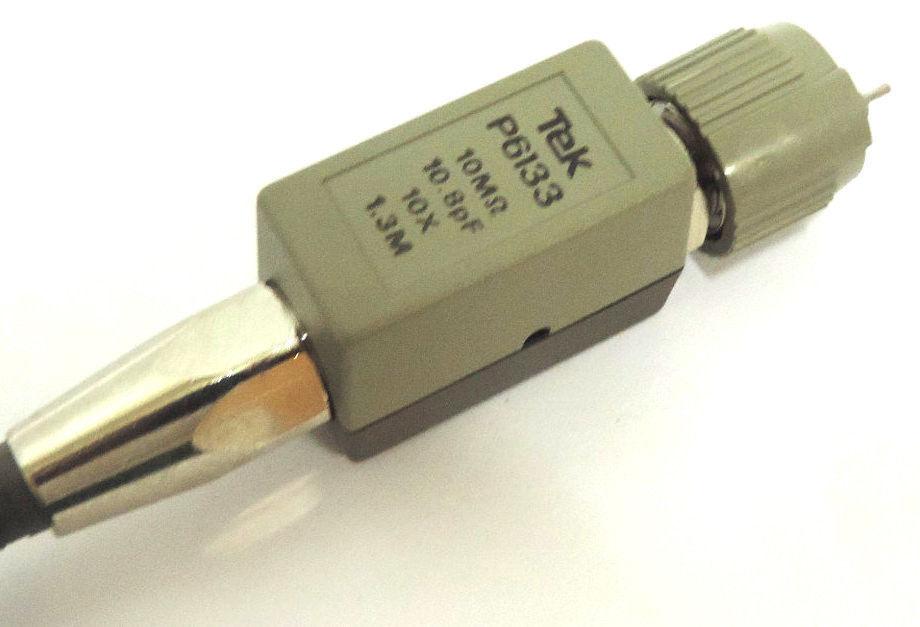

NEW TEKTRONIX TEK P6133 10M OHM 10.8 pF 10X 1.3M OSCILLOSCOPE PROBE

NEW TEKTRONIX TEK P6133 10M OHM 10.8 pF 10X 1.3M OSCILLOSCOPE PROBE

UNUSED SURPLUS ITEM IN GOOD WORKING CONDITION WITHOUT ORIGINAL PACKAGING

Tek P6133 150MHz 10X Scope Probe
10.8pf 1.3m

Tek P6133, 10X, 150 MHz Modular Subminiature Passive Voltage Oscilloscope Probe. Specs. 150MHz, 10 Meg Ohm, 13.5pF, 2.0M lead length.

Tektronix P6133 10x passive scope probe. This probe will work with any scope, not just Tektronix scopes.
Details

2 meter length

150 MHZ bandwidth

10X attenuation

10 to 25pF compensation range

12.7pF input capacitance

10Mohm input system resistance

150 VRMS CATII input voltage range

Features & Benefits

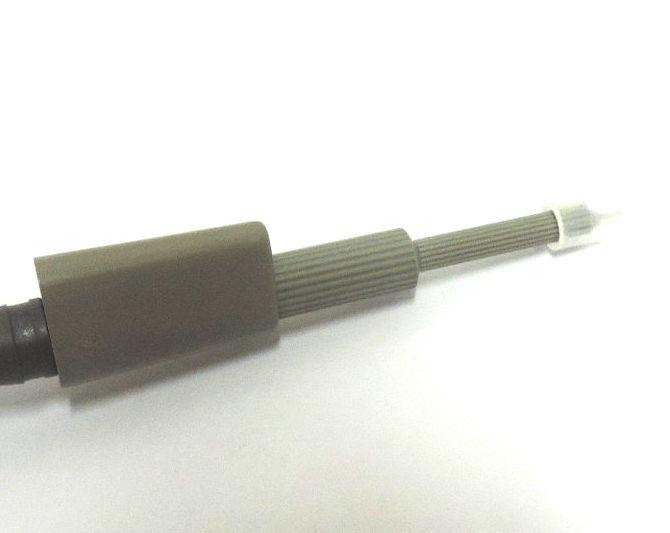

Small Geometry Tips - Easier Circuit Access

Readout for 10X Attenuation Factor - Reduces Confusion and Errors in Measurement Readings

Flexible Lightweight Cable - Easier to Use and Reduces Mechanical Stress to Device Under Test

HYBRID/SMT Circuitry - Provides Improved Performance and Reliability

Modularity - Provides Lower Cost of Ownership

Compact Size Accessories - Provides Compatibility with Existing Adapters

UL3111-2-031, CSA1010.2.032, EN61010-2-031
============================================================================
Tektronix P6133 Probe

Specifications:

Length - 1.3m
Form Factor - Probe
Instrument application - Oscilloscope
Measurement Parameter - Voltage
Probe type - Passive
Minimum Frequency - 0 Hz
Maximum Frequency - 150 MHz
Attenuation - x10 dB
Input Impedance - 10 MOhm
Input Capacitance - 10.8 pF
Maximum Input Voltage - 500 V(dc+p
Minimum Compensation - 10 pF
Maximum Compensation - 25 pF
Tip/Head Style - 2.5mm Sub
Cable Length - 200 cm
Connector type (main signal) - BNC(f)

"The P613X family of oscilloscope probes sets the standard for high performance passive voltage probes. Continued growth of the family paces Tektronix' new series of high performance bench top oscilloscopes, the TDS 500/600/700/3000 Series and high performance portable oscilloscopes and the TDS 400 Series.

These probes feature modular construction, HYBRID/SMT circuitry, a smaller probe head/cable assembly than traditional passive probes, 10X attenuation readout encoding and a full complement of attachment accessories. Smaller probe tips and lightweight cable assemblies allow easy negotiation of dense circuitry or tight spaces."
