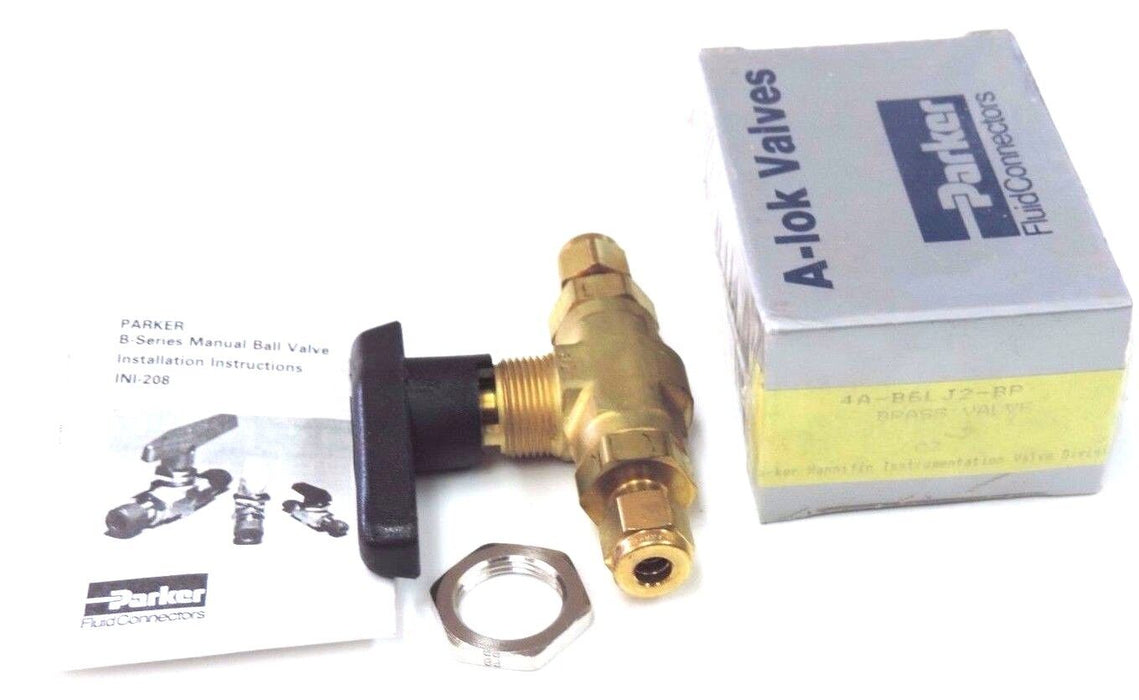

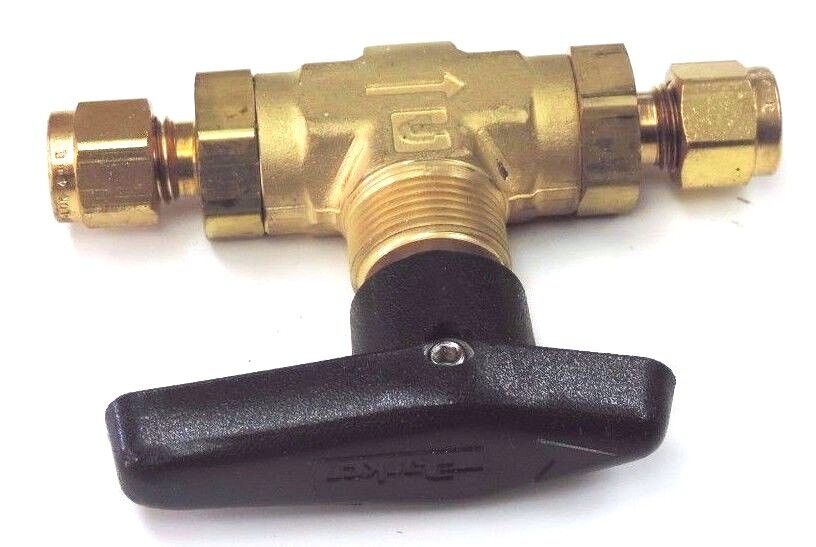

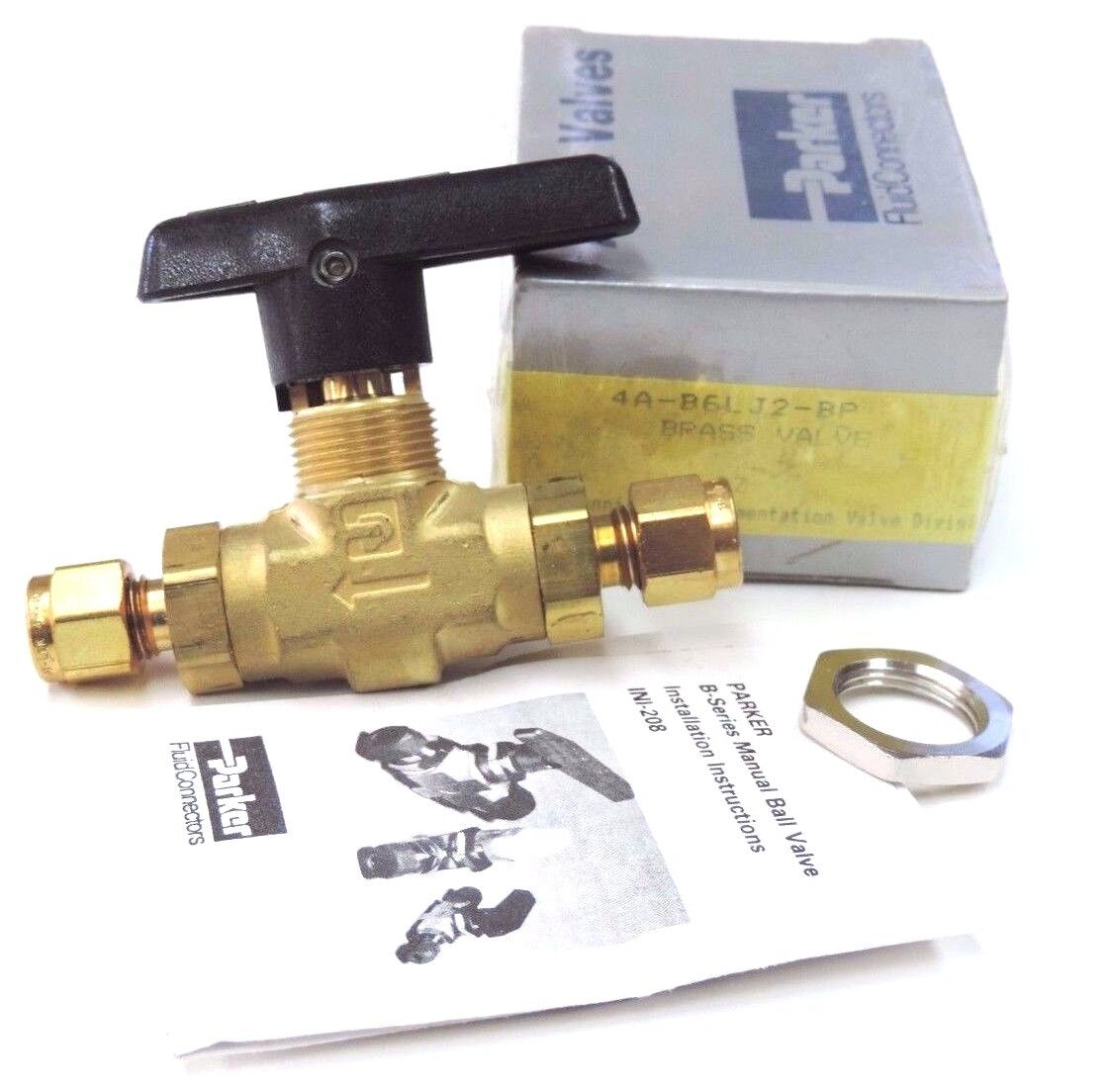

NIB PARKER 4A-B6LJ2-BP 1/4" TWO-WAY B SERIES BRASS BALL VALVE 4AB6LJ2BP
$72.50
NIB PARKER 4A-B6LJ2-BP 1/4" TWO-WAY B SERIES BALL VALVE 4AB6LJ2BP
- Body Material: BP - Brass
- Port: 4A - 1/4" A-LOK
- Dimensions G Inches (mm): 1.88 (47.8)
- Seal Material: Blank - PTFE
- Dimensions C Inches (mm): 0.33 (8.4)
- Dimensions H Inches (mm): 0.58 (14.7)
- Dimensions I Inches (mm): 0.13 (3.3)
- Dimensions D Inches (mm): 0.33 (8.4)
- Dimensions E Inches (mm): 0.94 (23.9)
- Dimensions F Inches (mm): 0.75 (19.1)
- Flow Data Cv: 0.93
- Flow Data XT: 0.43
- Flow Data Orifice Inch: 0.165
- Flow Data Orifice mm: 4.2
- Dimensions B inch (mm): 1.48 (37.6)
- Dimensions A Inches (mm): 1.48 (37.6)
- Seat Material: J2 - PCTFE
- Valve Series: B6L
- Colored Lever Handles: Black = Standard
- Pressure Ratings CWP: 3000 psig (207 bar)
- Pressure Ratings with PTFE Seats: 1500 psig (103 bar)
