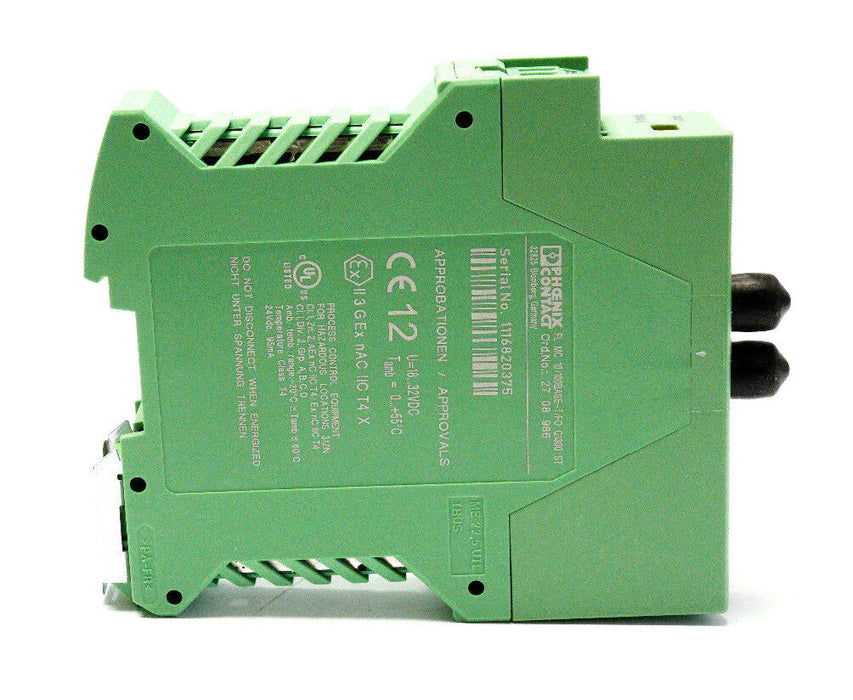

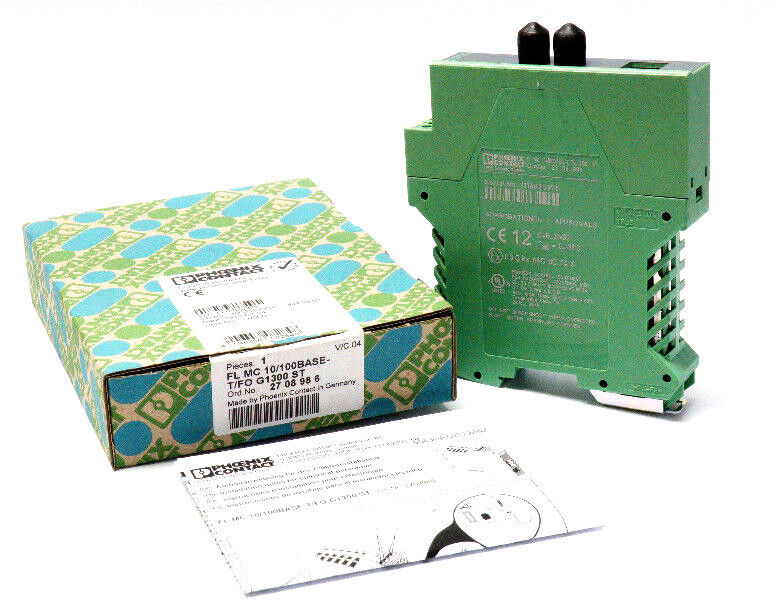

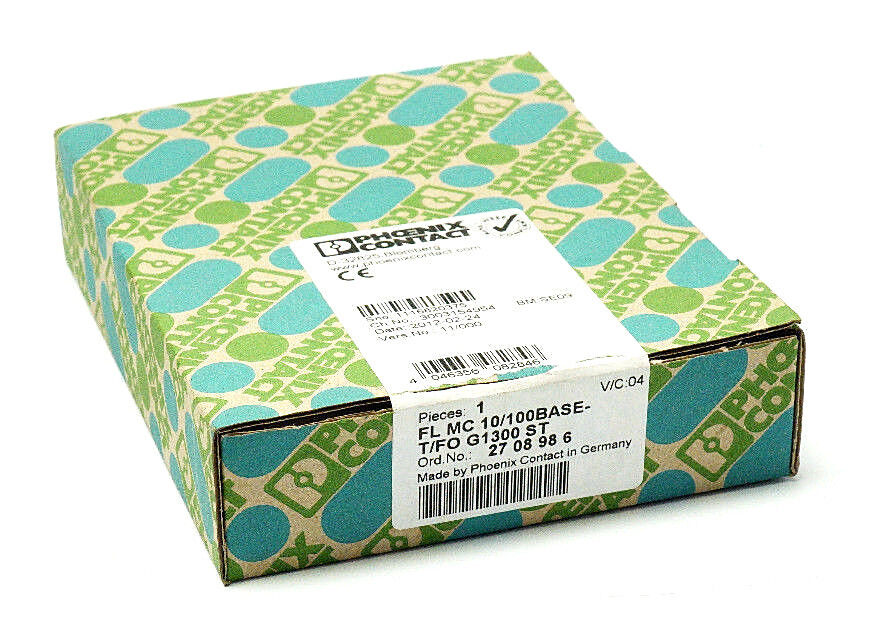

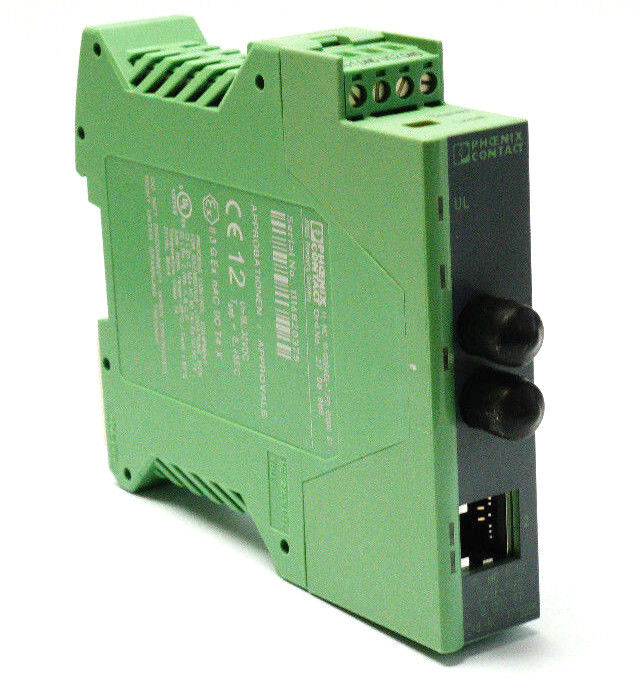

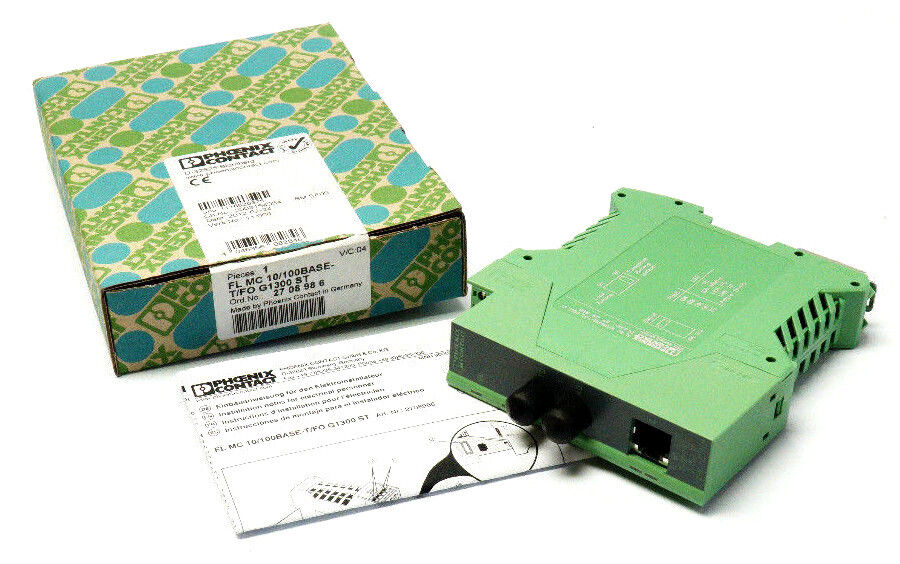

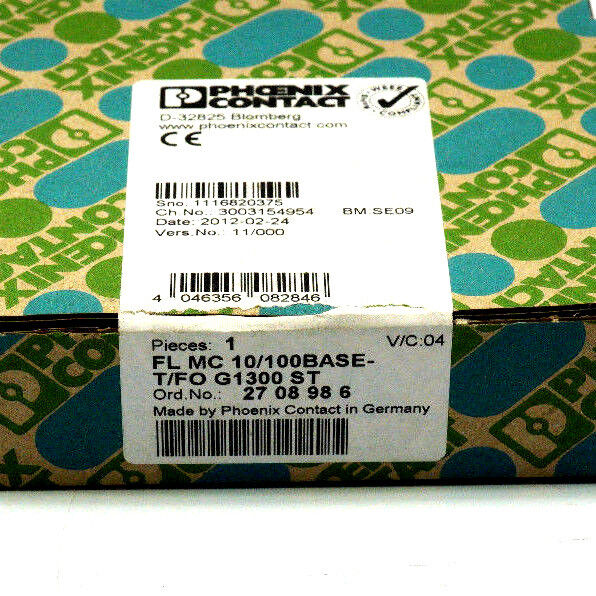

NIB PHOENIX CONTACT FL MC 10/100BASE-T/FO G1300 ST - 2708986 FO CONVERTER V/C 04
$625.00
NIB PHOENIX CONTACT FL MC 10/100BASE-T/FO G1300 ST - 2708986 FO CONVERTER V/C 04
FOR ANY FURTHER QUESTIONS CALL 810-531-0356 OR 810-531-6228
Dimensions
| Width | 22.5 mm |
|---|---|
| Height | 99 mm |
| Depth | 123 mm |
Ambient conditions
| Ambient temperature (operation) | 0 °C ... 55 °C |
|---|---|
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
General
| Electrical isolation | VCC // Ethernet |
|---|---|
| Test voltage data interface/power supply | 1500 V |
| 1.5 kVrms (50 Hz, 1 min.) | |
| Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
| Noise emission | EN 50081-2 |
| Net weight | 171.7 g |
| Housing material | PA V0 |
| Color | green |
| MTBF | 573 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| 138 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | |

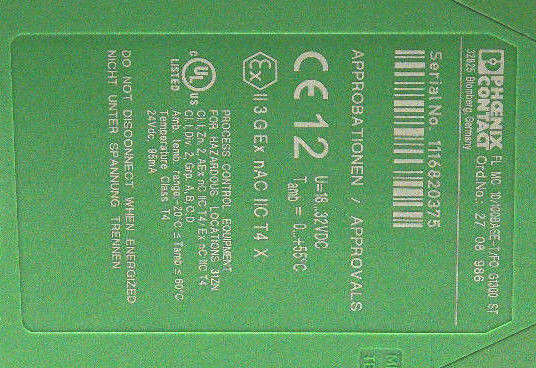

| ATEX | II 3 G Ex nAC IIC T4 X (Please follow the special installation instructions in the documentation!) |
| UL, USA/Canada | Class I, zone 2, AEx nc IIC |
Power supply
| Nominal supply voltage | 24 V DC ±20 % (via pluggable COMBICON screw terminal block) |
|---|---|
| 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply) | |
| Typical current consumption | ≤ 95 mA (24 V DC) |
| Protective circuit | Reverse polarity protection |
| Connection method | Plug-in screw terminal block (COMBICON), redundancy possible |
Serial interface
| Interface 1 | Ethernet interface, 10/100BASE-T(X) in acc. with IEEE 802.3u |
|---|---|
| Connection method | RJ45 socket, shielded |
| Transmission medium | Copper |
| Transmission length | 100 m (shielded twisted pair) |

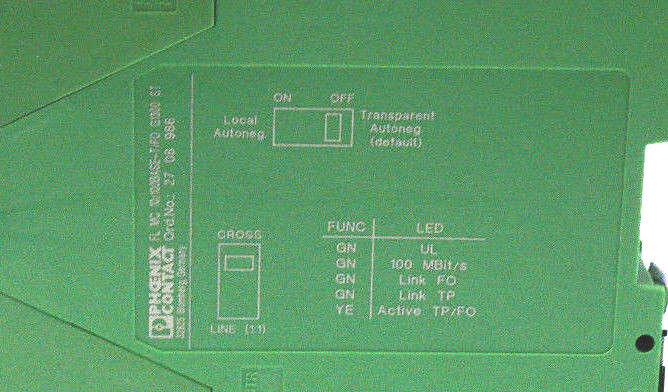

| Auto-negotiation modes | Optionally transparent via TP and FO (default) or locally on TP |
| Link through | Link down is automatically forwarded to the second connection |
| MDI-/MDI-X switchover | Built-in switch for line (1:1) and crossover connection |
| Signal LEDs | Activity (yellow), Link status (green), 100 Mbps (green) |
| Serial transmission speed | 10/100 Mbps |
Optical interface FO
| Transmit capacity, minimum | min. -23.5 dBm ((50/125 µm) dynamic in link mode (average)) |
|---|---|
| min. -20 dBm ((62,5/125 µm) dynamic in link mode (average)) | |
| min. -20.5 dBm ((50/125 µm) static) | |
| min. -17 dBm ((62,5/125 µm) static) | |
| Transmit capacity, maximum | max. -14 dBm ((50/125 µm) dynamic in link mode (average)) |
| max. -14 dBm ((62,5/125 µm) dynamic in link mode (average)) | |
| max. -11 dBm ((50/125 µm) static) | |
| max. -11 dBm ((62,5/125 µm) static) | |
| Minimum receiver sensitivity | min. -31 dBm (dynamic in link mode (average)) |
| min. -28 dBm (static) | |
| Wavelength | 1300 nm |
| Transmission length incl. 3 dB system reserve | 6.4 km (with F-G 50/125 0,7 dB/km F 1200) |
| 2.8 km (with F-G 50/125 1,6 dB/km F 800) | |
| 10 km (with F-G 62,5/125 0,7 dB/km F 1000) | |
| 3 km (with F-G 62.5/125 2.6 dB/km F 600) | |
| 2 km (with 2GK200/230 GI-HCS) | |
| Transmission medium | Multi-mode fiberglass |
| GI-HCS fiber | |
| Connection method | B-FOC (ST) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
|---|---|
| Noise emission | EN 50081-2 |
| Noise immunity | EN 61000-6-2:2005 |
| ATEX | II 3 G Ex nAC IIC T4 X |
| UL, USA/Canada | Class I, zone 2, AEx nc IIC |
