Description

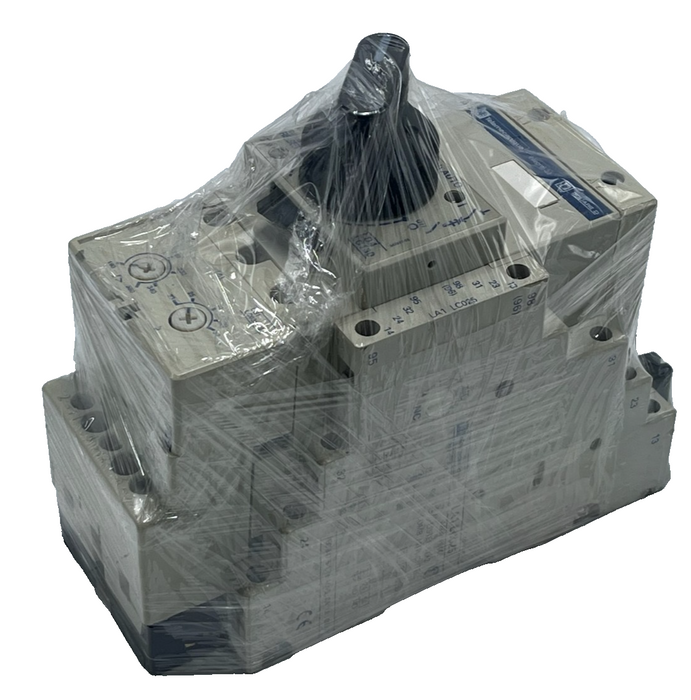

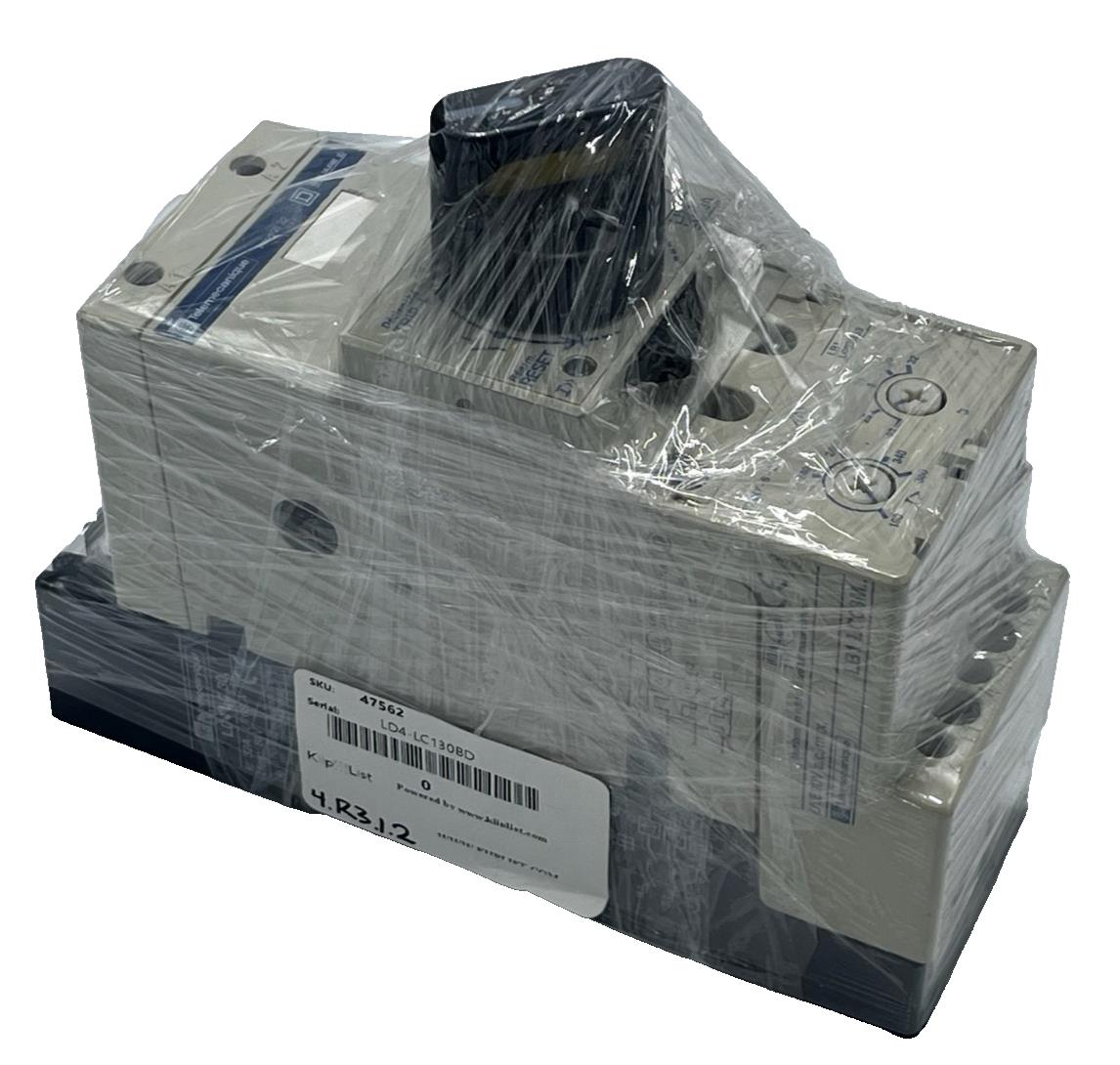

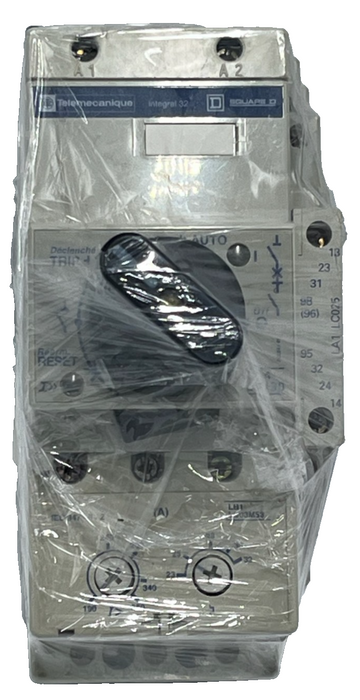

Product Overview This is a complete, self-protected Combination Motor Controller assembly. It integrates the power base, thermal-magnetic protection, and signaling contacts into a single compact footprint. This unit is optimized for 24V DC control systems, commonly used in modern automation and safety-rated circuits.

Included Components

• LD4-LC130BD Power Base: The 32A power switching heart of the system with a 24V DC coil.

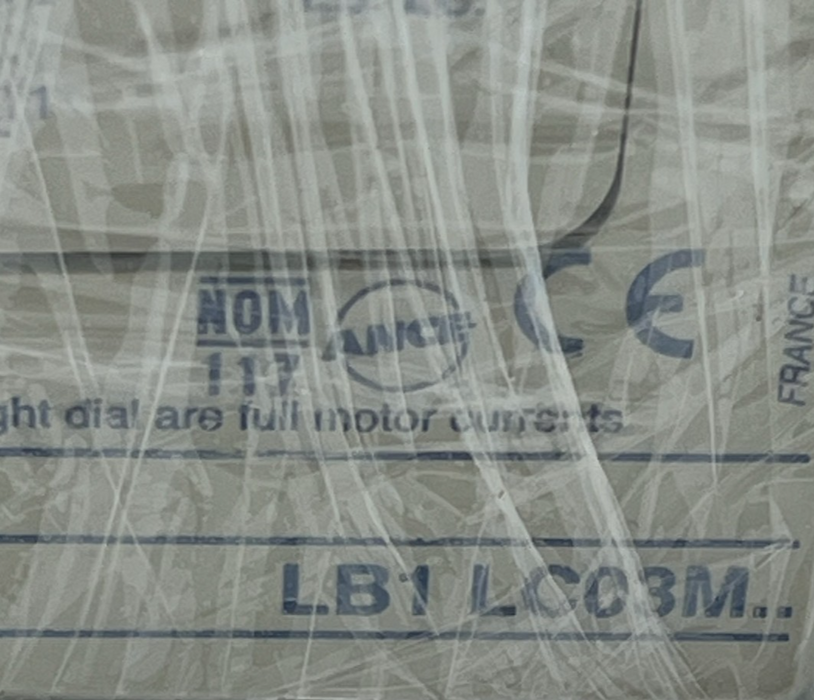

• LB1-LC03M22 Overload: A thermal-magnetic module adjustable from 16.0 to 25.0 Amps. It provides essential motor protection against overloads and phase loss.

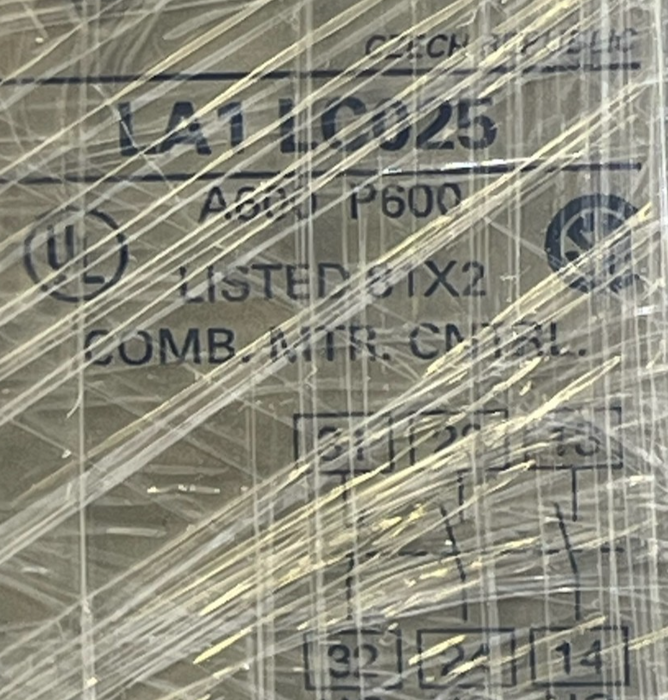

• LA1-LC025 Auxiliary Contact: Side-mounted block providing 2 NO (Normally Open) and 2 NC (Normally Closed) contacts. Ideal for running status lamps, PLC inputs, or hardwired interlocks.

Key Technical Features

• Type 2 Coordination: Designed to ensure that after a short-circuit fault, the starter is immediately ready for service without parts replacement.

• Padlockable Handle: The integrated black knob allows for secure Lockout/Tagout (LOTO) in the "OFF" position.

• Finger-Safe Terminals: Designed to prevent accidental contact with live parts, conforming to IP20 standards.
