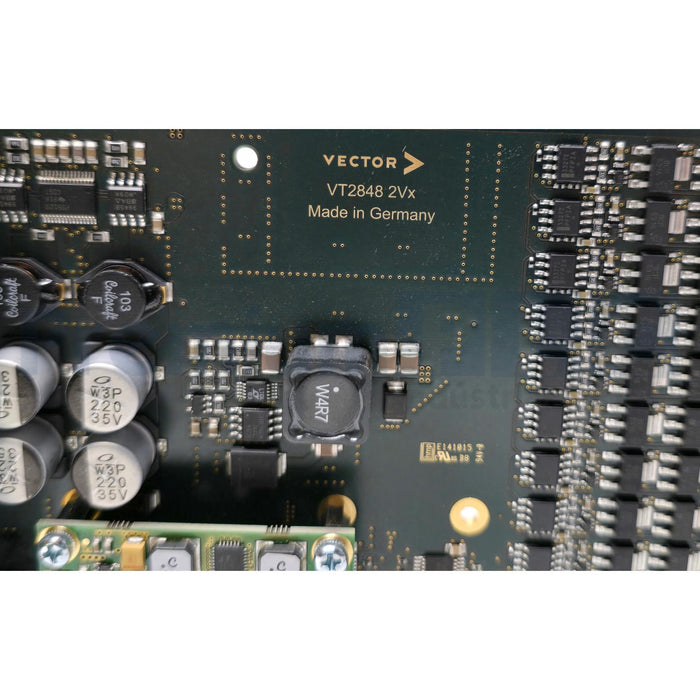

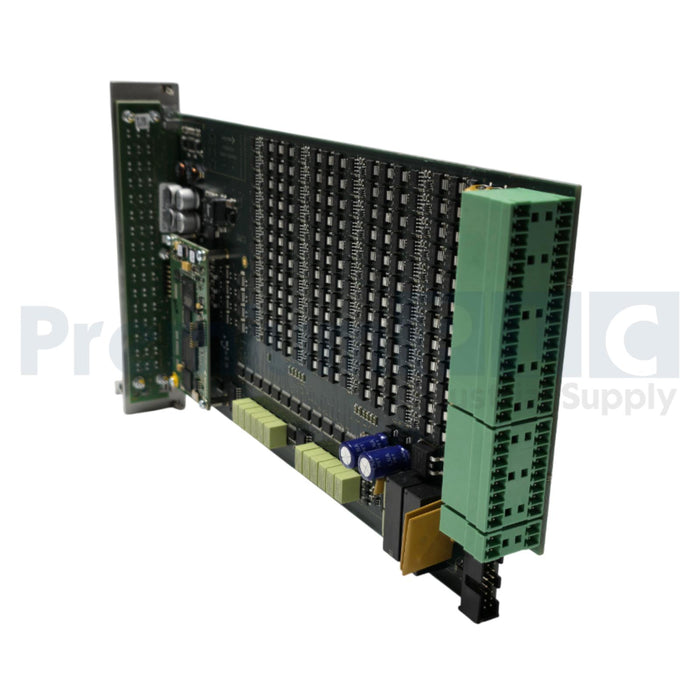

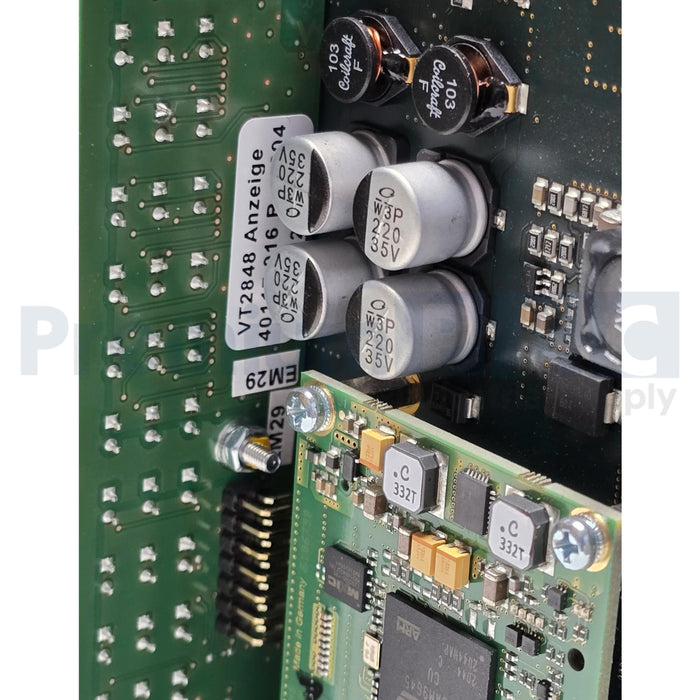

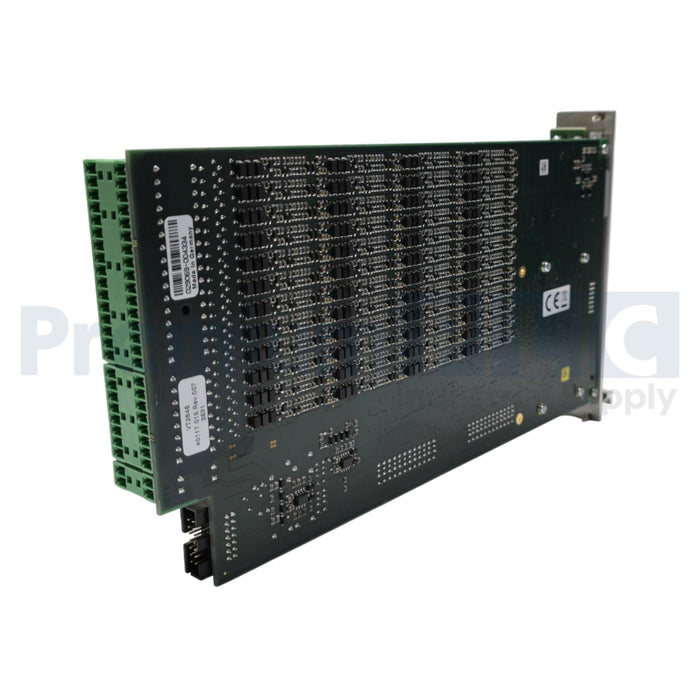

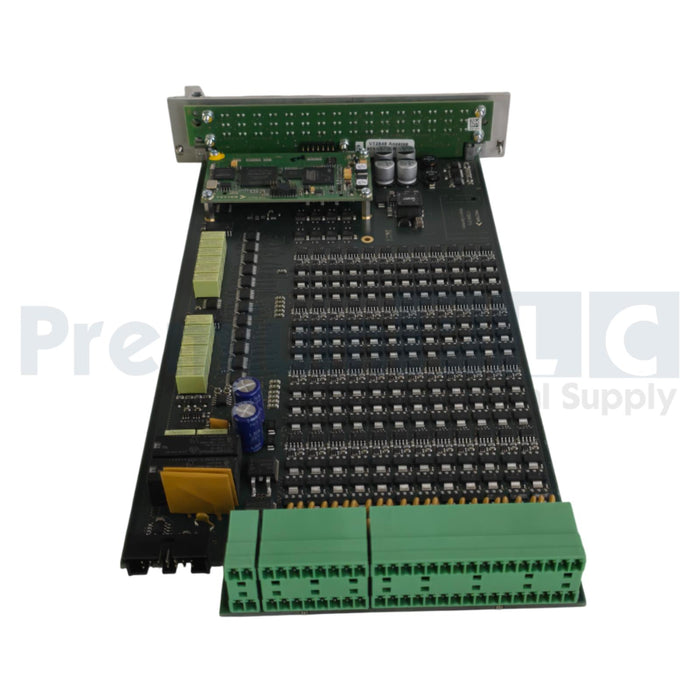

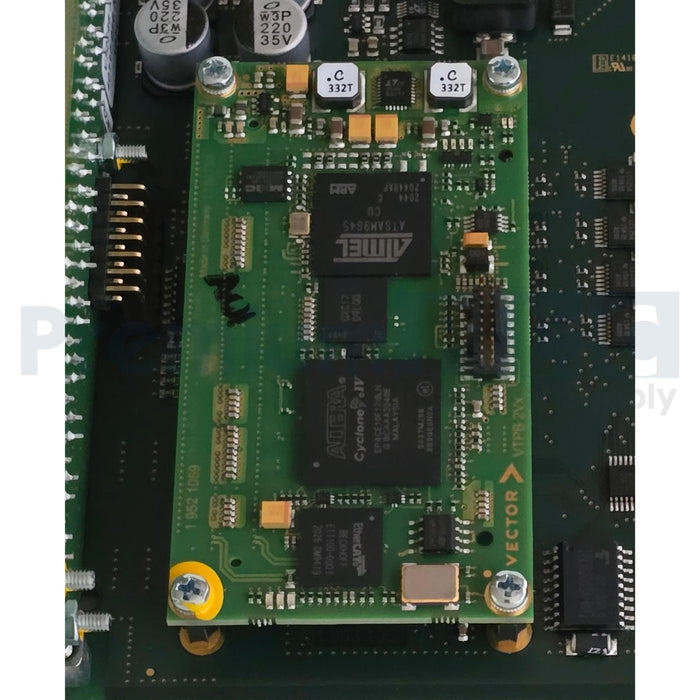

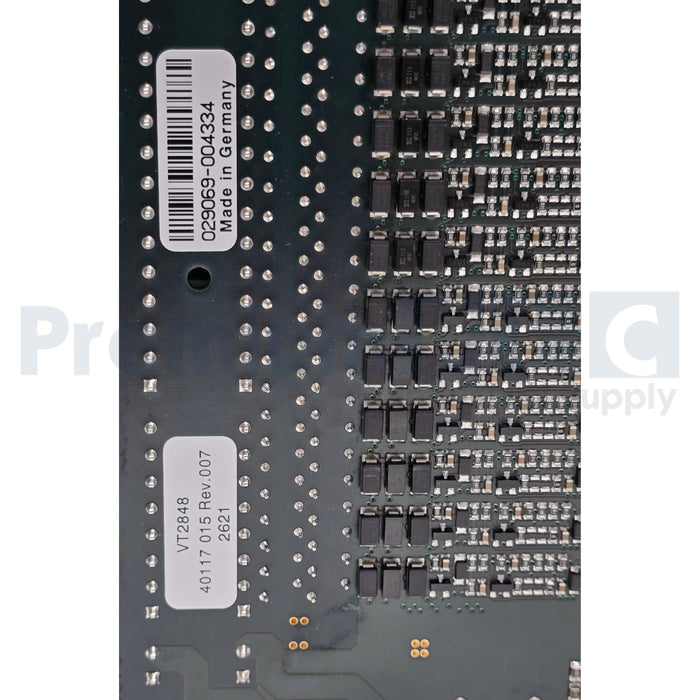

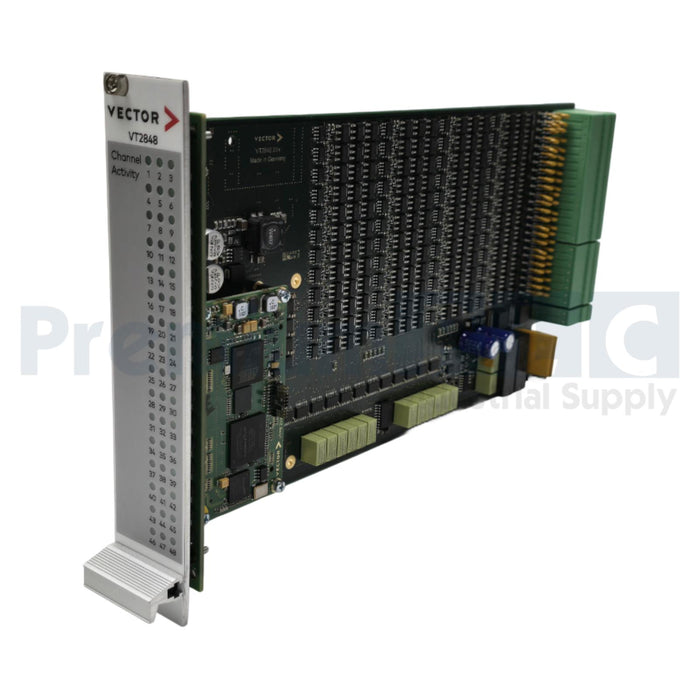

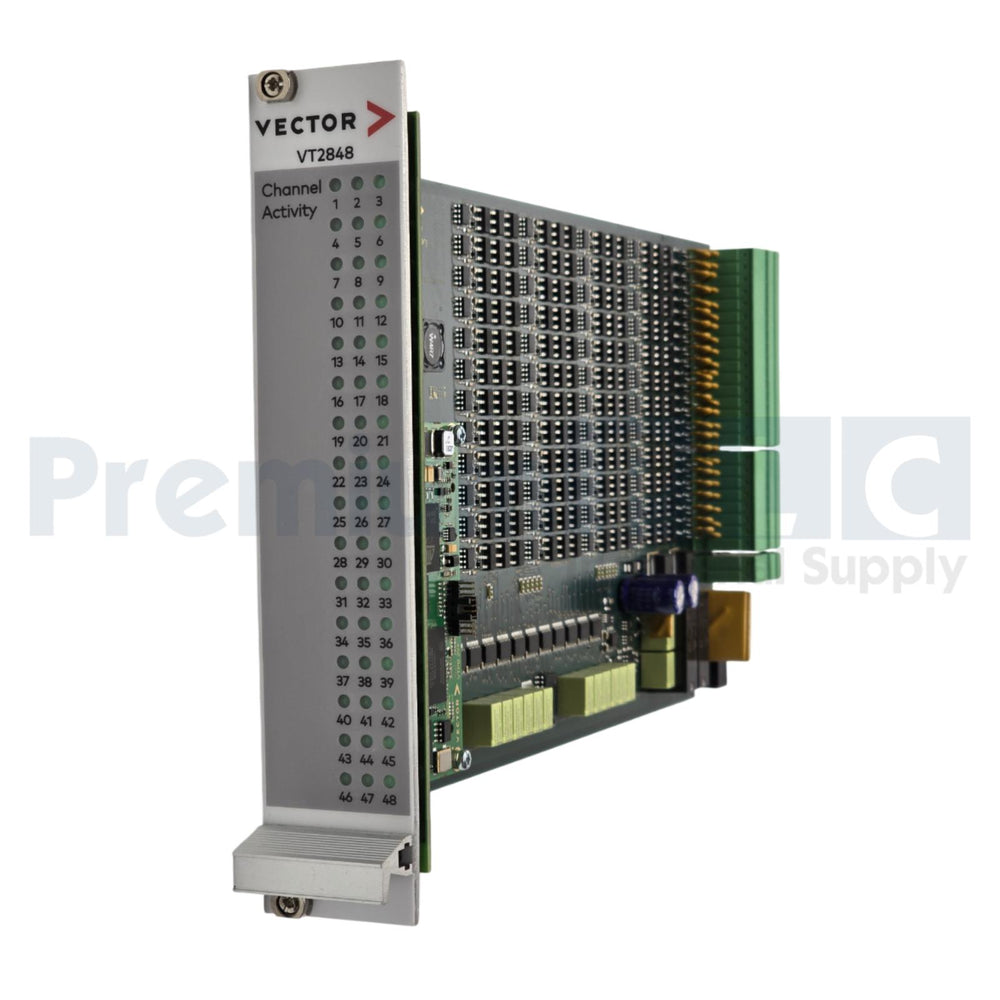

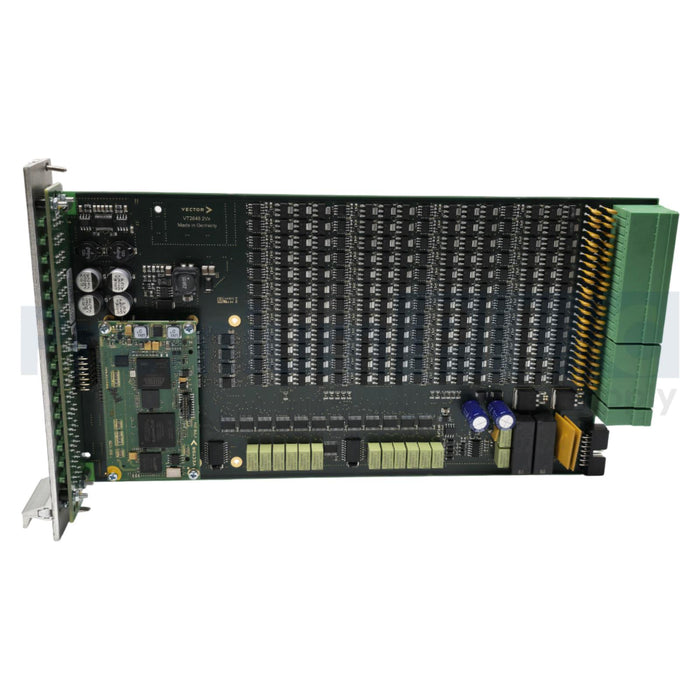

VECTOR VT2848 DIGITAL I/O MODULE 48-IN OR OUT FOR VT SYSTEM HIL TESTING NSNP
$2,450.00
VECTOR VT2848 DIGITAL I/O MODULE 48-IN OR OUT FOR VT SYSTEM HIL TESTING NSNP
The module VT2848 provides 48 inputs or outputs for digital signals. They may be connected directly to the inputs or outputs of an ECU. Also, other digital signals can be measured or controlled using this module, e.g. to control additional parts of a test bench.
Technical Data:
| VT2848 | ||
| Input of digital signals | ||
| Input voltage | 0 V … 60 V | |
| Input impedance | Approx. 200 kΩ | |
| Threshold | 0 … 40 V | |
| Hysteresis | Approx. 0.2 V | |
| Sampling interval | 50 µs | |
| PMW frequency (PWM measurement) | 20 mHz … 500 kHz | |
| Output of digital signals | ||
| Supply voltage Vbatt / Vext | 2 … 60 V | |
| Input current at Vbatt / Vext | Max. 7 A | |
| Output Low | ||
| – Output voltage (at -20 mA) | Max. 0.2 V | |
| – Output current | -200 … 0 mA | |
| Output High | ||
| – Output voltage (at 20 mA) | Min. Vbatt/Vext -0.9 V | |
| – Output current | 0 … 200 mA | |
| Length of bit stream | 2 … 4,096 Bit | |
| Output interval (at Vbatt / Vext ≤ 24 V) | 5 μs … 65 ms | |
| Frequency of generated PWM signal | ||
| – at Vbatt/ext ≤ 60V | 20 mHz … 10 kHz | |
| – at Vbatt/ext ≤ 12V | 20 mHz … 200 kHz | |
| Basic Data | ||
| Supply voltage (via backplane) | 12 V ±10% | |
| Power consumption | Typ. 5.8 W | |
| Temperature range | 0 … 55 °C | |
| Dimensions (L x W x H) | 300 x 173 x 36 mm | |
| Weight | Approx. 460 g | |
| Maintenance | ||
| Calibration recommended | every 12 months | |
| Accredited (pre/re) calibration according to | ISO/IEC 17025:2017 | |
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM). WITH MINOR SHELF WEAR.
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
